Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PowerFlex 4 |

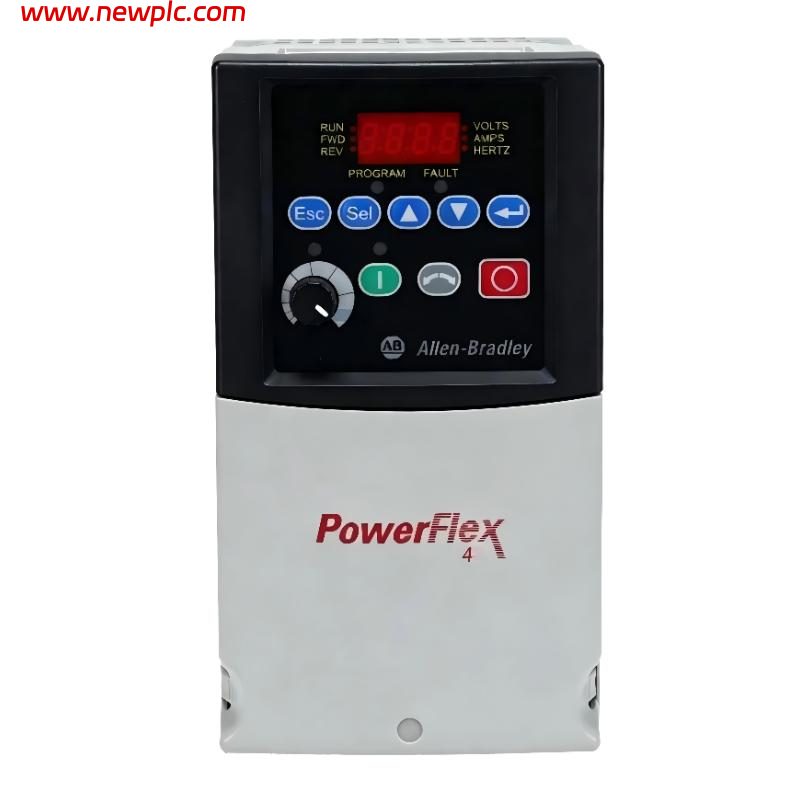

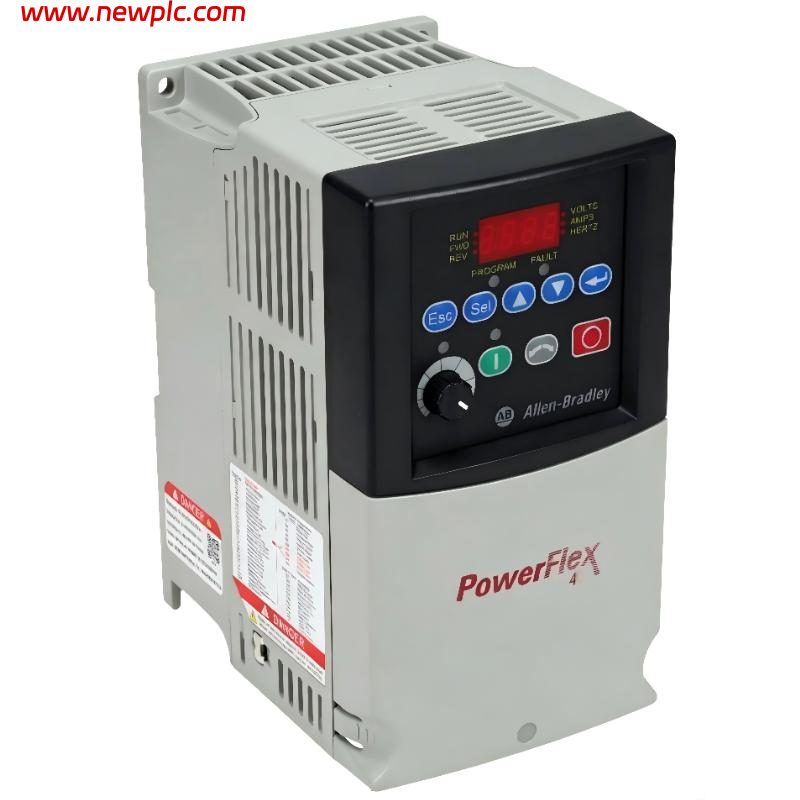

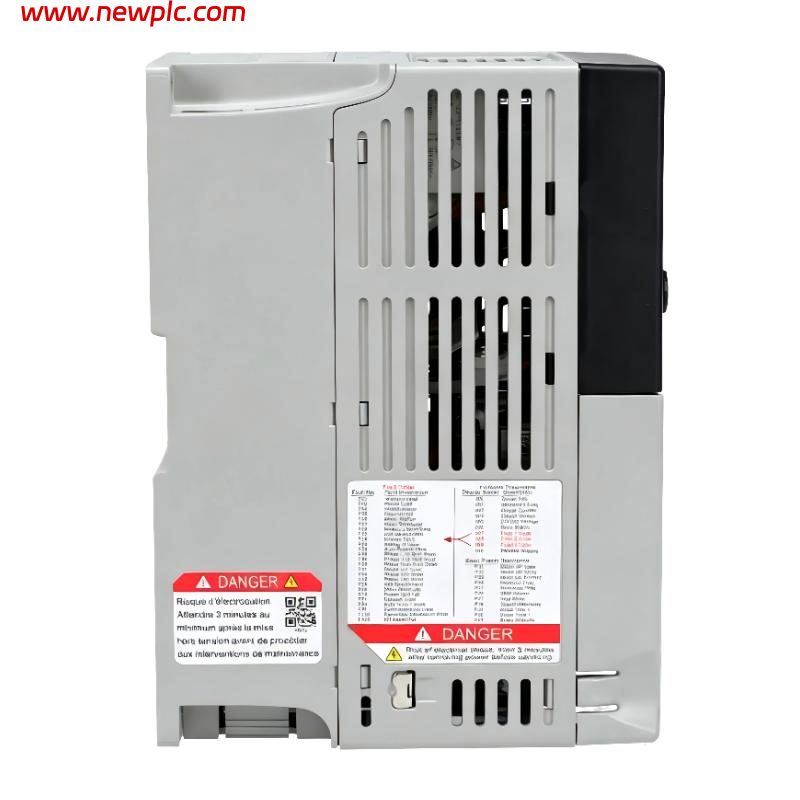

| Model Number | 22A-B017N104 |
| Product Type | AC Variable Frequency Drive (VFD) |
| Drive Function | Adjustable Frequency AC Motor Drive |
| Input Voltage | 200…240V AC |
| Nominal Voltage Class | 240V Class |
| Input Phase | 3-Phase |
| Output Voltage | 0…230V AC |
| Output Phase | 3-Phase |
| Rated Output Current | 17.5 A |
| Power Rating | 3.7 kW / 5 HP |
| Input Frequency | 50…60 Hz |
| Output Frequency Range | 0…400 Hz |
| Enclosure Rating | IP20 / UL NEMA Type Open |
| Frame Size | Frame B |
| Integrated Keypad | Fixed Integral LED Keypad |
| Display Type | 4-digit LED Display |
| Communication Interface | RS-485 (DSI Protocol) |
| Control Methods | V/Hz Control, Sensorless Vector Control |
| Embedded Brake Transistor | Yes (Brake IGBT Included) |
| EMC Filter | No CE-compliant Filter |

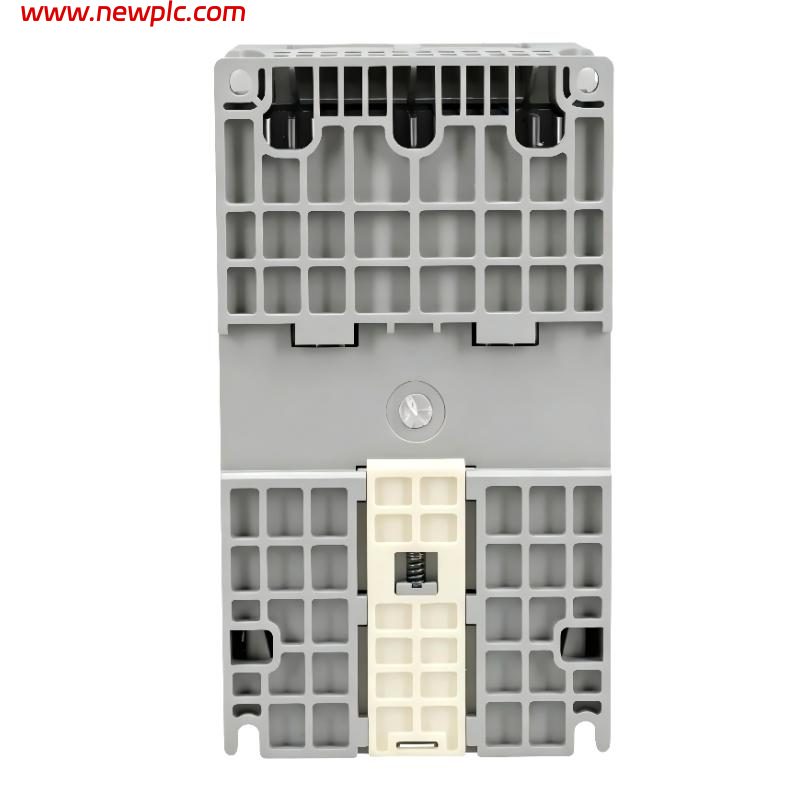

| Mounting Type | Panel Mount / DIN Rail |
| Cooling Method | Forced Air Cooling |
| Protection Features | Overcurrent, Overvoltage, Undervoltage, Ground Fault, Motor Overload |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 0% to 95% Non-Condensing |
| Certifications | UL, CE, C-Tick, cUL, KC |
| Lifecycle Status | Discontinued (Replacement: 25A-B017N104) |
| Actual Dimensions (H × W × D) | Approx. 190 × 100 × 180 mm |
| Actual Weight | Approx. 1.4 kg |
| Typical Applications | Conveyors, Pumps, Fans, Mixers, Packaging Equipment, OEM Machinery |
FAQ
FAQ
Q1: What is the Allen-Bradley 22A-B017N104 used for?
A1: The 22A-B017N104 is a PowerFlex 4 AC drive used for variable speed control of three-phase AC motors in industrial automation applications.
Q2: What is the power rating of the 22A-B017N104?
A2: The drive is rated for 3.7 kW (5 HP) with a rated output current of 17.5 A.
Q3: What input power does the 22A-B017N104 require?
A3: The drive operates on 200…240V AC three-phase input power.
Q4: Does the 22A-B017N104 include a brake transistor?
A4: Yes. The drive includes an integrated Brake IGBT for dynamic braking applications.
Q5: What communication interface is available on the 22A-B017N104?
A5: The drive includes an integrated RS-485 communication interface using the DSI protocol.
Q6: What are the actual dimensions and weight of the 22A-B017N104?
A6: The approximate dimensions are 190 × 100 × 180 mm (H × W × D) and the approximate weight is 1.4 kg.
Q7: Is the 22A-B017N104 still active?
A7: No. Rockwell Automation announced the product discontinuation effective June 30, 2025. The recommended replacement is 25A-B017N104.
Q8: What are common applications for the 22A-B017N104?
A8: Common applications include conveyors, pumps, fans, mixers, packaging machines, and general-purpose industrial motor control systems.
