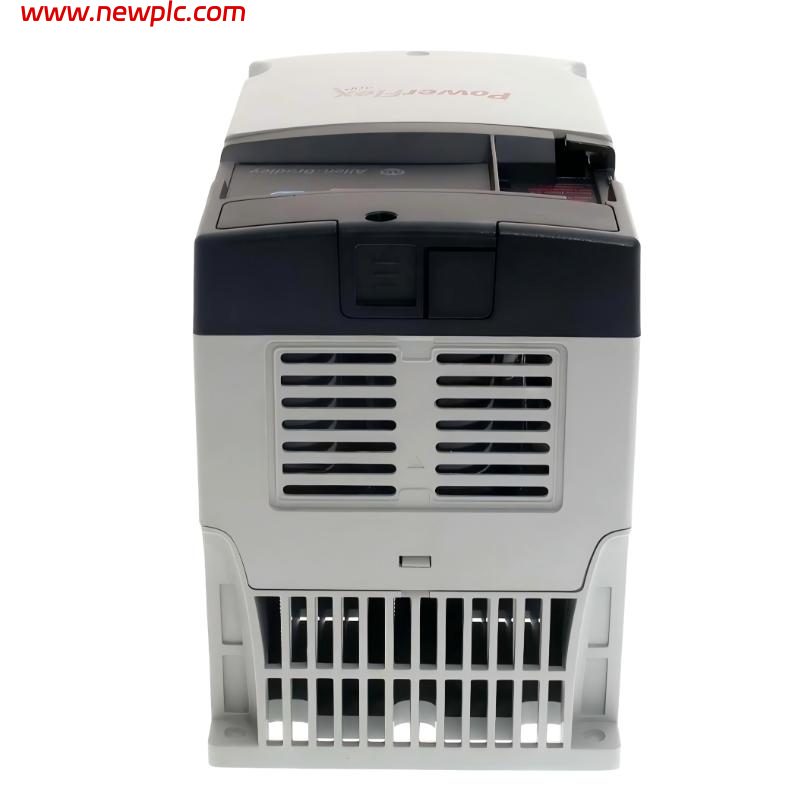

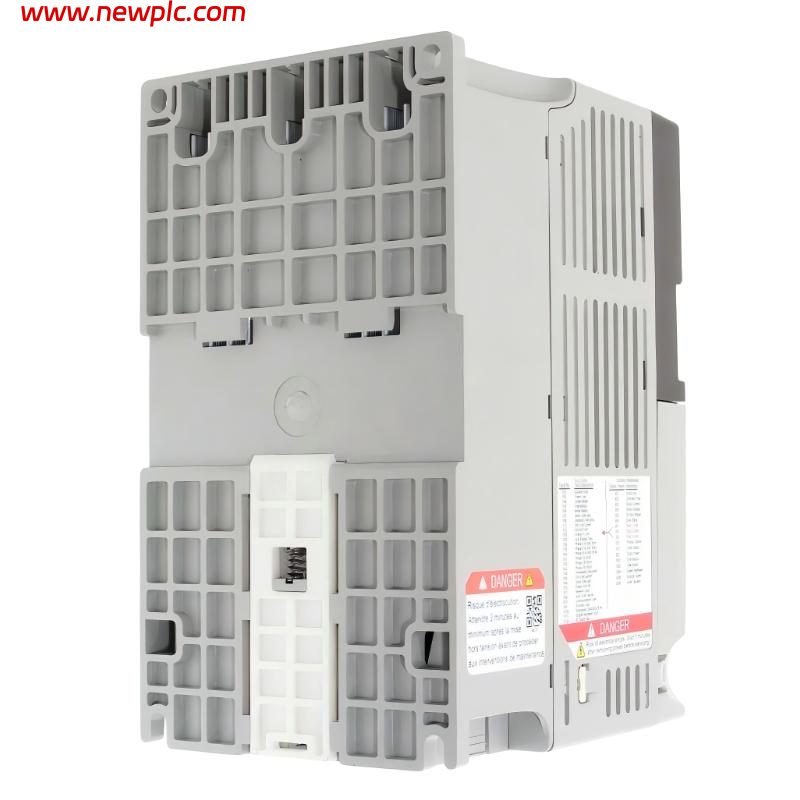

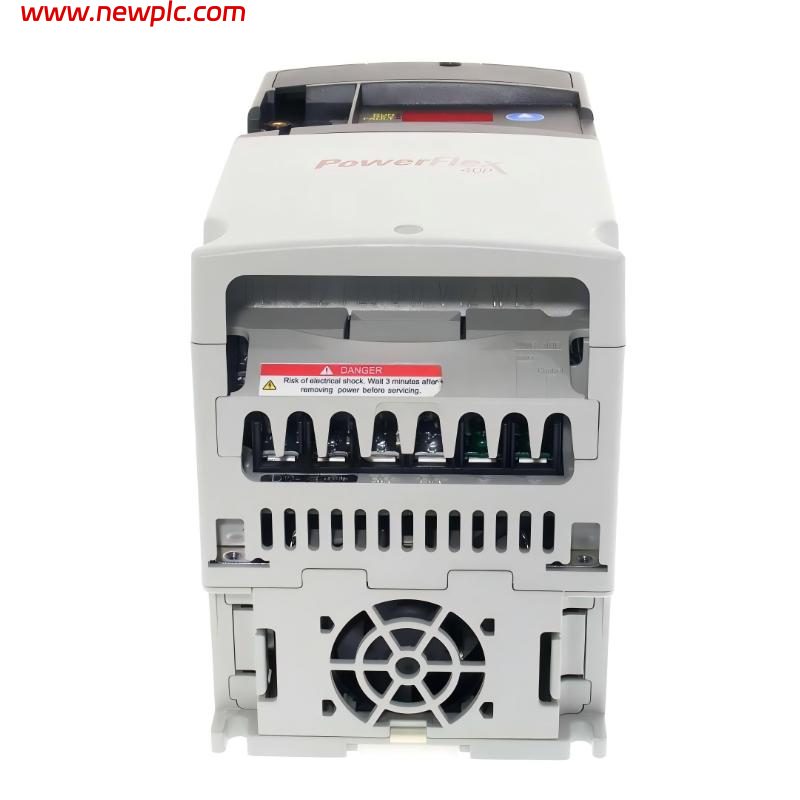

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PowerFlex 40P |
| Model Number | 22D-D6P0N104 |
| Product Type | AC Variable Frequency Drive (VFD) |
| Drive Type | Adjustable Frequency AC Drive |
| Input Voltage | 380…480V AC |
| Nominal Voltage Class | 480V AC |
| Input Phase | 3-Phase |
| Input Frequency | 50/60 Hz |
| Output Voltage | 0…460V AC |
| Output Frequency Range | 0…400 Hz Programmable |
| Rated Output Current | 6.0 A |
| Output Power | 2.2 kW / 3 HP |
| Frame Size | Frame B |
| Control Methods | V/Hz, Sensorless Vector Control, PWM |
| Communication Port | Embedded RS-485 |
| Optional Communication | EtherNet/IP, DeviceNet, PROFIBUS, BACnet, ControlNet, LonWorks |
| Digital Inputs | 7 |
| Digital Outputs | 2 Opto Outputs |
| Analog Inputs | 1 × 0–10VDC / 0–20mA |
| Analog Outputs | 1 × 0–10VDC / 0–20mA |
| Relay Output | 1 Form-C Relay |
| Brake IGBT | Included |
| EMC Filter | No CE-compliant filter |
| HIM Version | Display / Fault Reset Only |
| Enclosure Rating | IP20 / NEMA Type Open |
| Mounting Type | Panel Mount |
| Cooling Method | Forced Air Cooling |
| Power Factor | 0.98 |
| Operating Temperature | -10°C to 50°C |
| Relative Humidity | 0–95% Non-condensing |
| Certifications | UL, CE, cUL, KC, C-Tick |
| Lifecycle Status | End of Life |
| Discontinued Date | June 30, 2025 |
| Replacement Model | 25B-D6P0N104 |
| Actual Dimensions (H × W × D) | Approx. 191 × 158 × 280 mm |
| Actual Weight | Approx. 1.8–2.0 kg |
| Typical Applications | Fans, Pumps, Conveyors, Packaging Machines, Material Handling |
FAQ
FAQ
Q1: What is the Allen-Bradley 22D-D6P0N104 used for?
A1: The 22D-D6P0N104 is a PowerFlex 40P AC drive designed for variable-speed control of industrial AC motors, especially in fan and pump applications.
Q2: What motor size can the 22D-D6P0N104 control?
A2: The drive supports motors up to 2.2 kW (3 HP) with a continuous output current rating of 6.0 A.
Q3: What input power does the 22D-D6P0N104 require?
A3: The drive requires 380–480V AC three-phase input power at 50/60 Hz.
Q4: Does the 22D-D6P0N104 include a brake transistor?
A4: Yes. The drive includes an integrated Brake IGBT for dynamic braking applications.
Q5: What communication options are available?
A5: The drive includes embedded RS-485 communication and supports optional EtherNet/IP, DeviceNet, PROFIBUS, BACnet, ControlNet, and LonWorks adapters.
Q6: What are the actual dimensions and weight of the 22D-D6P0N104?
A6: The approximate dimensions are 191 × 158 × 280 mm, and the actual weight is approximately 1.8–2.0 kg.
Q7: Is the 22D-D6P0N104 discontinued?
A7: Yes. Rockwell Automation announced end-of-life status for this model, with discontinuation effective June 30, 2025. The recommended engineering replacement is 25B-D6P0N104.
Q8: What are common applications for the 22D-D6P0N104?
A8: Common applications include fans, pumps, conveyors, packaging systems, textile machinery, and general industrial motor-speed control.
