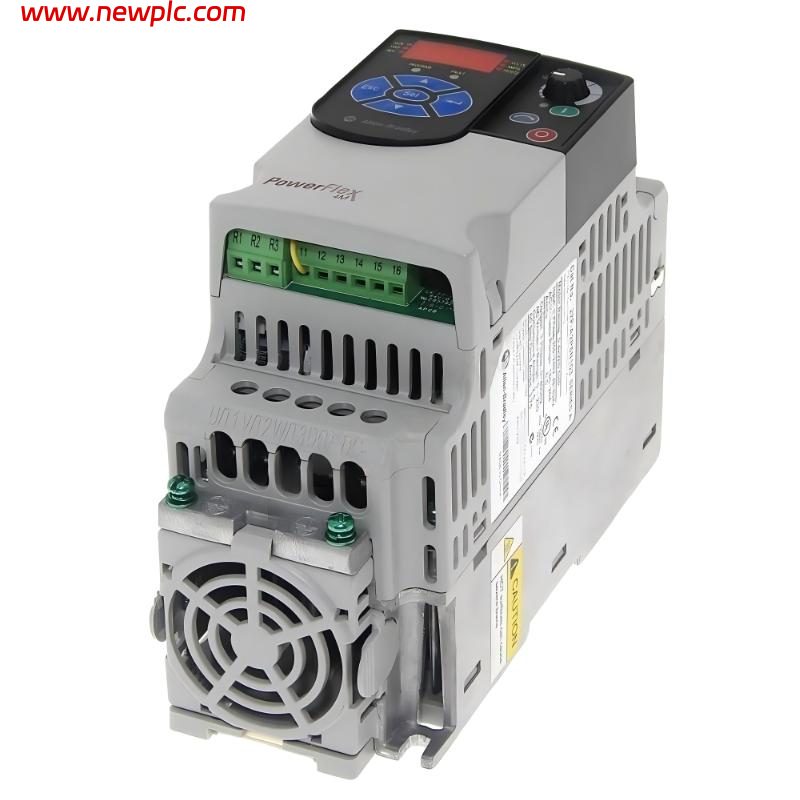

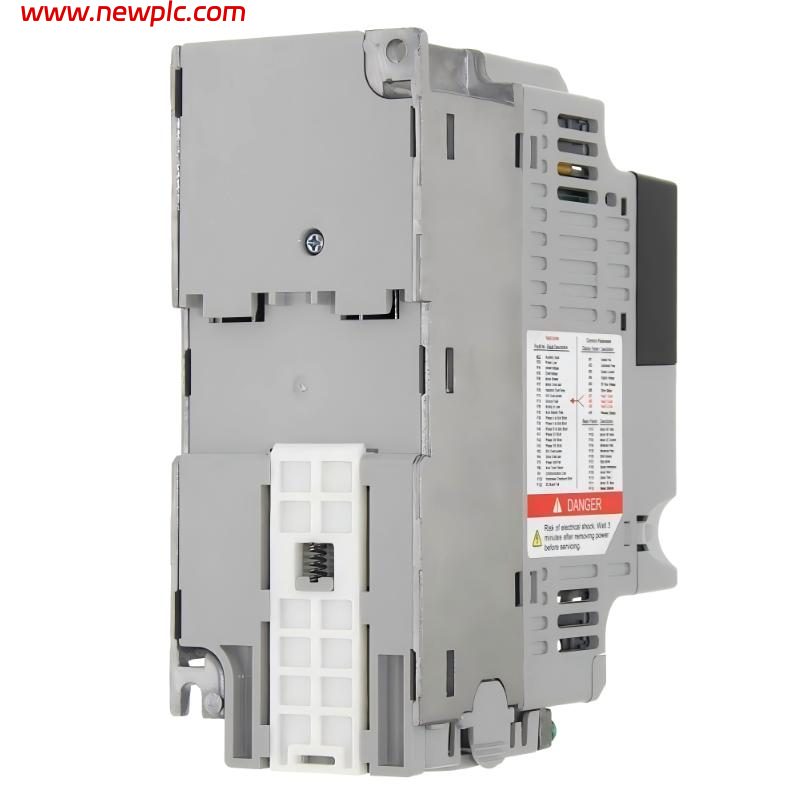

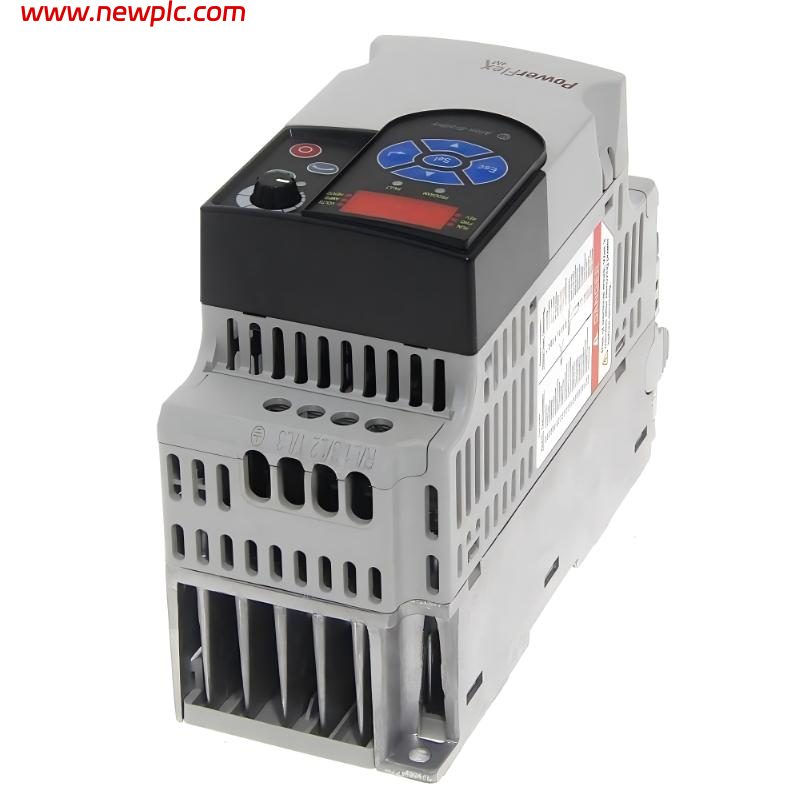

Allen Bradley 22F-A2P5N103 AC Variable Frequency Drive (VFD)

FAQ

Q1: What is the Allen-Bradley 22F-A2P5N103 used for?
A1: The 22F-A2P5N103 is a compact PowerFlex 4M AC drive designed for variable-speed control of small industrial AC motors.

Q2: What motor size can the 22F-A2P5N103 control?
A2: The drive supports motors up to 0.37 kW (0.5 HP) with a rated output current of 2.5 A.

Q3: What input power does the 22F-A2P5N103 require?
A3: The drive operates on 200–240V AC single-phase input power at 50/60 Hz.

Q4: Does the 22F-A2P5N103 include communication capability?
A4: Yes. The drive includes integrated RS-485/DSI communication and supports Modbus RTU networking.

Q5: Does the 22F-A2P5N103 include a brake transistor?
A5: No. This model is configured without an internal Brake IGBT.

Q6: What are the actual dimensions and weight of the 22F-A2P5N103?
A6: The approximate dimensions are 174 × 72 × 136 mm, with an approximate weight of 1.1 kg.

Q7: What enclosure type does the 22F-A2P5N103 use?
A7: The drive uses an IP20 / UL NEMA Open Type enclosure intended for panel or DIN-rail installation inside control cabinets.

Q8: What are common applications for the 22F-A2P5N103?
A8: Common applications include small conveyors, fans, pumps, OEM equipment, and compact industrial motor-speed control systems.
