Technical Specifications
| Parameter | Specification |
|---|---|

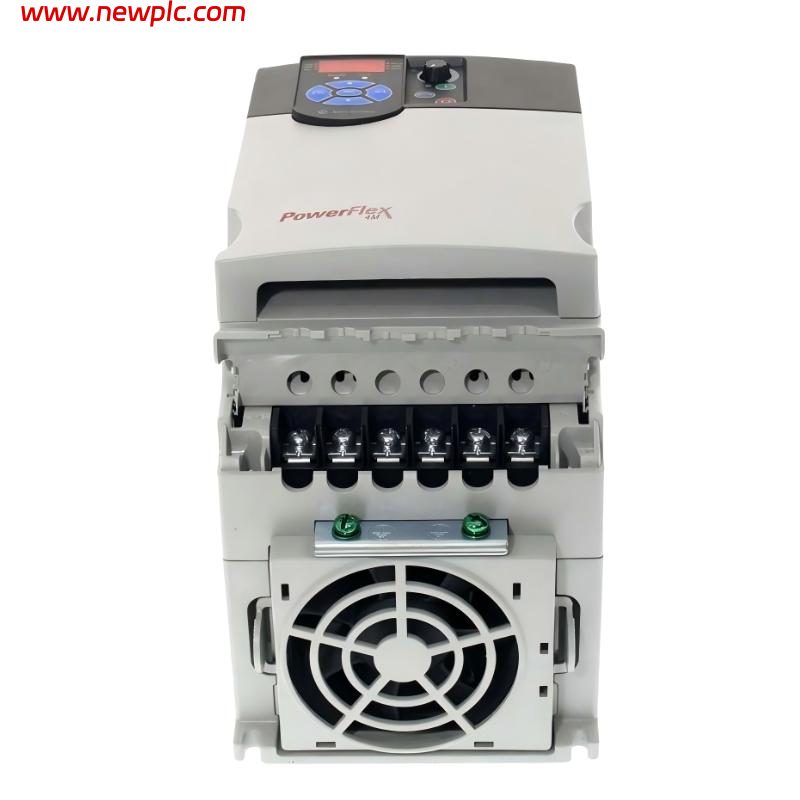

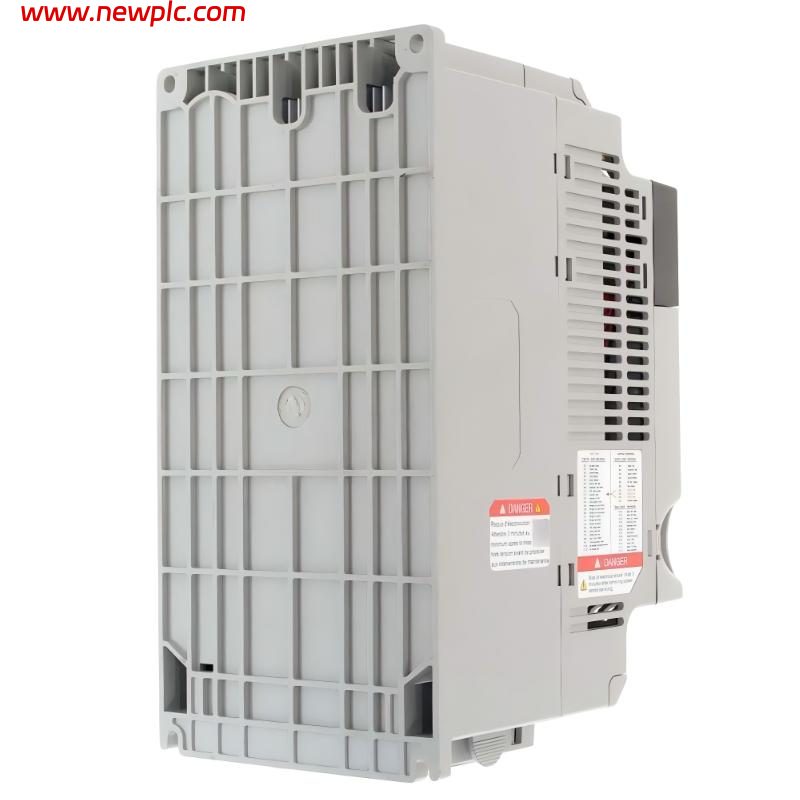

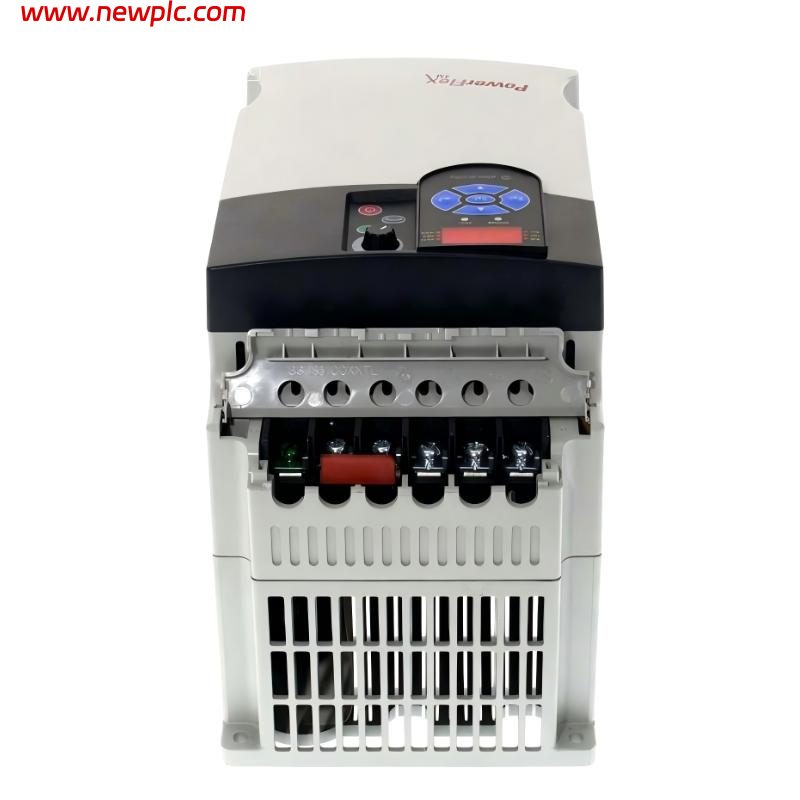

| Product Name | Allen-Bradley 22F-D018N104 |
| Product Type | PowerFlex 4M AC Drive (VFD) |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | PowerFlex 4M |
| Rated Power | 7.5 kW (10 HP) |
| Input Voltage | 380–480 V AC, 3-phase |
| Input Voltage Range | Approx. 340–528 V AC |
| Output Voltage | 0–460 V AC |
| Output Current | 18 A |
| Input Current | Approx. 19.5 A |
| Frequency Rating | 50/60 Hz |
| Control Method | V/Hz control |
| Communication | RS485 (built-in), optional industrial networks |
| Analog Input | 1 (0–10 V or 0–20 mA) |
| Digital Inputs | 5 configurable inputs |
| Digital Output | 1 Form C relay output |
| Brake IGBT | Included |
| EMC Filter | Not included (varies by version) |
| Enclosure Rating | IP20 / NEMA Open Type |
| Mounting Type | Panel mount |
| Cooling Method | Forced air cooling |
| Keypad | Built-in keypad with display |
| Control Interface | Fixed terminal block |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 85°C |
| Weight | Approx. 4.17 kg |
| Dimensions | Approx. 246 × 186 × 325 mm |
| Certifications | CE, UL, cUL |
FAQ
FAQ
Q1: What is the 22F-D018N104 used for?
The 22F-D018N104 is a PowerFlex 4M variable frequency drive used to control the speed and torque of three-phase AC motors in industrial applications.
Q2: What is the power rating of this drive?
It is rated at 7.5 kW (10 HP) with an output current of 18 A.
Q3: What type of input power does it require?
It requires a 380–480 V AC three-phase power supply.
Q4: Does this drive support communication networks?
Yes, it includes built-in RS485 communication and supports optional industrial network modules depending on configuration.
Q5: What kind of control method does it use?
It uses V/Hz (voltage-to-frequency) control for basic and general-purpose motor control applications.
Q6: Is the drive suitable for harsh environments?
It is rated IP20, meaning it must be installed inside a protected electrical cabinet.
Q7: Does it include braking functionality?
Yes, it includes a built-in brake IGBT for external braking resistor applications.
Q8: What are typical applications of this drive?
It is commonly used in conveyors, pumps, fans, mixers, and general-purpose industrial motor control systems.
