Technical Specifications
| Parameter | Specification |
|---|---|

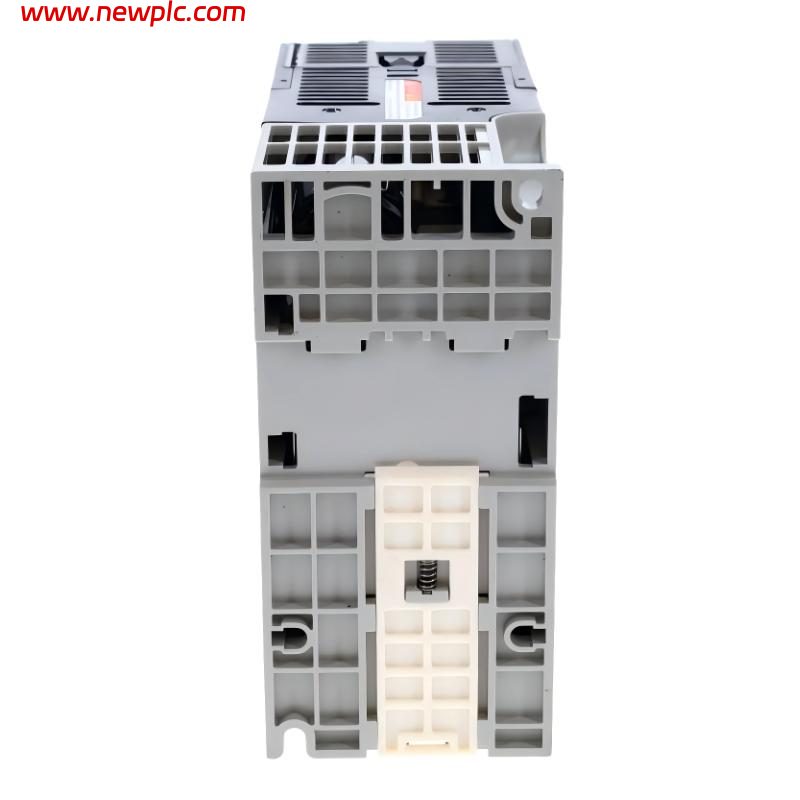

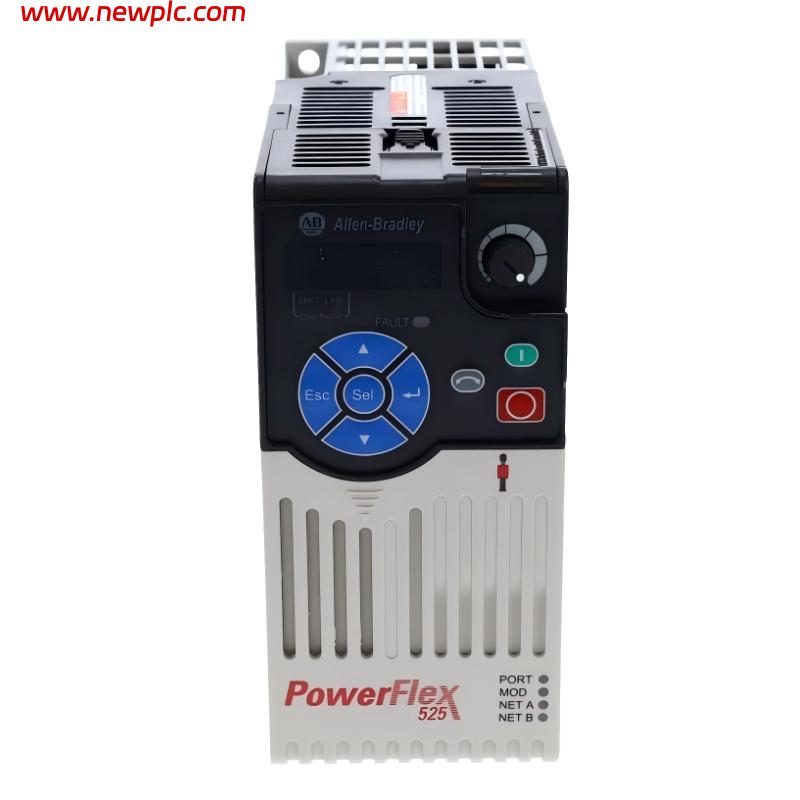

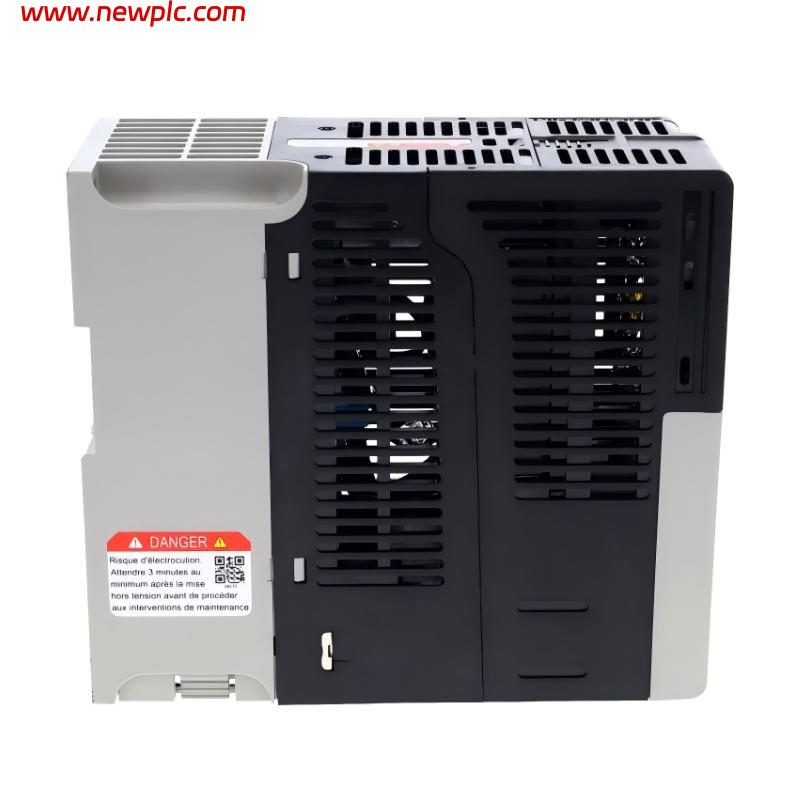

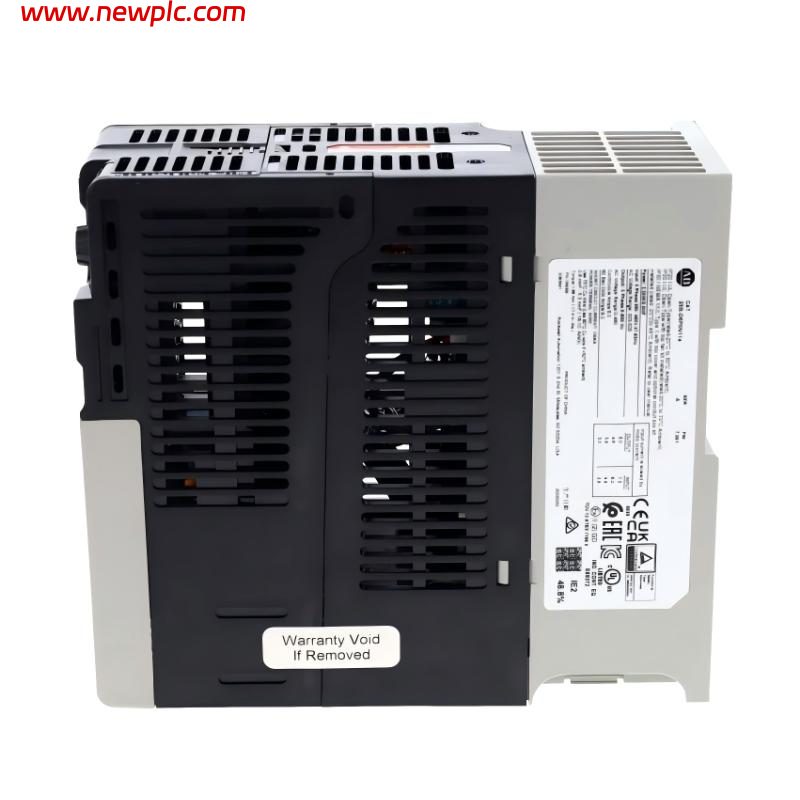

| Product Name | Allen-Bradley PowerFlex 525 AC Drive |
| Model Number | 25B-D6P0N114 |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PowerFlex 525 |
| Product Type | Adjustable Frequency AC Drive (VFD) |
| Input Voltage | 380–480V AC, Three-Phase |
| Input Frequency | 50–60 Hz |
| Output Current | 6.0 A |
| Power Rating | 2.2 kW (3 HP) |
| Duty Rating | Normal Duty / Heavy Duty |
| Frame Size | Frame A |
| Enclosure Type | IP20 / Open Type |
| Control Method | V/Hz, Sensorless Vector Control, Closed Loop Vector Control |
| Motor Compatibility | Induction motors and permanent magnet motors |
| Communication Interface | Built-in EtherNet/IP |
| Safety Function | Safe Torque-Off (STO), SIL2 / PLd Cat 3 |
| Brake IGBT | Included |
| Max Output Frequency | Up to 500 Hz |
| I/O | Embedded digital and analog I/O |
| User Interface | Integral keypad with LCD display and potentiometer |
| Mounting Type | Panel Mount |
| Cooling Method | Forced Air Cooling |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5–95% non-condensing |
| Certifications | CE, UL, cUL, KC, C-Tick |
| Dimensions | Approx. 180 × 80 × 172 mm |
| Weight | Approx. 1.3 kg |
| Application | Industrial AC motor speed control |
FAQ
FAQ
Q1: What is the Allen-Bradley 25B-D6P0N114 used for?
The 25B-D6P0N114 is a PowerFlex 525 AC drive used to control the speed and torque of industrial AC motors in applications such as conveyors, fans, pumps, and packaging machinery.
Q2: What is the power rating of the 25B-D6P0N114?
The drive is rated for 2.2 kW (3 HP) operation on a 380–480V AC three-phase power supply.
Q3: Does the 25B-D6P0N114 include EtherNet/IP communication?
Yes, the drive features built-in EtherNet/IP communication for integration with Allen-Bradley PLC and automation systems.
Q4: What motor control methods are supported?
It supports V/Hz control, sensorless vector control, and closed-loop vector motor control.
Q5: Does this drive include safety functionality?
Yes, it includes Safe Torque-Off (STO) functionality certified to SIL2 / PLd Category 3 standards.
Q6: What is the rated output current of the drive?
The rated output current is 6.0 A.
Q7: What are the dimensions and weight of the 25B-D6P0N114?
The drive measures approximately 180 × 80 × 172 mm and weighs about 1.3 kg.
Q8: What applications commonly use the 25B-D6P0N114?
It is commonly used in industrial automation systems including conveyor systems, fans, mixers, pumps, and light-duty machinery requiring variable motor speed control.
