Technical Specifications
| Parameter | Specification |
|---|---|

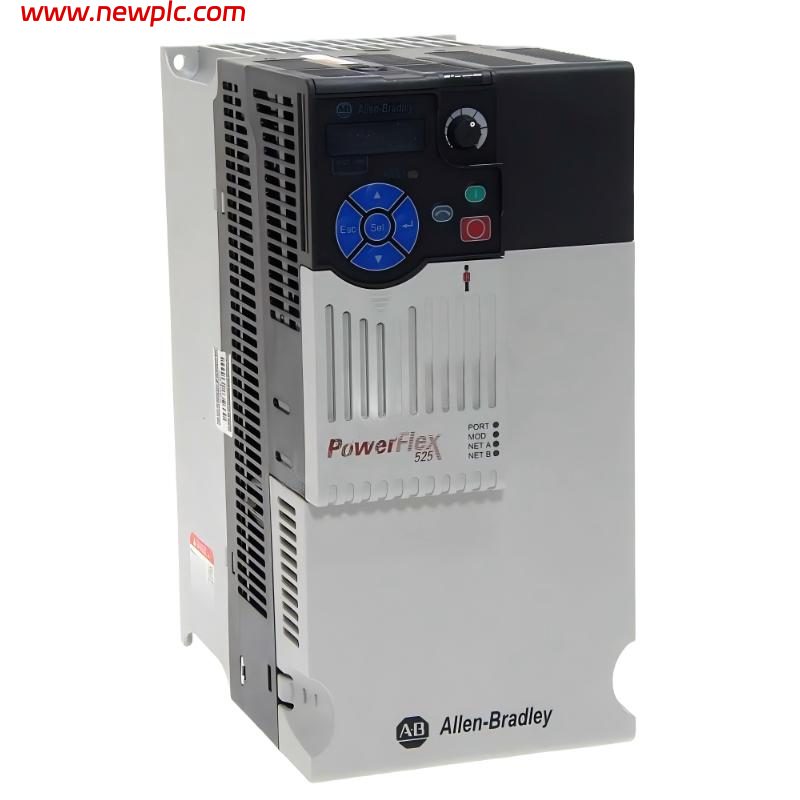

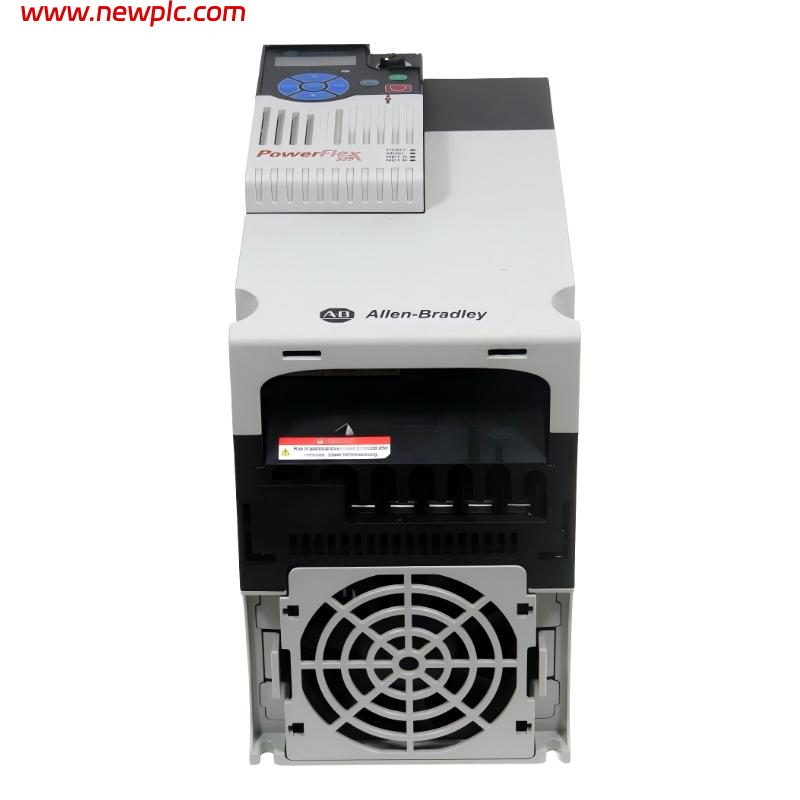

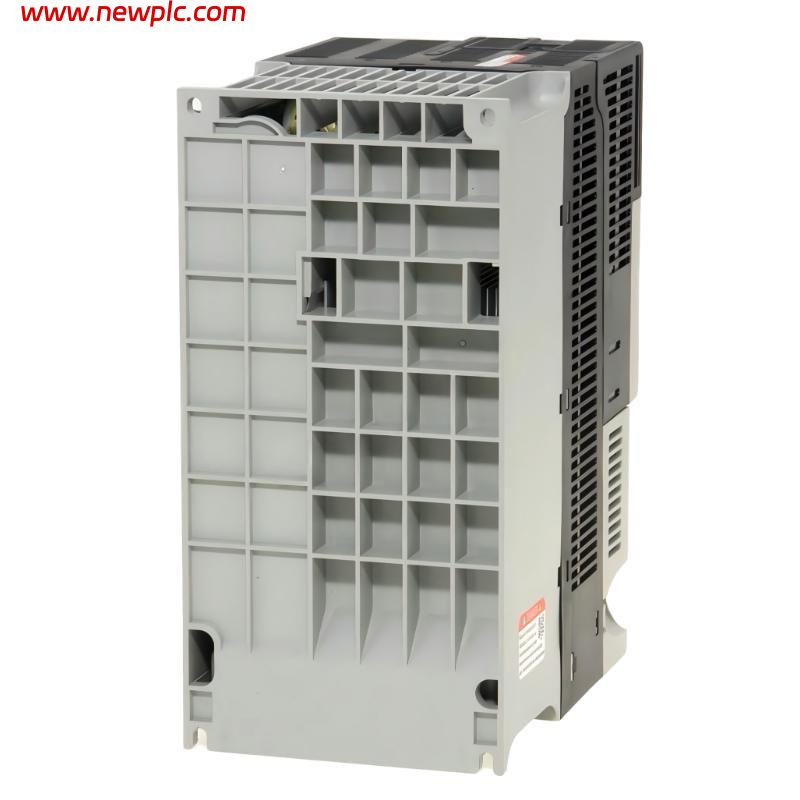

| Product Name | Allen-Bradley PowerFlex 525 AC Drive |
| Model Number | 25B-D024N104 |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PowerFlex 525 |
| Product Type | Adjustable Frequency AC Drive (VFD) |
| Input Voltage | 380–480V AC, Three-Phase |
| Input Frequency | 50–60 Hz |
| Output Current | 24 A |
| Power Rating | 11 kW (15 HP) |
| Duty Rating | Normal Duty / Heavy Duty |
| Frame Size | Frame D |
| Enclosure Type | IP20 / Open Type |
| Control Method | V/Hz, Sensorless Vector Control, Closed Loop Vector Control |
| Motor Compatibility | Induction motors and permanent magnet motors |
| Communication Interface | Built-in EtherNet/IP |
| Safety Function | Safe Torque-Off (STO), SIL2 / PLd Cat 3 |
| Brake IGBT | Included |
| Max Output Frequency | Up to 500 Hz |
| I/O | Embedded digital and analog I/O |
| Human Interface | Integral keypad with LCD display and potentiometer |
| Mounting Type | Panel Mount |
| Cooling Method | Forced Air Cooling |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5–95% non-condensing |
| Certifications | CE, UL, cUL, KC, C-Tick |
| Dimensions | Approx. 260 × 140 × 203 mm |
| Weight | Approx. 3.6 kg |
FAQ
FAQ
Q1: What is the Allen-Bradley 25B-D024N104 used for?
The 25B-D024N104 is a PowerFlex 525 AC drive used for controlling the speed and torque of three-phase AC motors in industrial automation systems such as conveyors, pumps, mixers, and packaging equipment.
Q2: What is the power rating of the 25B-D024N104?
This drive is rated for 11 kW (15 HP) operation on a 380–480V AC three-phase power supply.
Q3: Does the 25B-D024N104 support EtherNet/IP communication?
Yes, the drive includes built-in EtherNet/IP communication for seamless integration with Allen-Bradley PLC and automation systems.
Q4: What motor control modes are available?
The drive supports V/Hz control, sensorless vector control, and closed-loop vector control for improved motor performance.
Q5: Does the 25B-D024N104 include safety functions?
Yes, it features Safe Torque-Off (STO) functionality certified to SIL2 / PLd Category 3 safety standards.
Q6: What is the rated output current of the drive?
The drive provides a rated output current of 24 A.
Q7: What are the dimensions and weight of the 25B-D024N104?
The approximate dimensions are 260 × 140 × 203 mm, and the drive weighs about 3.6 kg.
Q8: What applications commonly use the 25B-D024N104?
It is commonly used in industrial applications including conveyor systems, pumps, fans, compressors, material handling equipment, and packaging machinery.
