Technical Specifications
| Parameter | Specification |
|---|---|

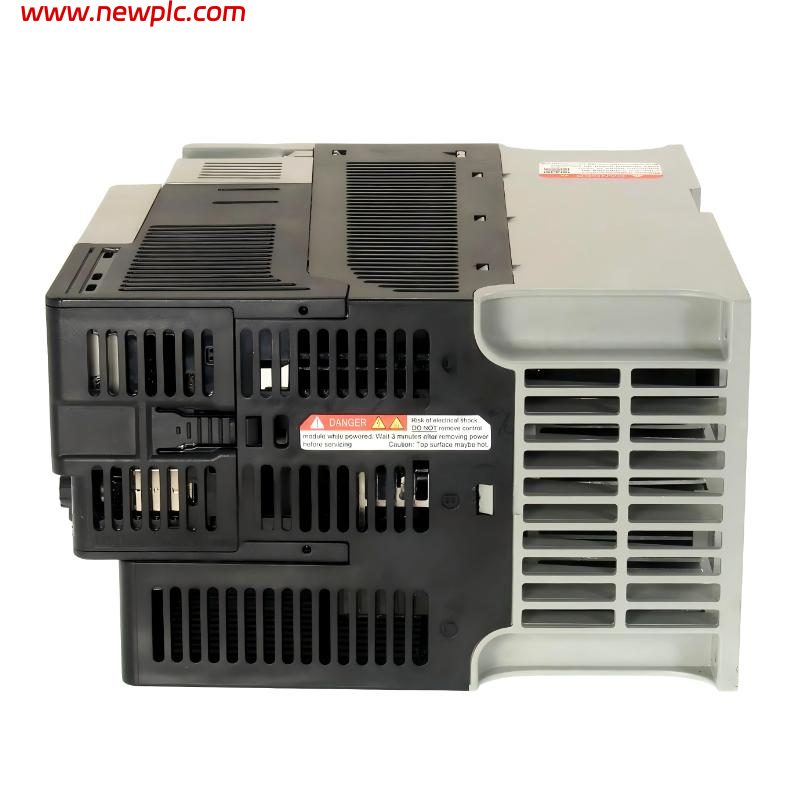

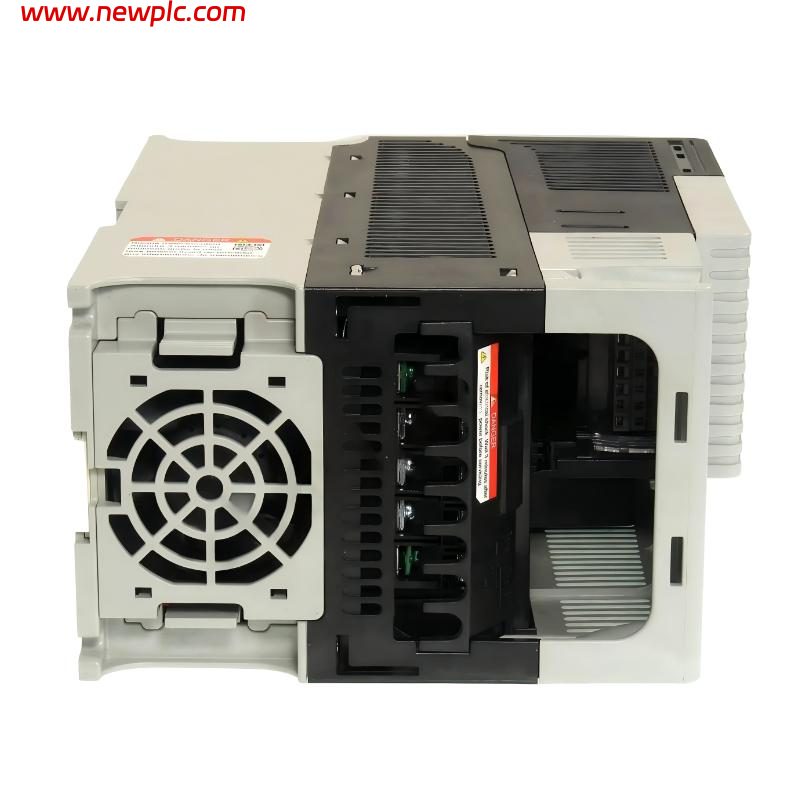

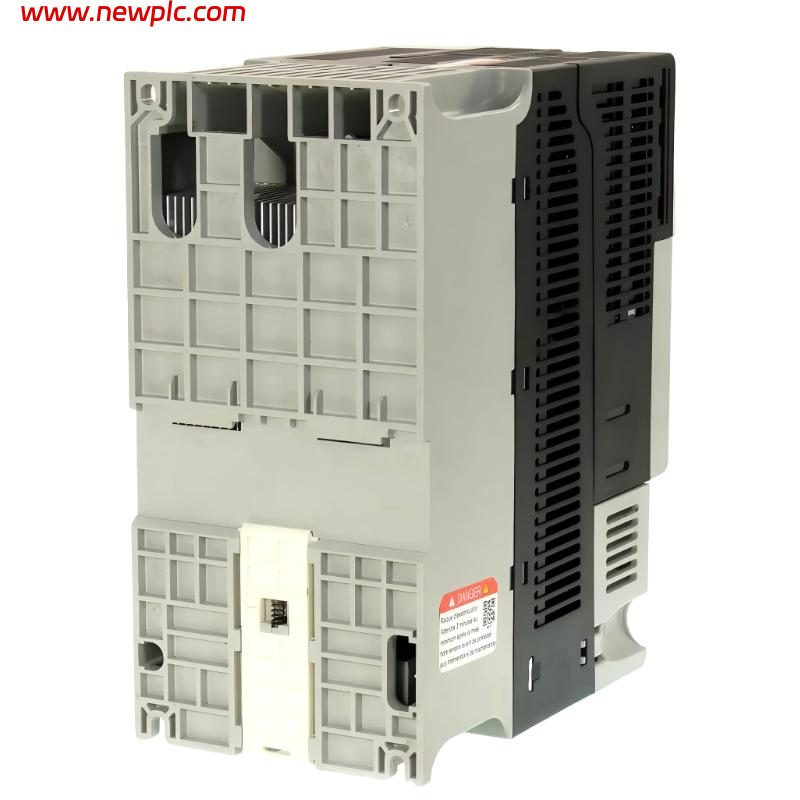

| Product Name | Allen-Bradley PowerFlex 525 AC Drive |
| Model Number | 25B-D017N114 |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PowerFlex 525 |
| Product Type | Adjustable Frequency AC Drive (VFD) |
| Input Voltage | 380–480V AC, Three-Phase |
| Input Frequency | 50–60 Hz |
| Output Current | 17.5 A (turn0search1) |
| Power Rating | 7.5 kW / 10 HP (turn0search2) |
| Frame Size | Frame C |
| Enclosure Type | IP20 / Open Type |
| Control Method | V/Hz, Sensorless Vector Control, Closed Loop Vector Control |
| Motor Compatibility | Induction motors, permanent magnet motors |
| Communication Interface | Built-in EtherNet/IP |
| Safety Function | Safe Torque-Off (STO), SIL2 / PLd Cat 3 |
| Brake IGBT | Included |
| EMC Filter | Integrated (variant dependent) |
| Max Output Frequency | Up to 500 Hz |
| I/O | Digital inputs/outputs, analog inputs/outputs |
| User Interface | Integral keypad with potentiometer & LED display |
| Mounting Type | Panel mount |
| Cooling Method | Forced air cooling |
| Operating Temperature | Up to ~50°C (derating may apply) |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5–95% non-condensing |
| Certifications | CE, UL, cUL, KC, C-Tick |
| Dimensions | Approx. 220 × 109 × 184 mm |
| Weight | Approx. 2.3 kg |
FAQ
FAQ
Q1: What is the Allen-Bradley 25B-D017N114 used for?
The 25B-D017N114 is a PowerFlex 525 variable frequency drive used to control the speed and torque of AC motors in industrial applications such as conveyors, pumps, fans, and packaging machines.
Q2: What is the power rating of the 25B-D017N114?
It is rated at 7.5 kW (10 HP) for both normal duty and heavy duty operation.
Q3: What input voltage does the 25B-D017N114 require?
It operates on a 380–480V AC three-phase power supply.
Q4: Does the 25B-D017N114 support EtherNet/IP communication?
Yes, it includes built-in EtherNet/IP for integration with Allen-Bradley PLC systems.
Q5: What safety features are included?
It supports Safe Torque-Off (STO), certified to SIL2 / PLd Category 3 standards.
Q6: What is the output current of this drive?
The rated output current is approximately 17.5 A.
Q7: What are the dimensions and weight of the 25B-D017N114?
It measures about 220 × 109 × 184 mm and weighs around 2.3 kg.
Q8: What applications commonly use this drive?
It is commonly used in industrial automation systems such as conveyors, mixers, pumps, HVAC systems, and general-purpose machine speed control.
