Technical Specifications
| Parameter | Specification |
|---|---|

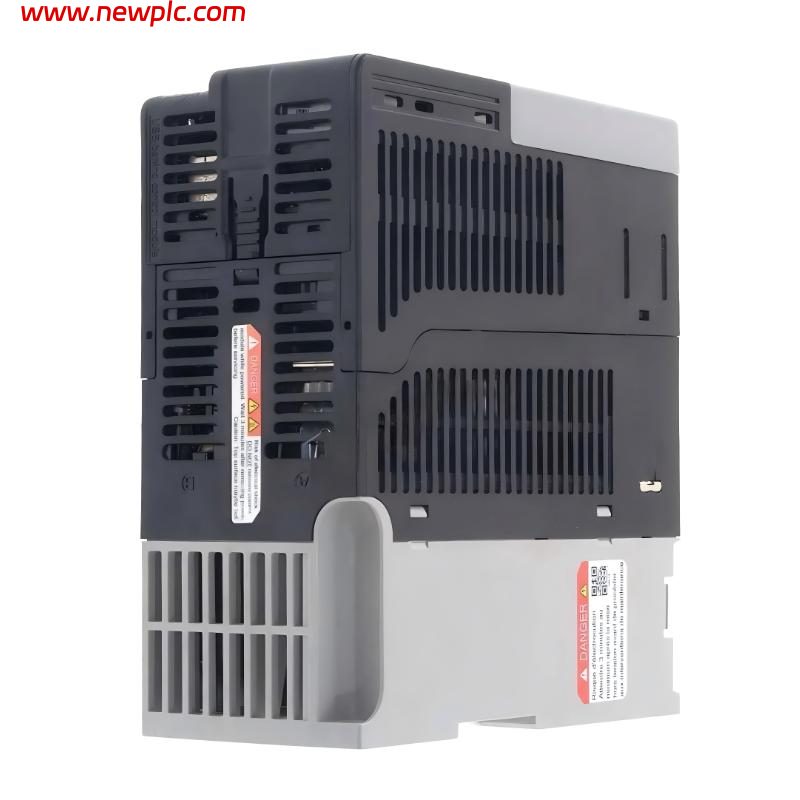

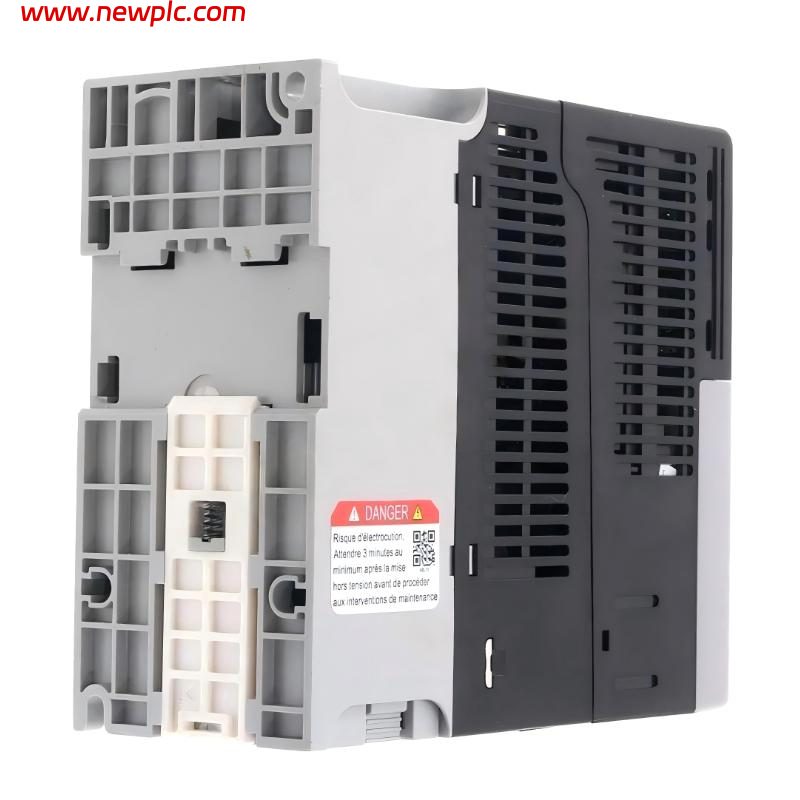

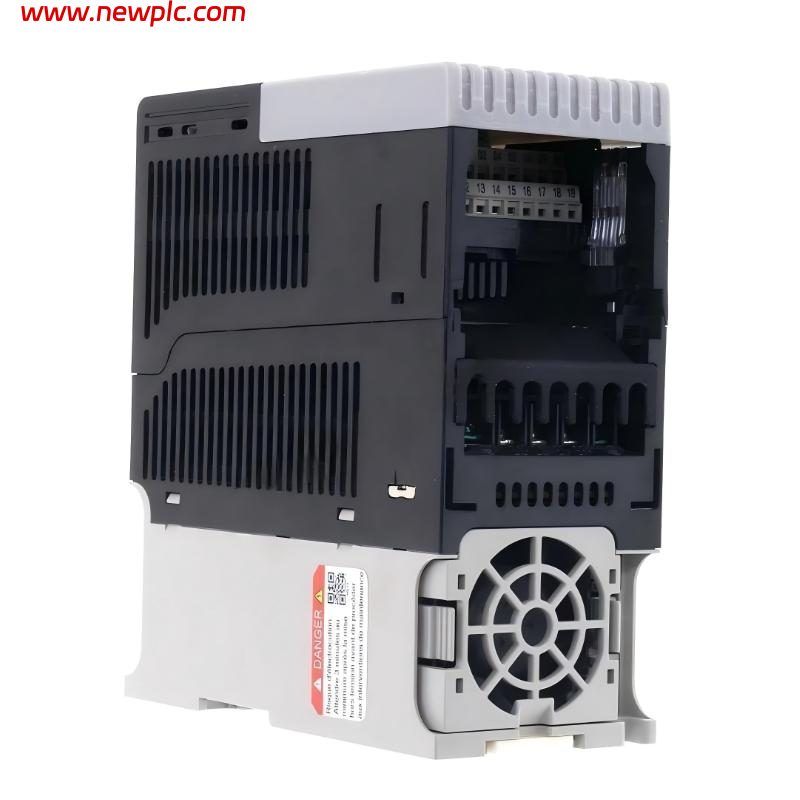

| Product Name | Allen-Bradley PowerFlex 525 AC Drive |
| Model Number | 25B-B8P0N104 |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PowerFlex 525 |
| Product Type | Adjustable Frequency AC Drive (VFD) |
| Input Voltage | 200–240V AC, Three-Phase |
| Input Frequency | 50–60 Hz |
| Output Current | 8.0 A |
| Power Rating | 1.5 kW (2 HP) |
| Duty Rating | Normal Duty / Heavy Duty (same rating at 2 HP class) |
| Control Method | V/Hz, Sensorless Vector Control (SVC), Closed Loop Vector Control |
| Motor Types Supported | Induction motors, Permanent Magnet motors |
| Communication Interface | Built-in EtherNet/IP |
| Safety Function | Safe Torque-Off (STO), SIL2 / PLd Cat 3 |
| Brake IGBT | Included |
| Enclosure Type | IP20 / Open Type |
| Mounting Type | Panel Mount |
| Frame Size | Frame A |
| I/O | Multiple digital inputs/outputs, analog I/O (configurable) |
| User Interface | Integral keypad with display and potentiometer |
| Cooling Method | Forced air cooling |
| Operating Temperature | Up to ~50°C (derated up to higher ambient in some configurations) |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5–95% non-condensing |
| Certifications | CE, UL, cUL, KC, C-Tick |
| Dimensions | Approx. 180 × 80 × 172 mm |
| Weight | Approx. 1.2–1.5 kg |
| Application | General-purpose motor speed control for industrial machinery |
FAQ
FAQ
Q1: What is the Allen-Bradley 25B-B8P0N104 used for?
The 25B-B8P0N104 is a PowerFlex 525 variable frequency drive used to control the speed and torque of AC motors in industrial automation systems such as conveyors, pumps, fans, and packaging machines.
Q2: What is the power rating of the 25B-B8P0N104?
It is rated for 1.5 kW (2 HP) output at 200–240V AC three-phase supply.
Q3: Does the 25B-B8P0N104 support Ethernet communication?
Yes, it includes built-in EtherNet/IP for integration with Allen-Bradley PLC systems.
Q4: What safety features does the 25B-B8P0N104 include?
It supports Safe Torque-Off (STO), certified to SIL2 / PLd Category 3 standards for machine safety.
Q5: What motor control methods does this drive support?
It supports V/Hz control, sensorless vector control, closed-loop vector control, and permanent magnet motor control.
Q6: What is the output current of this drive?
The rated output current is 8.0 A under normal operating conditions.
Q7: What are the physical size and weight of the 25B-B8P0N104?
It measures approximately 180 × 80 × 172 mm and weighs around 1.2–1.5 kg.
Q8: What applications commonly use this drive?
It is commonly used in small-to-medium industrial machines requiring speed control, such as conveyors, mixers, pumps, and light automation systems.
