Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Series | PanelView 550 |
| Model Number | 2711-B5A2L1 |

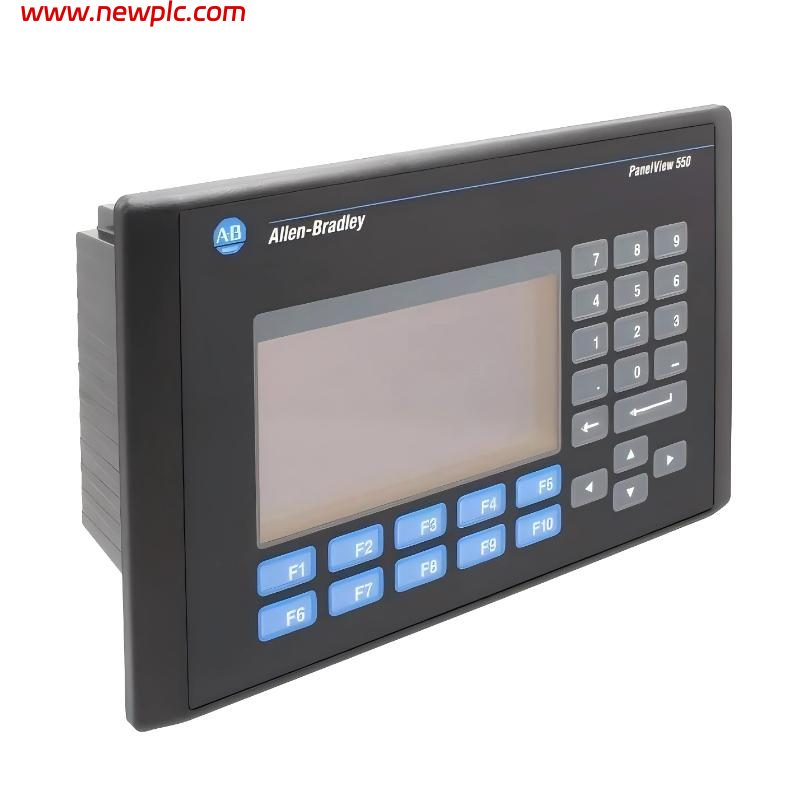

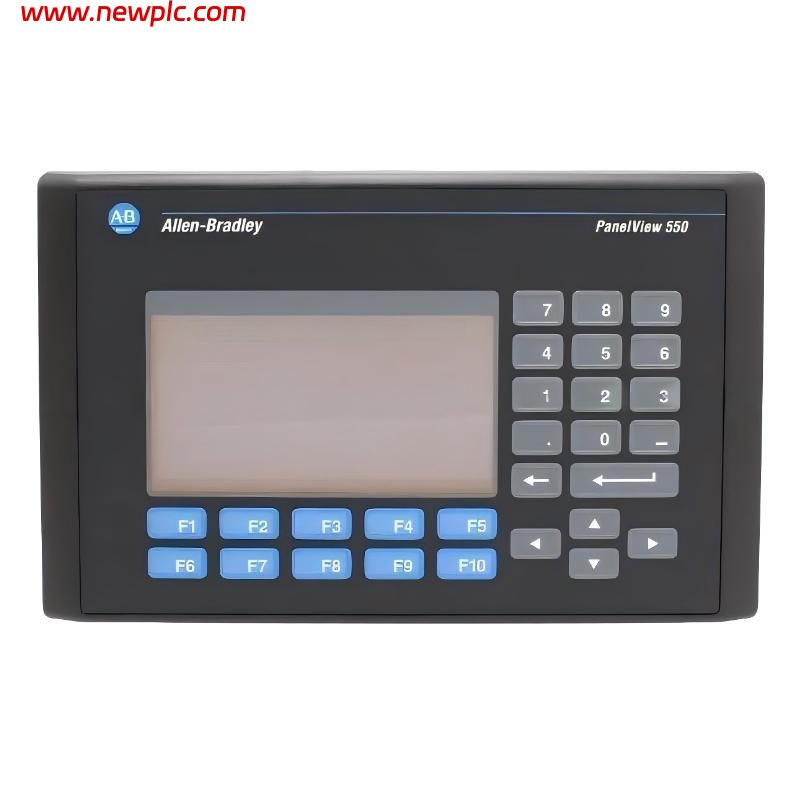

| Product Type | Operator Terminal / HMI |
| Display Size | 5.5 in. |
| Display Type | Monochrome LCD Blue Mode |
| Display Resolution | 256 × 128 Pixels |
| Display Area | 120 × 60 mm |
| Operator Interface | Keypad and Touchscreen |
| Function Keys | 10 Programmable Keys (F1–F10) |
| Touchscreen Durability | Approx. 1 Million Actuations |
| Keypad Type | Stainless-Steel Domed Membrane |
| Communication Port | DH-485 |
| Communication Cable | 1747-C10 |
| Input Voltage | 24V DC Nominal |
| Input Voltage Range | 18–32V DC |
| Application Runtime Memory | 170 KB |
| Nonvolatile Memory | 240 KB |
| Backlight Type | LED |
| Backlight Life | Approx. 100,000 Hours |
| Mounting Type | Panel Mount |
| Enclosure Type | Industrial Operator Terminal |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions (H × W × D) | 290 × 185 × 125 mm |
| Weight | Approx. 1.7 kg / 3.75 lb |
| Product Status | Discontinued / Obsolete |
FAQ
FAQ
Q1: What is the Allen-Bradley 2711-B5A2L1 used for?
A1: The 2711-B5A2L1 is a PanelView 550 operator terminal designed for industrial machine monitoring and control applications. It allows operators to interact with PLC-based automation systems through a touchscreen and keypad interface.
Q2: What type of display does the 2711-B5A2L1 use?
A2: This model features a 5.5-inch monochrome LCD blue mode display with a resolution of 256 × 128 pixels.
Q3: Does the terminal support both keypad and touchscreen operation?
A3: Yes. The unit combines a touchscreen interface with ten programmable function keys (F1–F10) for flexible machine operation.
Q4: What communication protocol does the 2711-B5A2L1 support?
A4: The terminal uses DH-485 communication, which is commonly used with legacy Allen-Bradley PLC systems.
Q5: What power supply is required for this operator terminal?
A5: The device operates on a 24V DC power supply with an acceptable voltage range of 18–32V DC.
Q6: Is the 2711-B5A2L1 still in production?
A6: No. This model has been discontinued by the manufacturer, but refurbished and surplus units are still widely available in the industrial automation market.
Q7: What is the expected backlight life of the display?
A7: The LED backlight is rated for approximately 100,000 operating hours under standard conditions.
Q8: What are the dimensions and weight of the 2711-B5A2L1?
A8: The unit measures approximately 290 × 185 × 125 mm and weighs about 1.7 kg (3.75 lb).
