Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Series | PanelView 1000 Standard |
| Model Number | 2711-K10C8 |

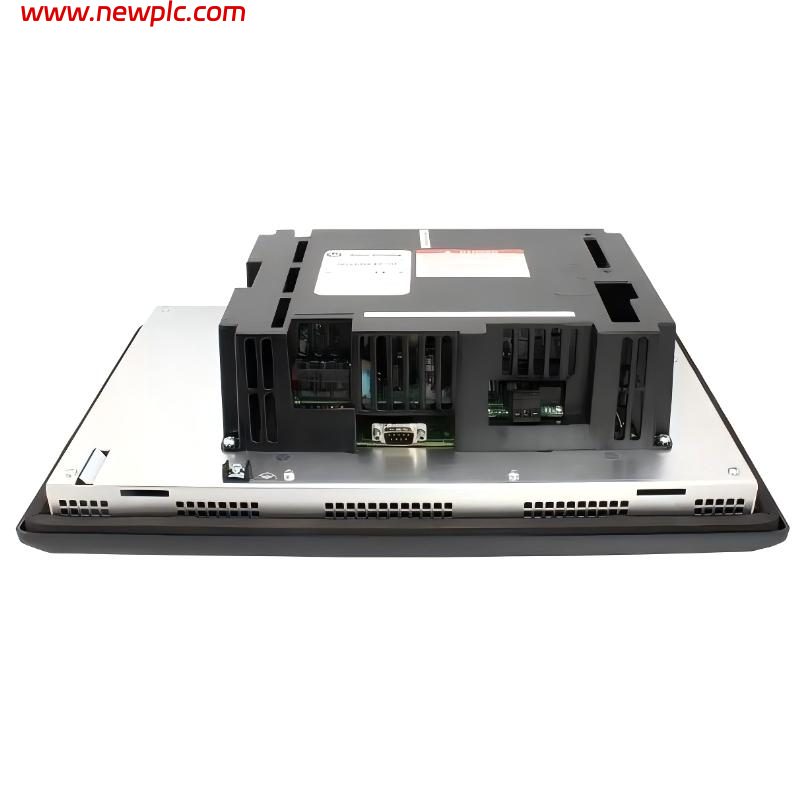

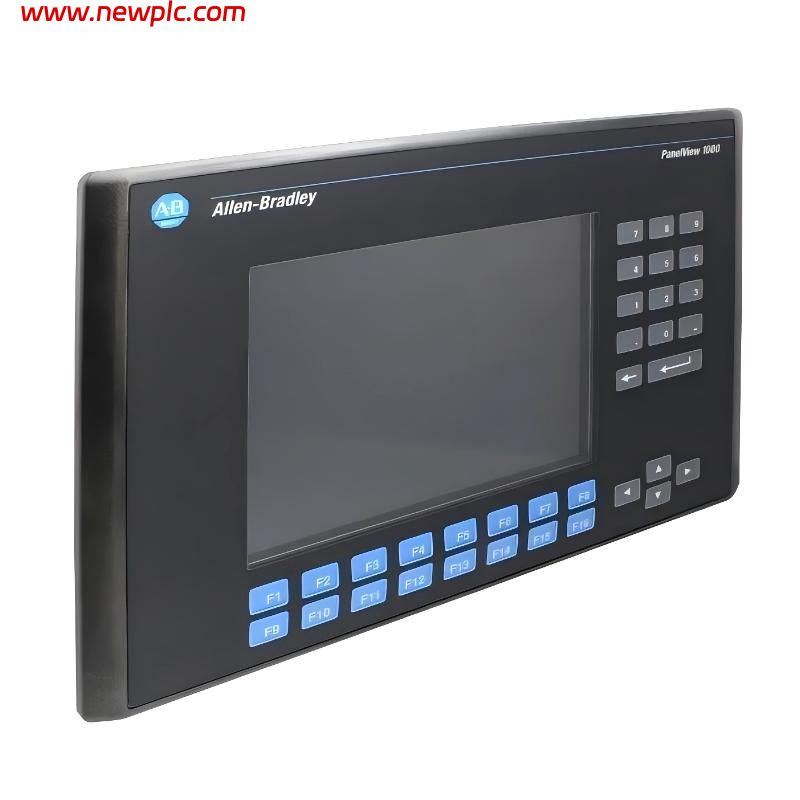

| Product Type | Operator Interface Terminal / HMI |
| Display Size | 10.1 in. |
| Display Type | Color Active Matrix TFT LCD |
| Display Resolution | 640 × 480 Pixels |
| Display Colors | 256 Colors |

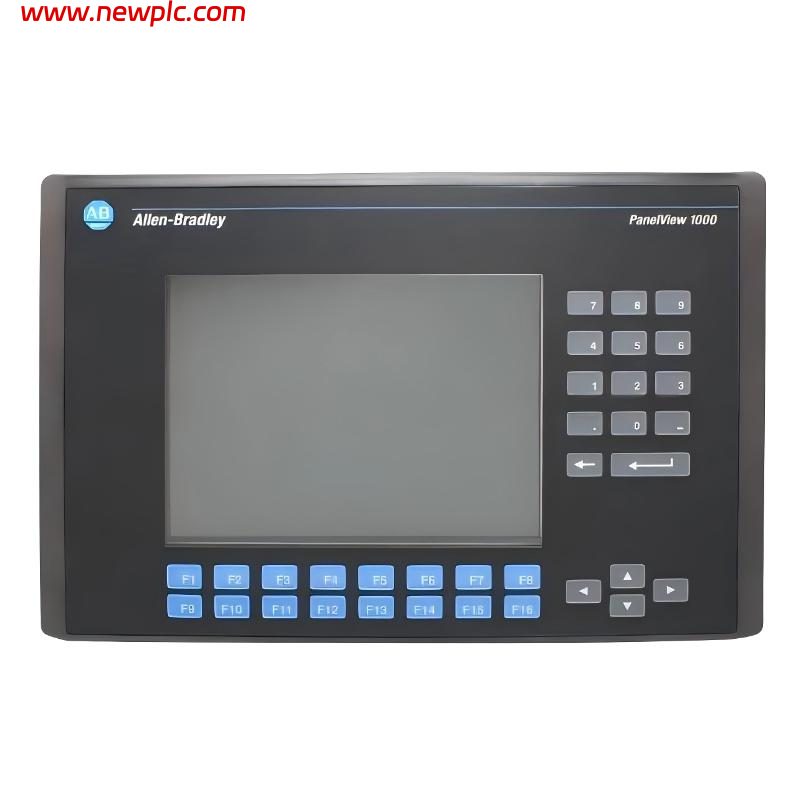

| Operator Interface | Keypad |
| Function Keys | 16 Programmable Function Keys (F1–F16) |
| Keypad Type | Stainless-Steel Domed Membrane |

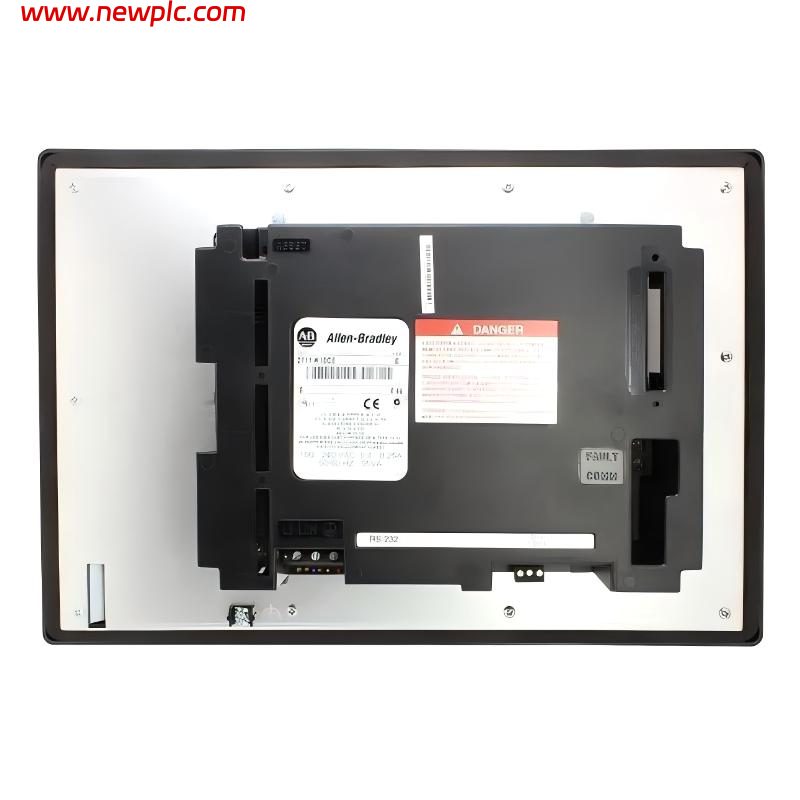

| Communication Ports | DH+ and RS-232 Printer/Download Port |
| Communication Speed | 57.6K / 115.2K / 230.4K baud |
| Power Supply | 85–264V AC |
| Input Frequency | 47–63 Hz |
| Runtime Memory | 310 KB |
| Nonvolatile Memory | 1008 KB Flash Memory |
| Backlight Type | Replaceable CCFL Backlight |
| Backlight Life | Approx. 100,000 Hours |
| Mounting Type | Panel Mount |
| Enclosure Rating | NEMA Type 12/13 and 4X Indoor Rated |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Dimensions (H × W × D) | 292 × 368 × 112 mm |
| Weight | Approx. 1.73 kg / 3.81 lb |
| Software Compatibility | PanelBuilder32 |
| Product Status | Discontinued / Obsolete |
FAQ
FAQ
Q1: What is the Allen-Bradley 2711-K10C8 used for?
A1: The 2711-K10C8 is a PanelView 1000 Standard HMI terminal designed for industrial machine control, process monitoring, and operator interaction in automation systems.
Q2: What type of display does the 2711-K10C8 feature?
A2: This model includes a 10.1-inch color TFT LCD display with a resolution of 640 × 480 pixels and support for 256 colors.
Q3: Does the 2711-K10C8 use a touchscreen?
A3: No. This model uses a keypad-only interface with 16 programmable function keys for operator control and navigation.
Q4: Which communication protocols are supported by this terminal?
A4: The unit supports DH+ communication and includes an RS-232 printer/download port for configuration and data transfer.
Q5: What software is used to configure the 2711-K10C8?
A5: The terminal is configured using Allen-Bradley PanelBuilder32 software.
Q6: Is the backlight replaceable on this HMI?
A6: Yes. The unit uses a field-replaceable CCFL backlight designed for long-term industrial operation.
Q7: Is the 2711-K10C8 still available from Allen-Bradley?
A7: No. The model has been discontinued by the manufacturer, although refurbished and surplus units are still available through industrial automation suppliers.
Q8: What are the dimensions and weight of the 2711-K10C8?
A8: The terminal measures approximately 292 × 368 × 112 mm and weighs about 1.73 kg (3.81 lb).
