Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Series | PanelView 550 Standard |

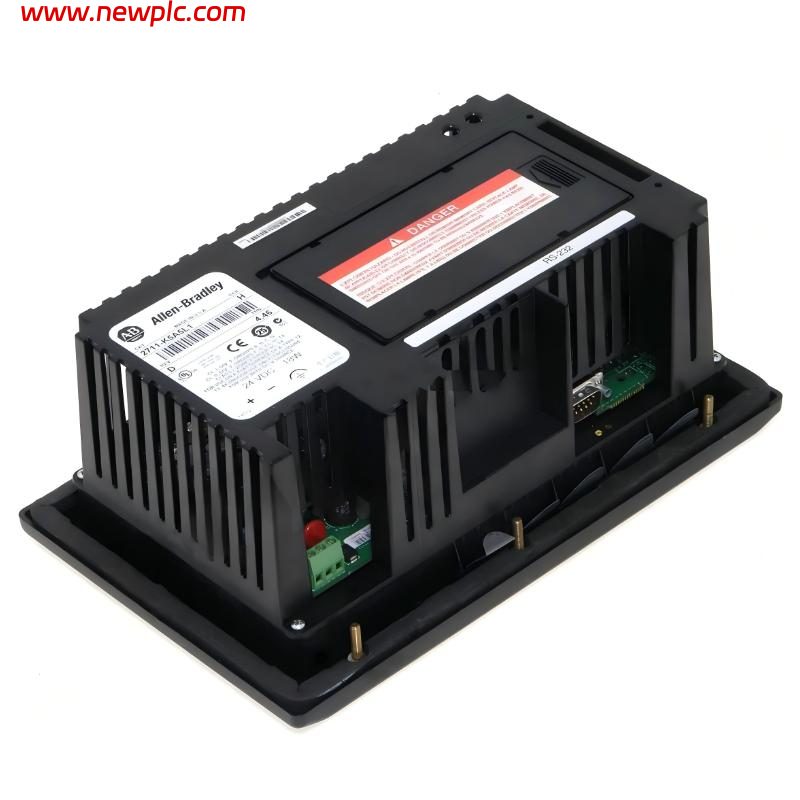

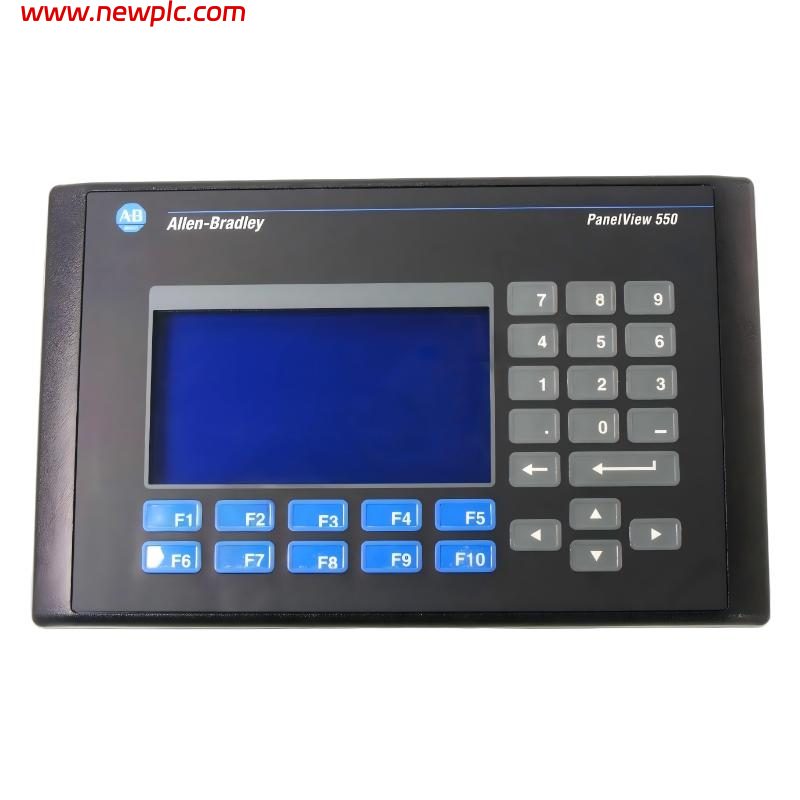

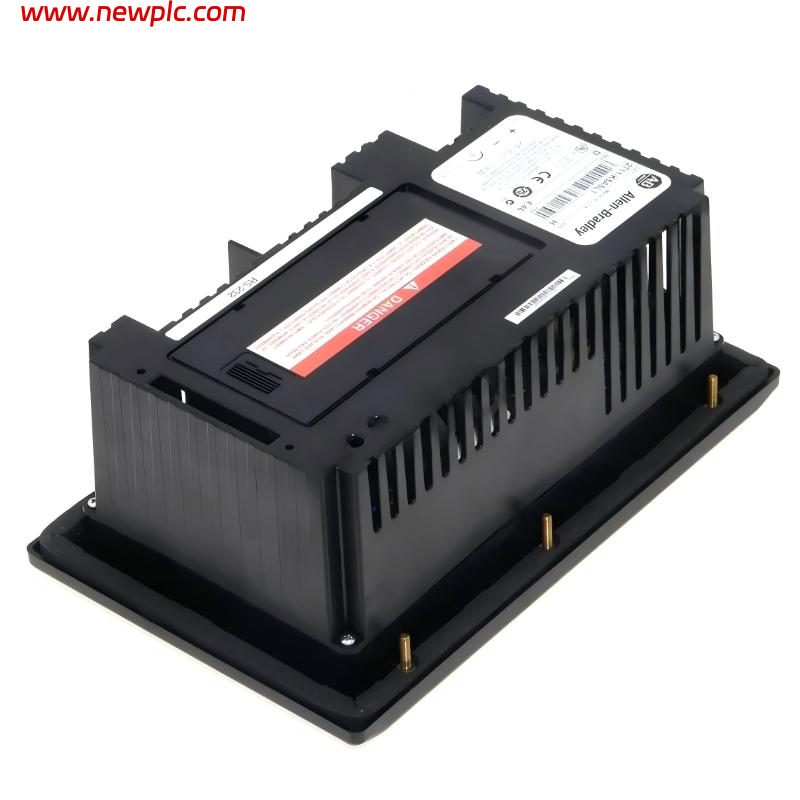

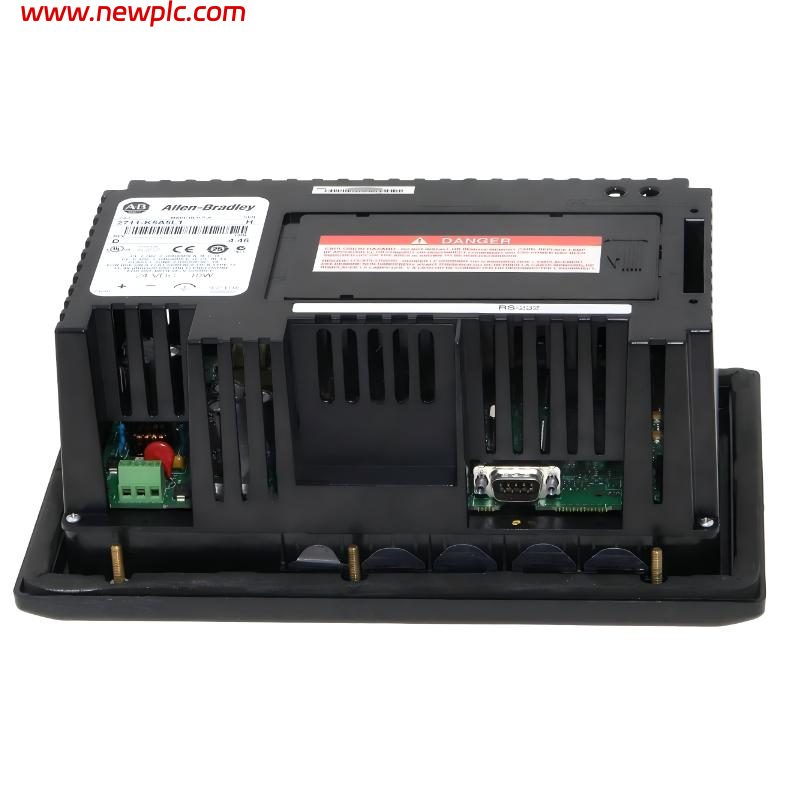

| Model Number | 2711-K5A5L1 |
| Product Type | Operator Interface Terminal / HMI |
| Display Size | 5.5 in. |
| Display Type | Monochrome Transflective LCD with LED Backlight |
| Display Resolution | 256 × 128 Pixels |
| Display Area | 120 × 60 mm |
| Display Color | Monochrome Blue Mode |
| Operator Interface | Keypad |
| Function Keys | 10 Programmable Function Keys (F1–F10) |
| Communication Port | RS-232 (DH-485) |
| Communication Cable | 2711-NC13 |
| Input Voltage | 24V DC Nominal |
| Input Voltage Range | 18–32V DC |
| Runtime Memory | 170 KB |
| Nonvolatile Memory | 240 KB |
| Backlight Type | LED |
| Backlight Life | Approx. 100,000 Hours |
| Mounting Type | Panel Mount |
| Enclosure Rating | NEMA Type 12/13, 4X Indoor, IP54, IP65 |
| Status Indicators | COMM: Green / FAULT: Red |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions (H × W × D) | 290 × 185 × 125 mm |
| Weight | Approx. 1.16 kg / 2.56 lb |
| Software Compatibility | PanelBuilder32 |
| Product Status | Discontinued / Obsolete |
FAQ
FAQ
Q1: What is the Allen-Bradley 2711-K5A5L1 used for?
A1: The 2711-K5A5L1 is a PanelView 550 HMI terminal designed for industrial machine monitoring, operator control, and process visualization in PLC-based automation systems.
Q2: What type of display does the 2711-K5A5L1 feature?
A2: This model includes a 5.5-inch monochrome transflective LCD display with LED backlighting and a resolution of 256 × 128 pixels.
Q3: Does the 2711-K5A5L1 use a touchscreen interface?
A3: No. The unit uses a keypad-only interface with ten programmable function keys (F1–F10) for operator input and navigation.
Q4: Which communication protocol is supported by this terminal?
A4: The terminal supports DH-485 communication through its built-in RS-232 communication port.
Q5: What power supply does the 2711-K5A5L1 require?
A5: The device operates on 24V DC power with an allowable input voltage range of 18–32V DC.
Q6: What software is used to configure the 2711-K5A5L1?
A6: The terminal is configured using Allen-Bradley PanelBuilder32 software for application development and runtime management.
Q7: Is the 2711-K5A5L1 still available from Allen-Bradley?
A7: No. The model has been discontinued by the manufacturer, although refurbished and surplus units are still widely available through industrial automation suppliers.
Q8: What are the dimensions and weight of the 2711-K5A5L1?
A8: The terminal measures approximately 290 × 185 × 125 mm and weighs about 1.16 kg (2.56 lb).
