Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Series | PanelView 600 Standard |
| Model Number | 2711-K6C15 |

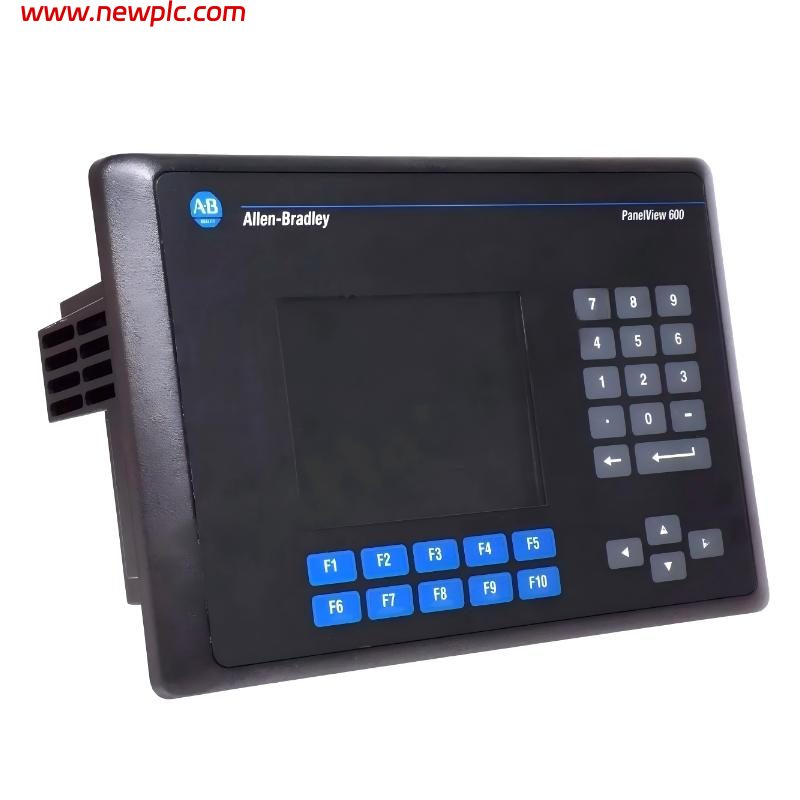

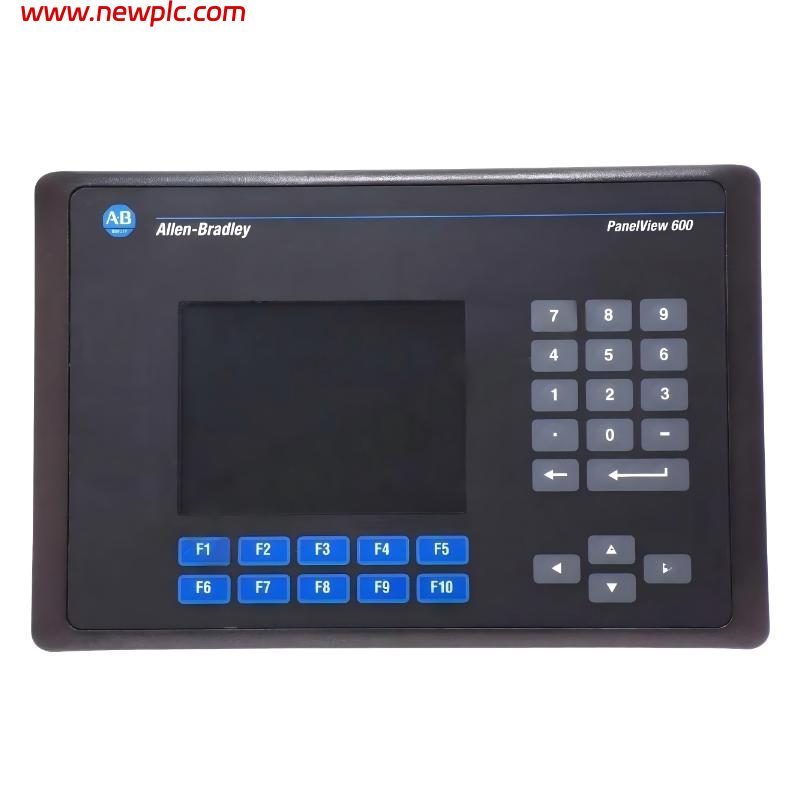

| Product Type | Operator Interface Terminal / HMI |
| Display Size | 5.7 in. |
| Display Type | Color Active Matrix TFT LCD |
| Display Resolution | 320 × 234 Pixels |
| Display Colors | 256 Colors |
| Operator Interface | Keypad |
| Function Keys | 10 Programmable Function Keys |

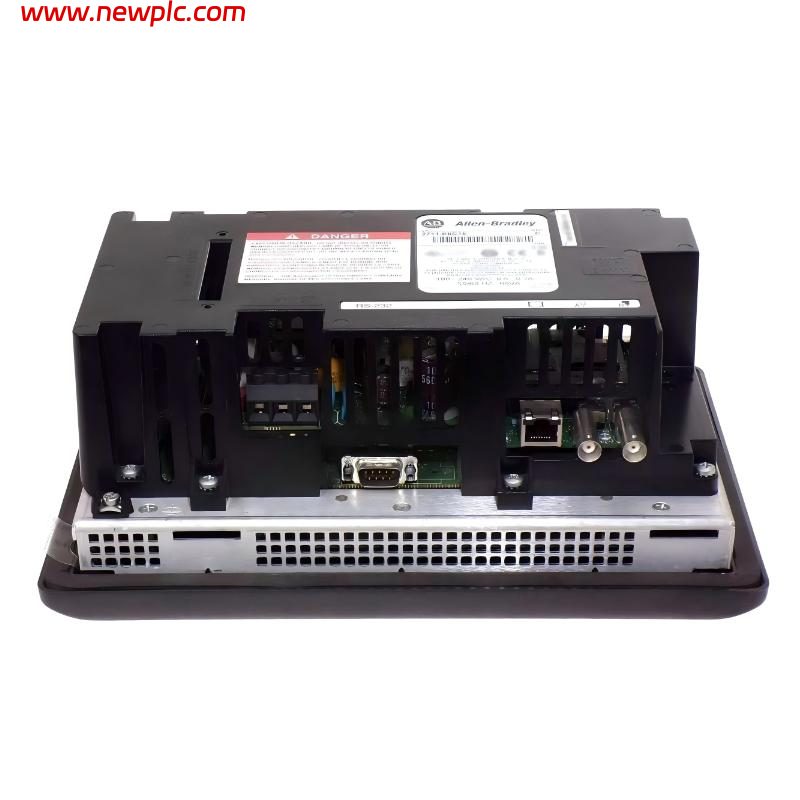

| Communication Ports | ControlNet and RS-232 Printer/Download Port |
| Communication Cable | 2711-NC14 |
| Power Supply | 85–264V AC |
| Input Frequency | 47–63 Hz |
| Runtime Memory | 240 KB |
| Software Compatibility | PanelBuilder32 |
| Backlight Type | Replaceable Backlight |
| Backlight Replacement Part | 2711-NL3 |
| Mounting Type | Panel Mount |
| Enclosure Rating | NEMA Type 12/13, 4X Indoor Rated |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions (H × W × D) | 290 × 192 × 116 mm |
| Weight | Approx. 1.87 kg / 4.13 lb |
| Product Status | Discontinued / Obsolete |
FAQ
FAQ
Q1: What is the Allen-Bradley 2711-K6C15 used for?
A1: The 2711-K6C15 is a PanelView 600 HMI terminal designed for industrial machine monitoring, operator control, and process visualization in automation systems.
Q2: What type of display does the 2711-K6C15 feature?
A2: This model includes a 5.7-inch color TFT LCD display with a resolution of 320 × 234 pixels and support for 256 colors.
Q3: Does the 2711-K6C15 use a touchscreen interface?
A3: No. The unit uses a keypad-only interface with ten programmable function keys for operator input and navigation.
Q4: Which communication protocols are supported by this terminal?
A4: The terminal supports ControlNet communication and includes an RS-232 printer/download port for configuration and data transfer.
Q5: What power supply does the 2711-K6C15 require?
A5: The device operates on 85–264V AC power with an input frequency range of 47–63 Hz.
Q6: What software is used to configure the 2711-K6C15?
A6: The terminal is configured using Allen-Bradley PanelBuilder32 software for application development and runtime management.
Q7: Is the 2711-K6C15 still available from Allen-Bradley?
A7: No. The model has been discontinued by the manufacturer, although refurbished and surplus units are still available through industrial automation suppliers.
Q8: What are the dimensions and weight of the 2711-K6C15?
A8: The terminal measures approximately 290 × 192 × 116 mm and weighs about 1.87 kg (4.13 lb).
