Technical Specifications
| Item | Specification |
|---|---|

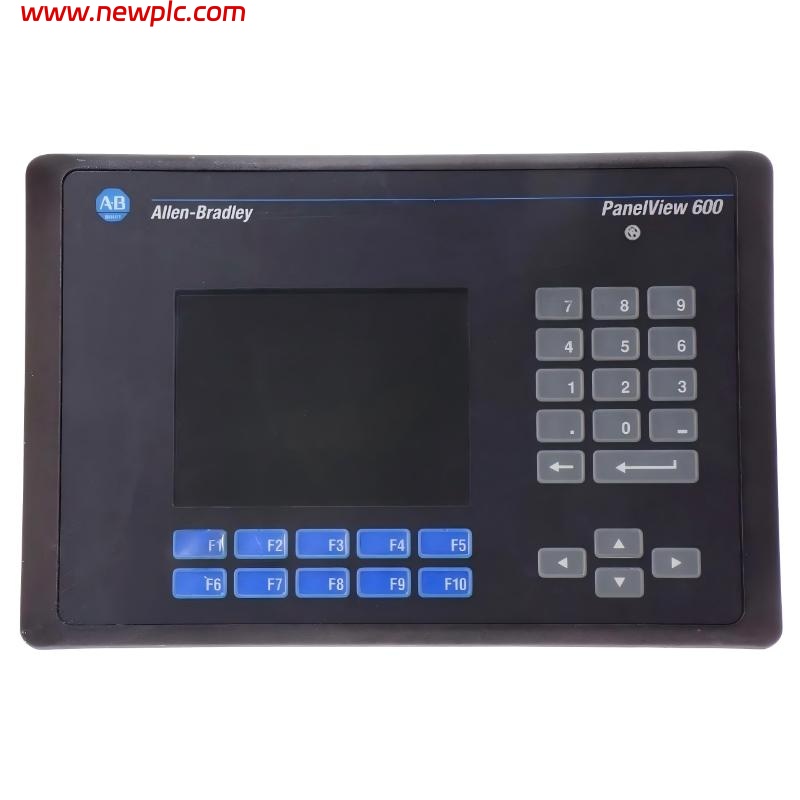

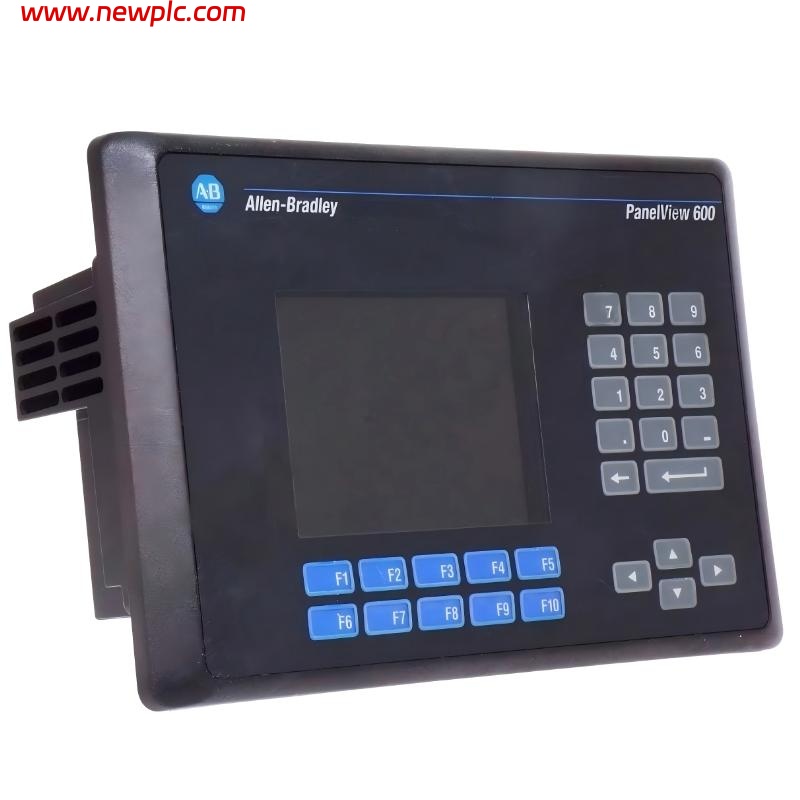

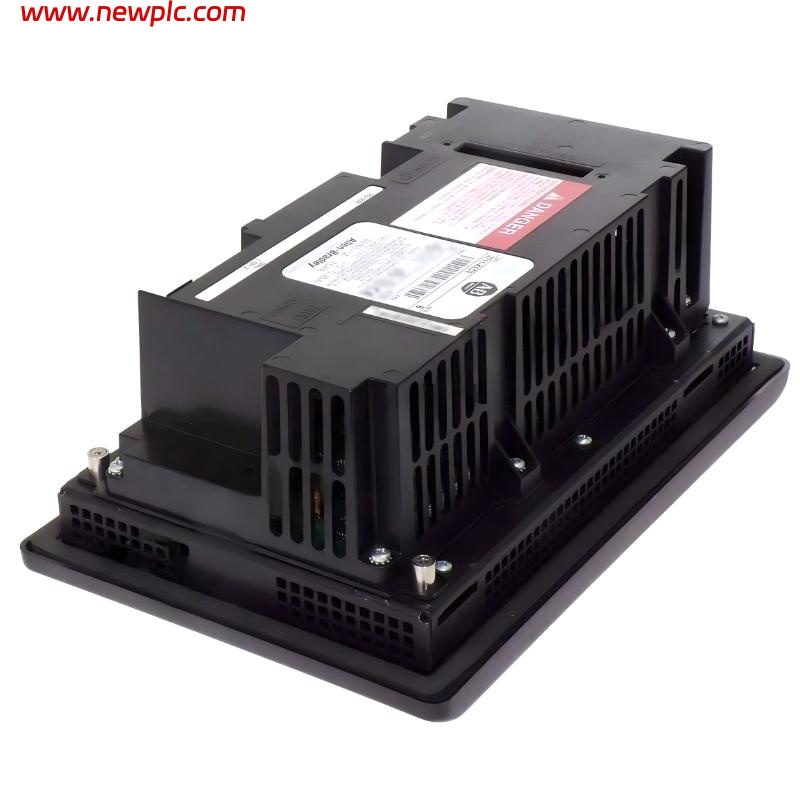

| Product Name | Allen-Bradley 2711-K6C8 |
| Product Series | PanelView 600 Standard HMI |
| Product Type | Operator Interface Terminal (HMI) |
| Application | Industrial machine monitoring and control interface |
| Display Type | Color active matrix TFT LCD |
| Display Size | 5.7–6.0 in |
| Resolution | 320 × 234 pixels |
| Input Type | Keypad |
| Function Keys | 10 programmable function keys (F1–F10) |
| Input Voltage | 85–264 V AC, 47–63 Hz |
| Communication Ports | DH+ (Data Highway Plus), RS-232 (printer) |
| Memory | 190 KB runtime / 240 KB non-volatile memory |
| Backlight Life | ~50,000 hours |
| Programming Software | PanelBuilder 32 |
| Protection Rating | NEMA 12/13, 4X / IP54–IP65 (front panel installed) |
| Mounting Type | Panel mount |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions (L × W × H) | 290 mm × 200 mm × 120 mm |
| Weight | 2.27–2.30 kg |
FAQ
FAQ
Q1. What is the 2711-K6C8 used for?
It is an HMI used for monitoring and controlling industrial processes in PLC-based systems.
Q2. What display does it have?
It features a 5.7–6 inch color TFT LCD with 320 × 234 resolution.
Q3. What input method does it use?
It uses a keypad with 10 programmable function keys.
Q4. What communication protocols are supported?
It supports DH+ communication and an RS-232 printer port.
Q5. What is the power requirement?
It operates on 85–264 V AC, 47–63 Hz.
Q6. What are its exact physical dimensions?
The dimensions are approximately 290 mm × 200 mm × 120 mm.
Q7. What is the weight of the device?
The weight is approximately 2.27–2.30 kg.
Q8. Is the 2711-K6C8 still in production?
No, it is a discontinued PanelView 600 series product.
