Technical Specifications
| Item | Specification |
|---|---|

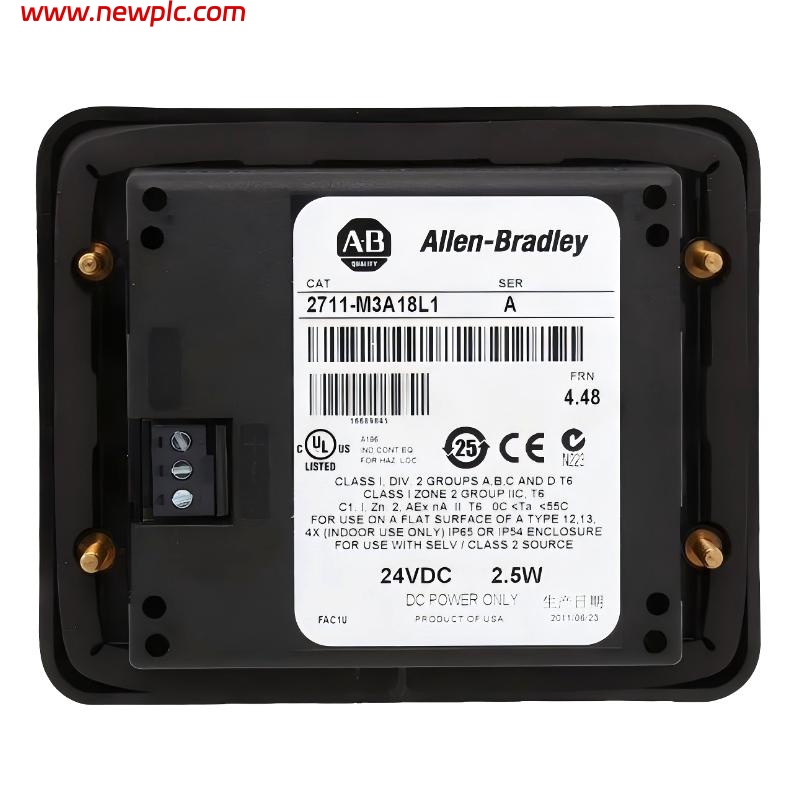

| Product Name | Allen-Bradley 2711-M3A18L1 |
| Product Series | PanelView 300 Micro |
| Product Type | Operator Interface Terminal (HMI) |
| Application | Compact machine-level monitoring and control |

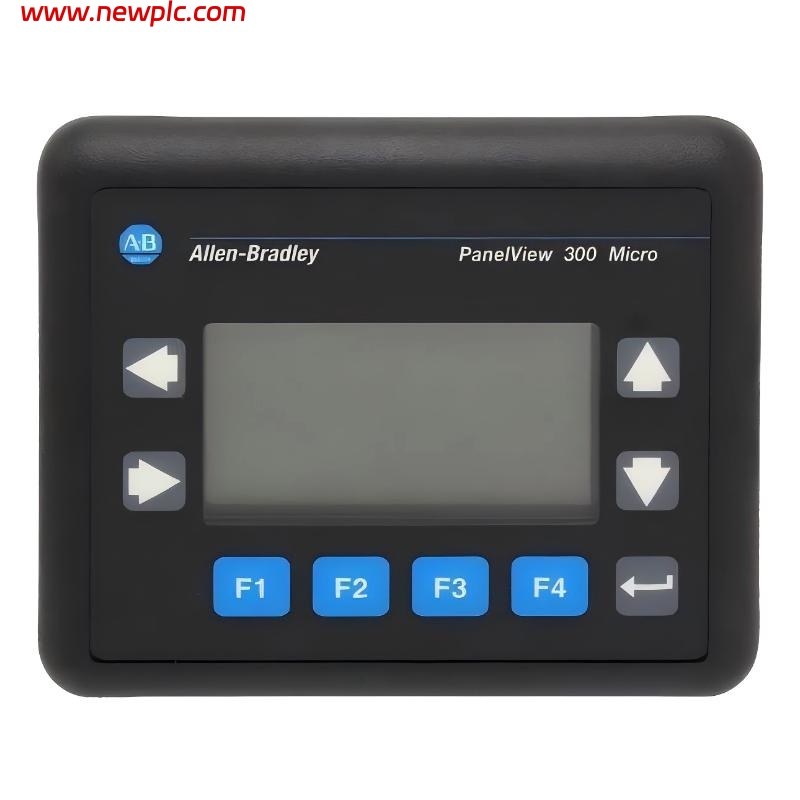

| Display Type | Monochrome transflective LCD with LED backlight |
| Display Size | 3.0 in |
| Resolution | 128 × 64 pixels |
| Display Area | 73 × 42 mm |
| Input Type | Keypad |
| Function Keys | 4 programmable function keys (F1–F4) |
| Input Voltage | 18–32 V DC (24 V DC nominal) |

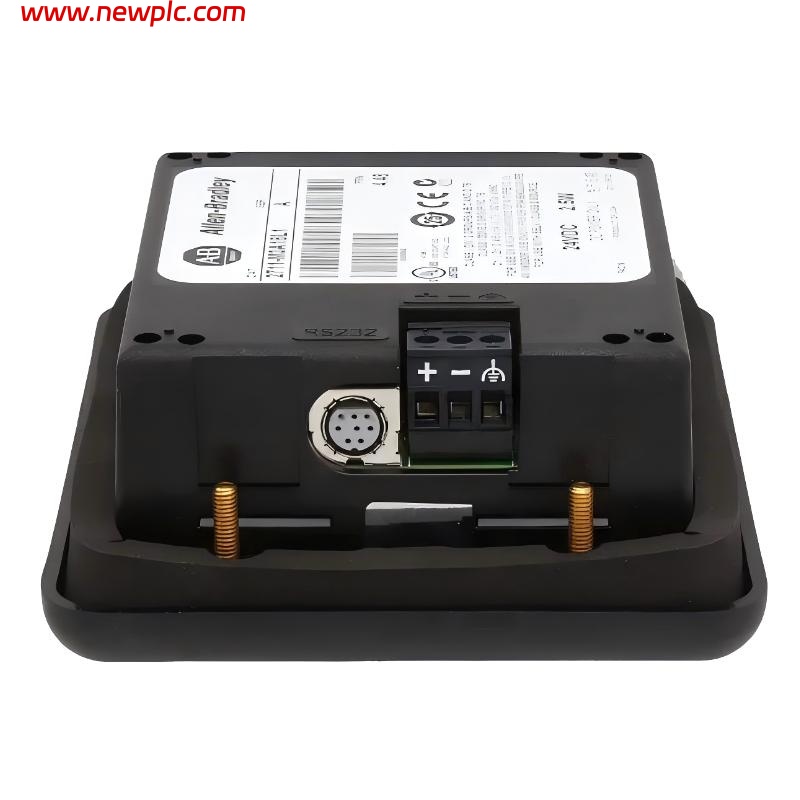

| Communication Ports | RS-232 (DF1, 8-pin mini-DIN), DH-485 |
| Memory | 170 KB runtime / 240 KB non-volatile memory |
| Backlight Life | ~100,000 hours |
| Programming Software | PanelBuilder 32 |
| Protection Rating | NEMA 12/13, 4X / IP54–IP65 |
| Mounting Type | Panel mount |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions (L × W × H) | 133 mm × 111 mm × 48 mm |
| Weight | 0.26–0.70 kg |
FAQ
FAQ
Q1. What is the 2711-M3A18L1 used for?
It is a compact HMI used for monitoring and controlling small industrial machines.
Q2. What display does it use?
It features a 3-inch monochrome LCD with 128 × 64 resolution.
Q3. What input method does it use?
It uses a keypad with 4 programmable function keys.
Q4. What communication protocols are supported?
It supports RS-232 (DF1) and DH-485 communication.
Q5. What is the power requirement?
It operates on 18–32 V DC, typically 24 V DC.
Q6. What are its exact physical dimensions?
The dimensions are 133 mm × 111 mm × 48 mm.
Q7. What is the weight of the device?
The weight is approximately 0.26–0.70 kg depending on source and configuration.
Q8. Is the 2711-M3A18L1 still in production?
No, it has been discontinued, but refurbished units are still available.
