Technical Specifications
| Item | Specification |
|---|---|

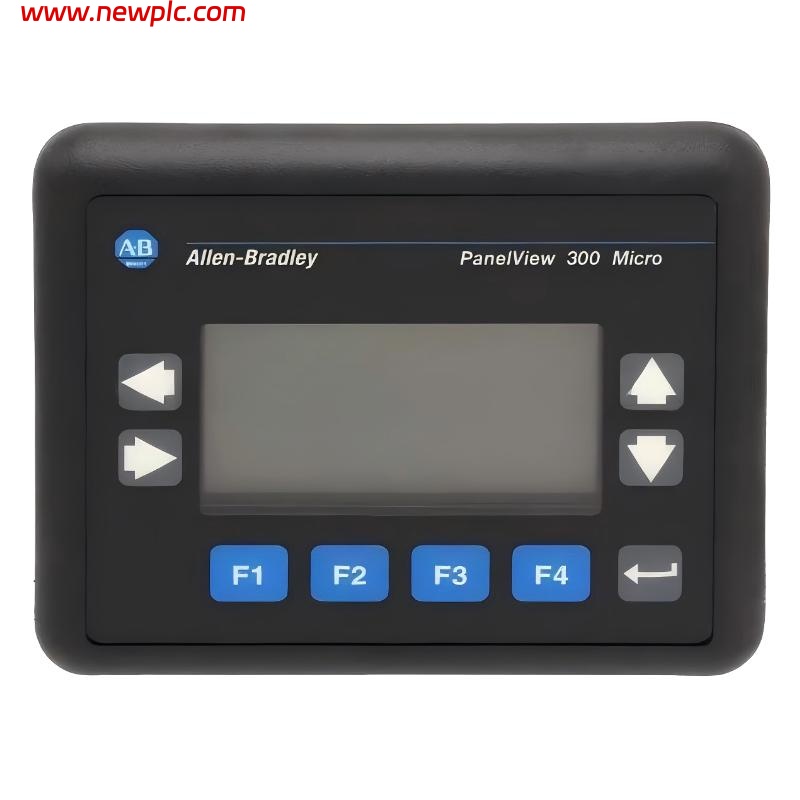

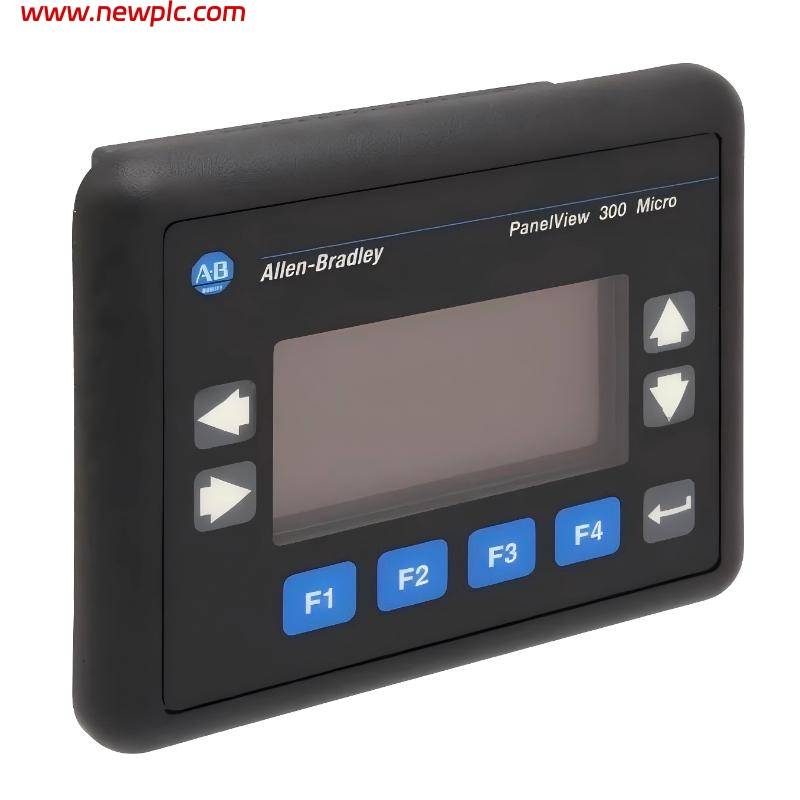

| Product Name | Allen-Bradley 2711-M3A19L1 |
| Product Series | PanelView 300 Micro |
| Product Type | Operator Interface Terminal (HMI) |
| Application | Compact machine-level monitoring and control in industrial automation |
| Display Type | Monochrome transflective LCD with LED backlight |
| Display Size | 3.0 in |
| Resolution | 128 × 64 pixels |
| Input Type | Keypad (numeric + function keys) |
| Function Keys | 4 programmable function keys (F1–F4) |
| Input Voltage | 18–32 V DC (24 V DC nominal) |

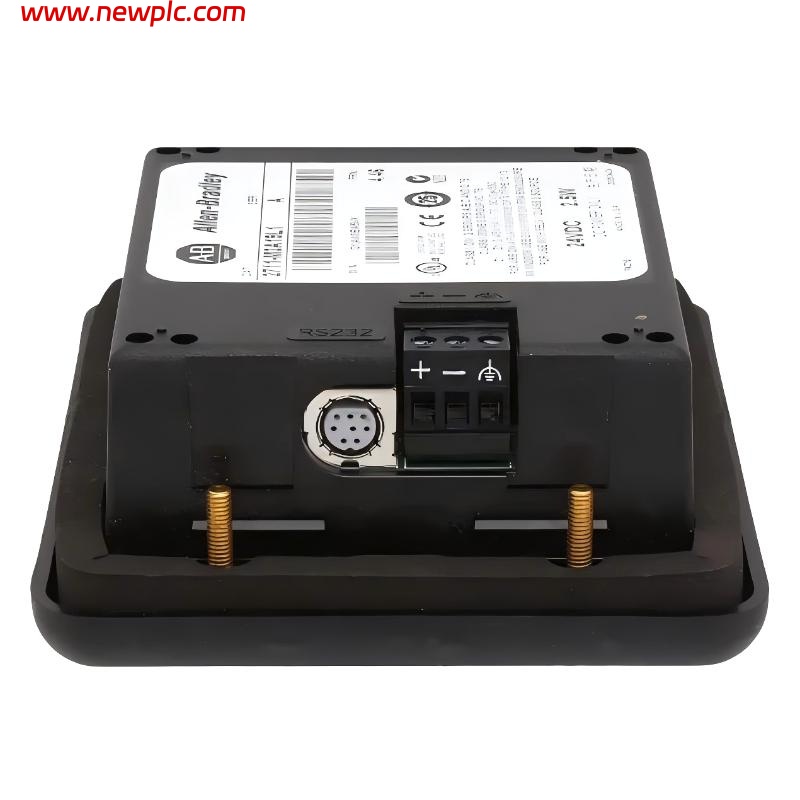

| Communication Ports | RS-232 (DH-485 protocol, 8-pin mini DIN) |
| Memory | 170 KB runtime / 240 KB non-volatile memory |
| Backlight | Non-replaceable LED backlight |
| Programming Software | PanelBuilder 32 |
| Protection Rating | NEMA 4X / IP65 (front panel when properly installed) |
| Mounting Type | Panel mount |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions (L × W × H) | 133 mm × 111 mm × 48 mm |
| Weight | 0.26–0.27 kg |
FAQ
FAQ
Q1. What is the 2711-M3A19L1 used for?
It is a compact HMI used for basic machine control and status monitoring in small automation systems.
Q2. What display does it use?
It uses a 3-inch monochrome LCD with 128 × 64 resolution.
Q3. What communication interface does it support?
It supports RS-232 with DH-485 protocol via an 8-pin mini DIN port.
Q4. What is the power requirement?
It operates on 18–32 V DC, typically 24 V DC.
Q5. What are its exact physical dimensions?
The dimensions are 133 mm × 111 mm × 48 mm.
Q6. What is the weight of the device?
The weight is approximately 0.26–0.27 kg.
Q7. What software is used for programming?
It is configured using PanelBuilder 32 software.
Q8. Is the 2711-M3A19L1 still in production?
No, it is a legacy PanelView 300 Micro model and has been discontinued.
