Technical Specifications
| Parameter | Specification |
|---|---|

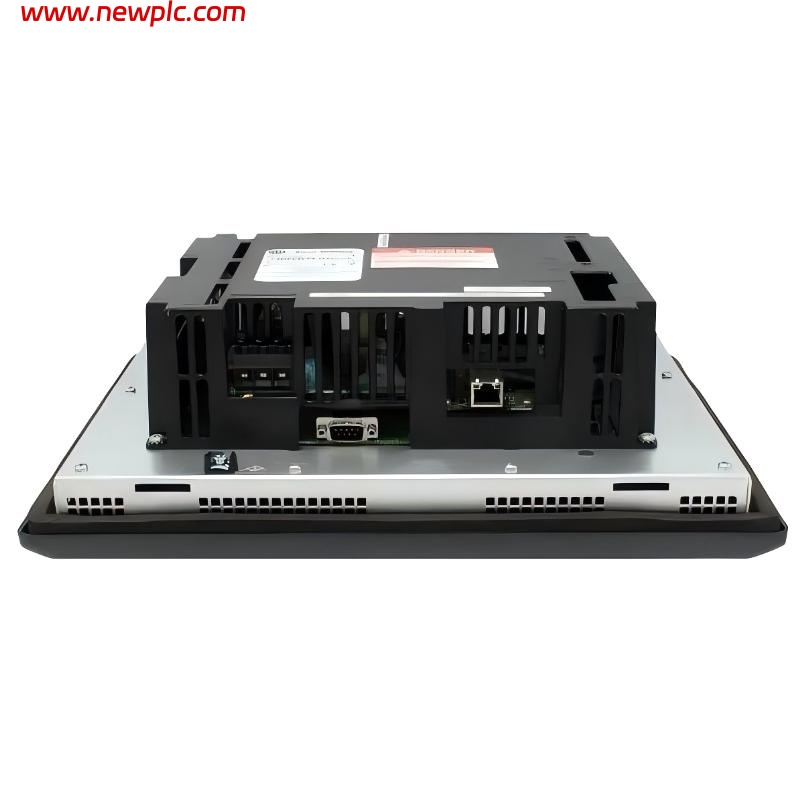

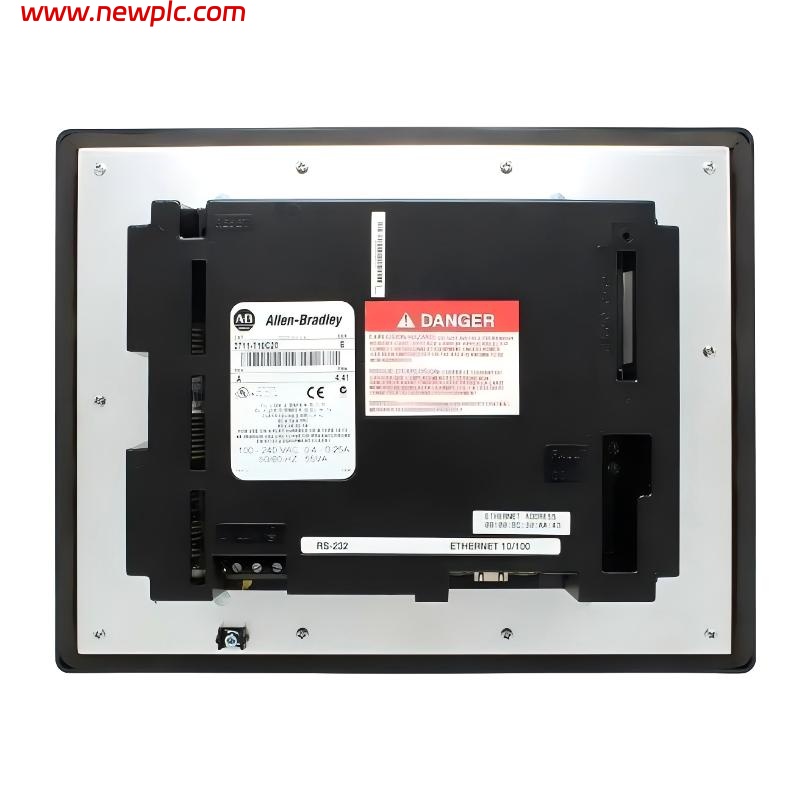

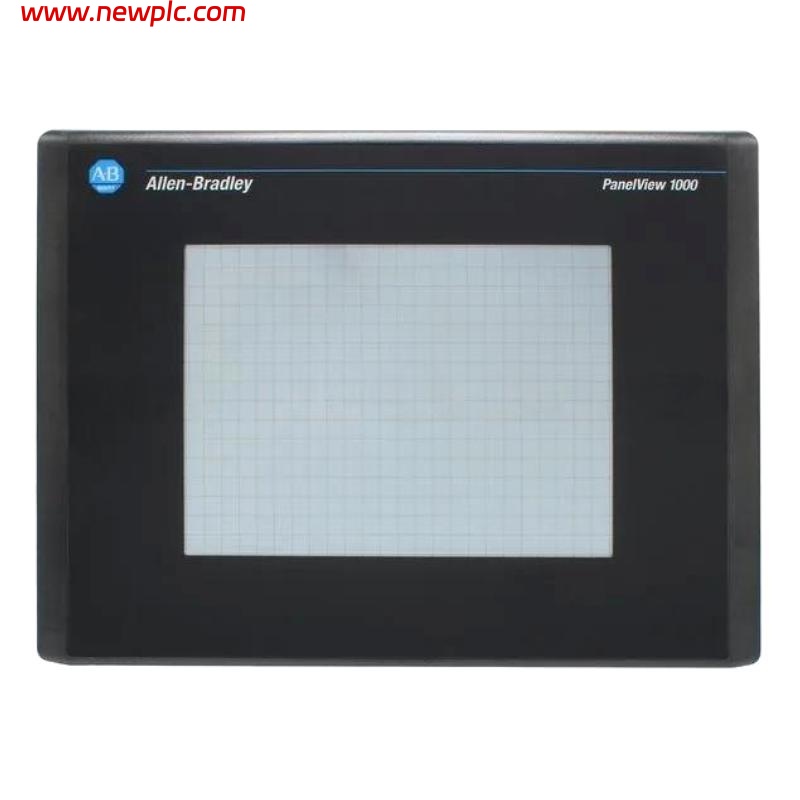

| Product Series | Allen-Bradley PanelView Standard 1000 |
| Model Number | 2711-T10C20 |
| Display Type | 10.1-inch color TFT LCD (touchscreen) |
| Resolution | 640 × 480 pixels |
| Input Method | Analog resistive touchscreen |
| Communication Ports | Ethernet, RS-232 printer port |
| Power Supply | 85–264V AC |
| Power Consumption | Approx. 55–70 VA |
| Memory | 256 KB application memory |
| Software | PanelBuilder32 |
| Enclosure Rating | NEMA Type 12/13, 4X / IP54–IP65 |
| Mounting Type | Panel mount |
| Dimensions | 285 × 375 × 115 mm (W × H × D) |
| Weight | Approx. 3.0–3.24 kg |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 5% to 95% non-condensing |
FAQ
FAQ
Q1. What is the main purpose of the 2711-T10C20?
It is an industrial HMI used for monitoring and controlling automation systems.
Q2. What display size does this model have?
It features a 10.1-inch color touchscreen display.
Q3. What communication interfaces are supported?
It supports Ethernet communication and an RS-232 printer port.
Q4. What type of power supply does it require?
It operates on 85–264V AC power.
Q5. Is this product still in production?
No, it has been discontinued and is considered obsolete.
Q6. What software is used for configuration?
It uses PanelBuilder32 software for application development.
Q7. What kind of protection rating does it have?
It offers NEMA 12/13 or 4X protection, suitable for industrial environments.
Q8. Can this unit still be repaired or replaced?
Yes, refurbished units and repair services are commonly available for this model.
