Technical Specifications
| Parameter | Specification |
|---|---|

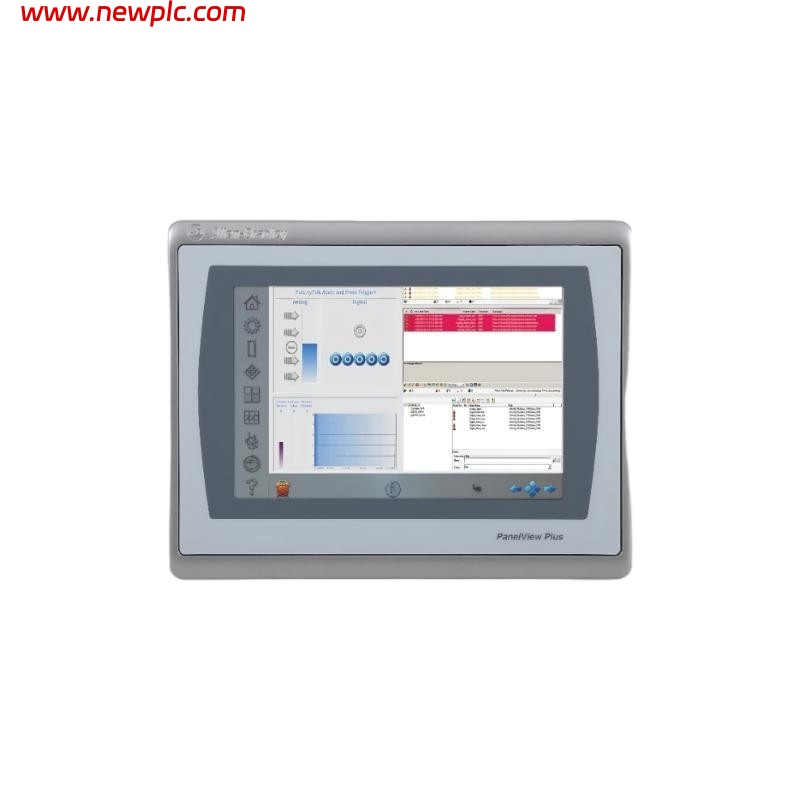

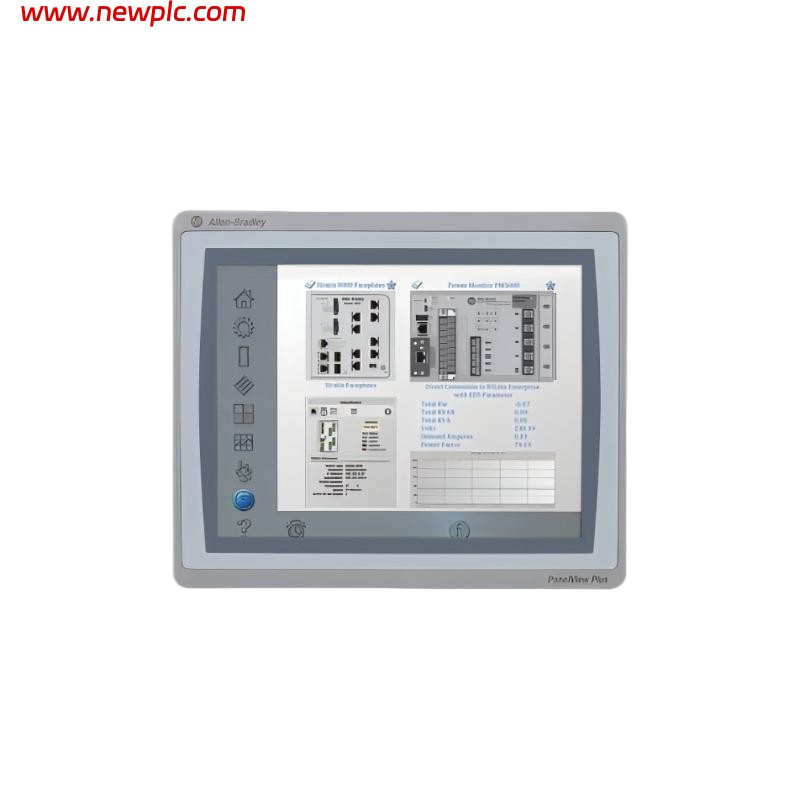

| Product Series | Allen-Bradley PanelView Plus 7 Standard |
| Model Number | 2711P-T7C21D8S |
| Display Type | 6.5-inch TFT color LCD (touchscreen) |
| Resolution | 640 × 480 pixels (VGA, 18-bit color) |
| Input Method | Analog resistive touchscreen |
| Communication Ports | 1 × Ethernet (10/100 Base-T), 2 × USB |
| Power Supply | 18–30V DC (24V DC nominal) |
| Power Consumption | Max. approx. 35–50 W |
| Processor | Embedded industrial processor |
| Memory | 512 MB RAM / 512 MB storage (approx. 80 MB user memory) |
| Operating System | Windows CE |
| Software | FactoryTalk View Machine Edition |
| Enclosure Rating | NEMA 4X, 12, 13 / IP66 (front panel) |
| Mounting Type | Panel mount |
| Dimensions | 170 × 212 × 56.5 mm (W × H × D) |
| Weight | Approx. 0.85 kg |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Relative Humidity | 5% to 95% non-condensing |
FAQ
FAQ
Q1. What is the primary function of the 2711P-T7C21D8S?
It is an industrial HMI used for monitoring and controlling automation systems.
Q2. What display does this model use?
It features a 6.5-inch TFT color touchscreen with VGA resolution.
Q3. What communication interfaces are available?
It includes one Ethernet port and two USB ports for connectivity.
Q4. What is the power requirement?
It operates on 18–30V DC, typically 24V DC.
Q5. Which software is used for configuration?
FactoryTalk View Machine Edition is used for setup and operation.
Q6. Is it suitable for industrial environments?
Yes, it has NEMA 4X/12/13 and IP66 front protection for harsh conditions.
Q7. What is the memory capacity of the device?
It includes 512 MB RAM and 512 MB storage memory.
Q8. Can external storage be used?
Yes, it supports USB drives and SD cards for additional storage.
