Technical Specifications
| Parameter | Specification |
|---|---|

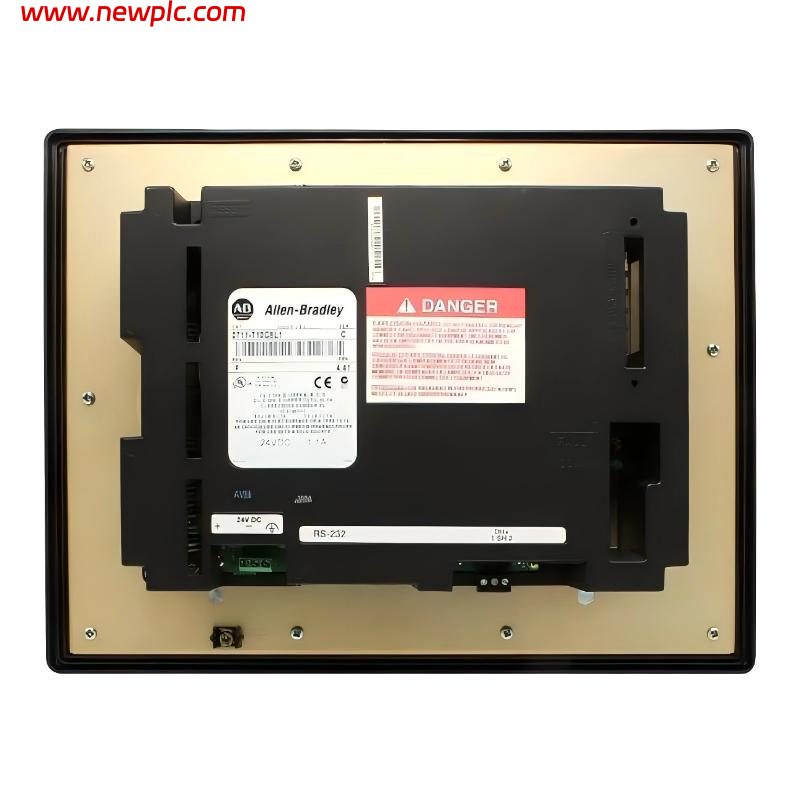

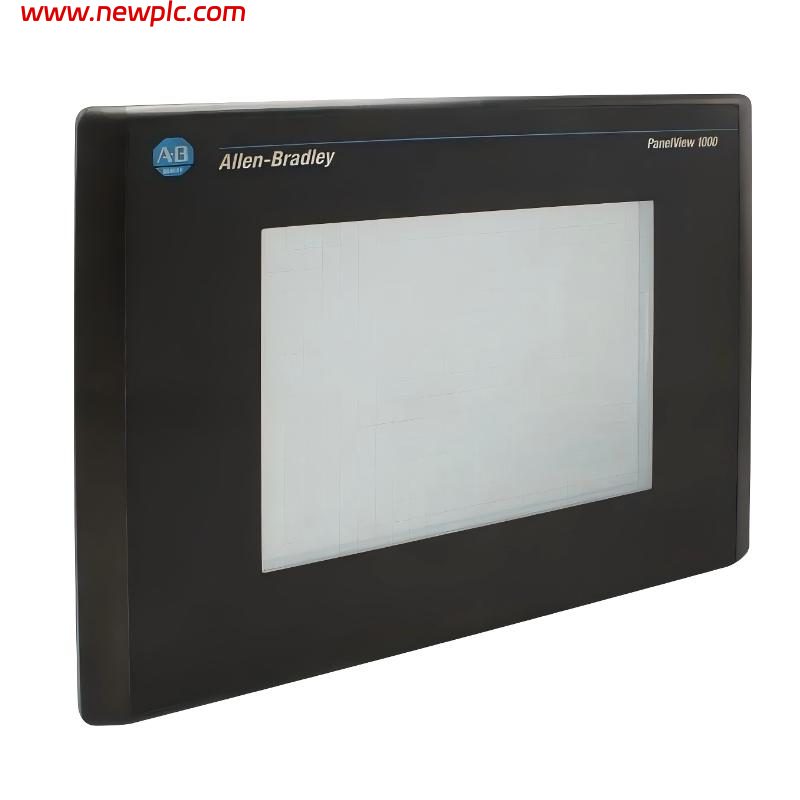

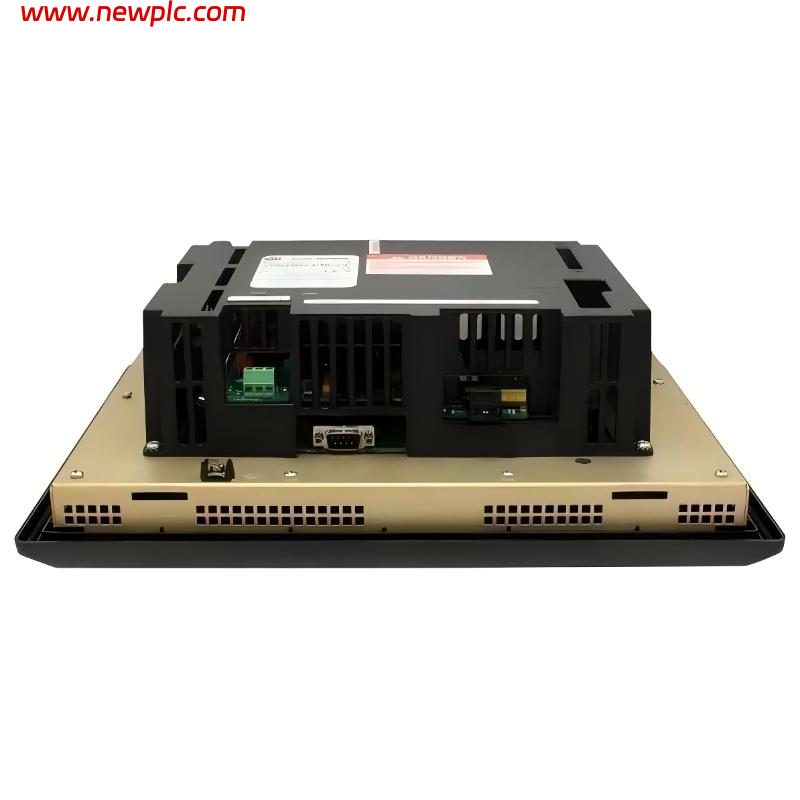

| Product Name | Allen-Bradley PanelView 1000 Standard |
| Model Number | 2711-T10C8L1 |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PanelView Standard 1000 |
| Display Size | 10.4 inches |
| Display Type | Color Active Matrix TFT LCD |
| Resolution | 640 × 480 pixels |
| Input Type | Resistive Touchscreen |
| Communication Ports | Data Highway Plus (DH+) + RS-232 Printer Port |
| Power Supply | 18–32V DC |
| Nominal Voltage | 24V DC |
| Memory | Approx. 256 KB application memory (varies by configuration) |
| Mounting Type | Panel Mount |
| Enclosure Rating | NEMA 12/13 / 4X (Indoor use) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions | Approx. 310 × 230 × 130 mm |
| Weight | Approx. 3.6–4.0 kg |
| Application | Industrial HMI for machine control and process visualization |
FAQ
FAQ
Q1: What is the Allen-Bradley 2711-T10C8L1 used for?
The 2711-T10C8L1 is a PanelView 1000 HMI terminal used for industrial machine control, operator interface, and process monitoring in automation systems.
Q2: Does the 2711-T10C8L1 support touchscreen operation?
Yes, it uses a resistive touchscreen interface that allows operators to interact directly with industrial control applications.
Q3: What communication protocols does the 2711-T10C8L1 support?
It supports Data Highway Plus (DH+) and RS-232 printer communication for integration with PLC systems and industrial peripherals.
Q4: What is the display resolution of this model?
The display resolution is 640 × 480 pixels, providing standard VGA-level visualization for industrial HMI screens.
Q5: What power supply does the 2711-T10C8L1 require?
It operates on a 18–32V DC power input, with 24V DC as the nominal supply voltage.
Q6: Is the 2711-T10C8L1 still in production?
No, this model is discontinued and is typically available only through surplus or refurbished industrial equipment suppliers.
Q7: What is the approximate weight of the unit?
The weight is approximately 3.6–4.0 kg depending on configuration and enclosure type.
Q8: What environment is this HMI suitable for?
It is designed for industrial environments and featur
