Technical Specifications
| Parameter | Specification |
|---|---|

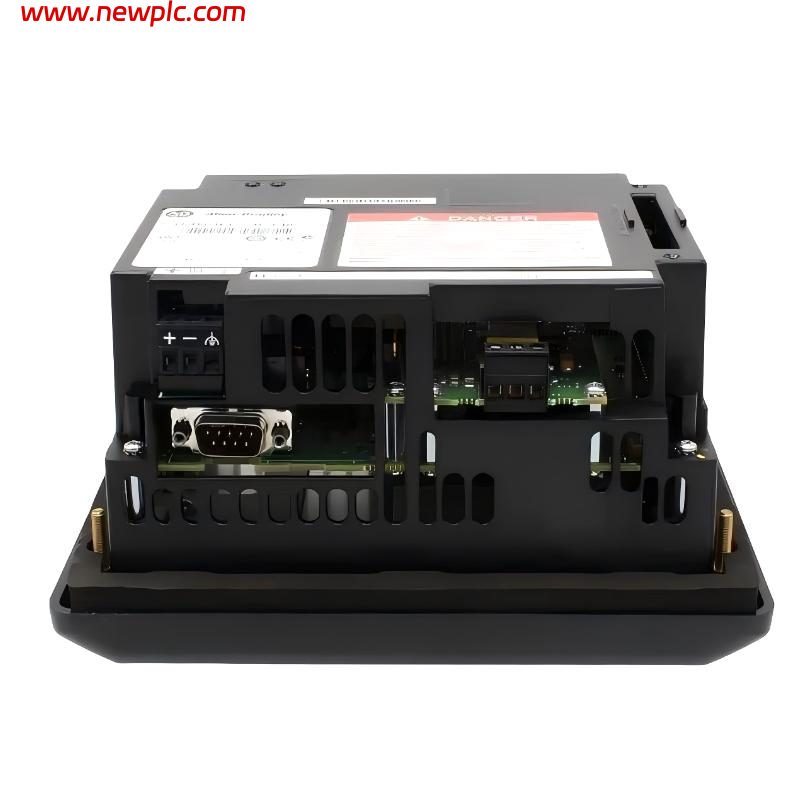

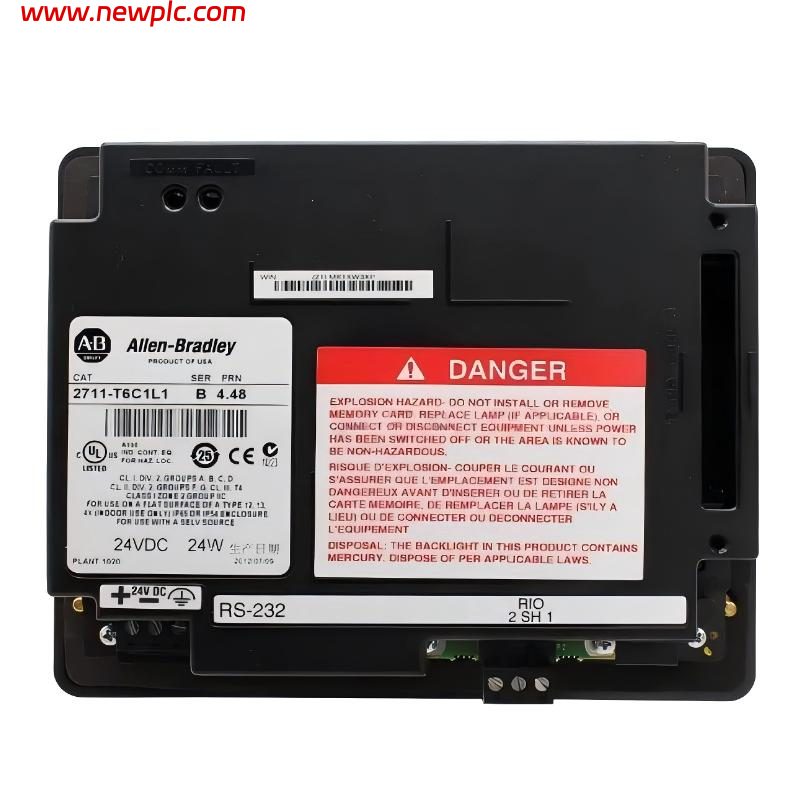

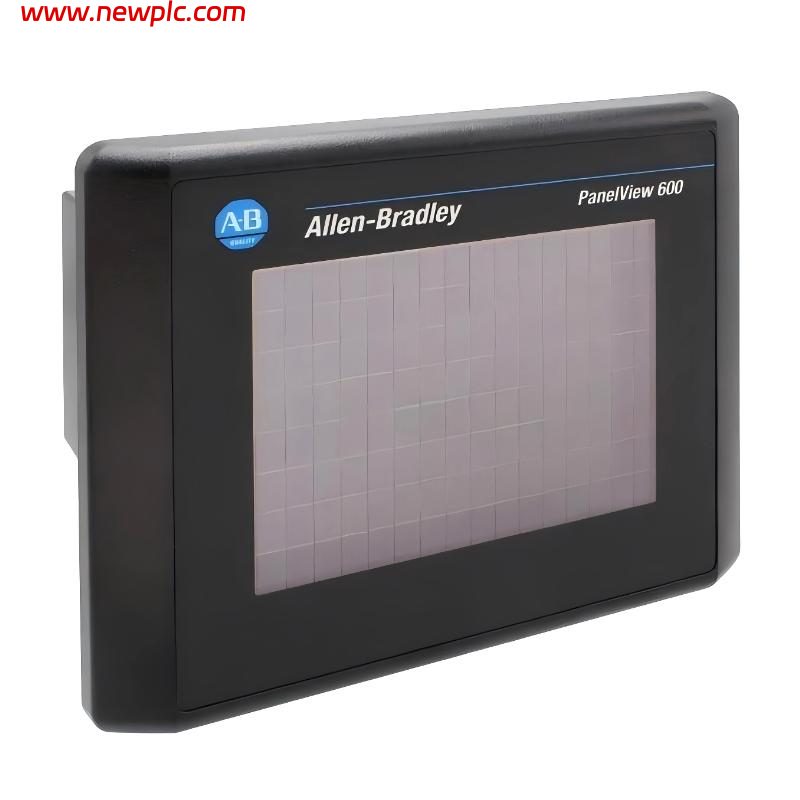

| Product Name | Allen-Bradley PanelView 600 Standard |
| Model Number | 2711-T6C1L1 |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PanelView Standard 600 |
| Display Size | 5.5–6.0 inches (approx. depending on revision) |
| Display Type | Color Active Matrix TFT LCD |
| Resolution | 320 × 240 pixels |
| Input Type | Analog Resistive Touchscreen |
| Communication Ports | Remote I/O (RIO), RS-232 Printer Port |
| Power Supply | 18–32V DC |
| Nominal Voltage | 24V DC |
| Power Consumption | Approx. 24 W |
| Memory | Approx. 190 KB application runtime memory |
| Mounting Type | Panel Mount |
| Enclosure Rating | NEMA 12/13 / 4X (front, installed condition) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions | Approx. 190 × 150 × 100 mm |
| Weight | Approx. 0.9–1.0 kg |
| Application | Industrial HMI for machine control and process visualization |
FAQ
FAQ
Q1: What is the Allen-Bradley 2711-T6C1L1 used for?
The 2711-T6C1L1 is a PanelView 600 HMI terminal used for industrial machine control, operator interface, and process monitoring in automation systems.
Q2: Does the 2711-T6C1L1 support touchscreen operation?
Yes, it uses a color resistive touchscreen that allows operators to interact directly with machine control applications.
Q3: What communication interfaces are available on the 2711-T6C1L1?
It supports Remote I/O (RIO) and RS-232 printer communication ports for integration with PLC systems and industrial devices.
Q4: What is the display resolution of this model?
The display resolution is 320 × 240 pixels, suitable for compact industrial visualization screens.
Q5: What power supply does the 2711-T6C1L1 require?
It operates on 18–32V DC, with 24V DC as the nominal operating voltage.
Q6: Is the 2711-T6C1L1 still in production?
No, this model is discontinued and is typically found in surplus or refurbished industrial equipment markets.
Q7: What is the approximate weight of the unit?
The weight is around 0.9 to 1.0 kg depending on configuration.
Q8: What industries commonly use this HMI?
It is widely used in manufacturing, packaging, and process control systems, especially in legacy Allen-Bradley PLC environments.
