Technical Specifications
| Parameter | Specification |
|---|---|

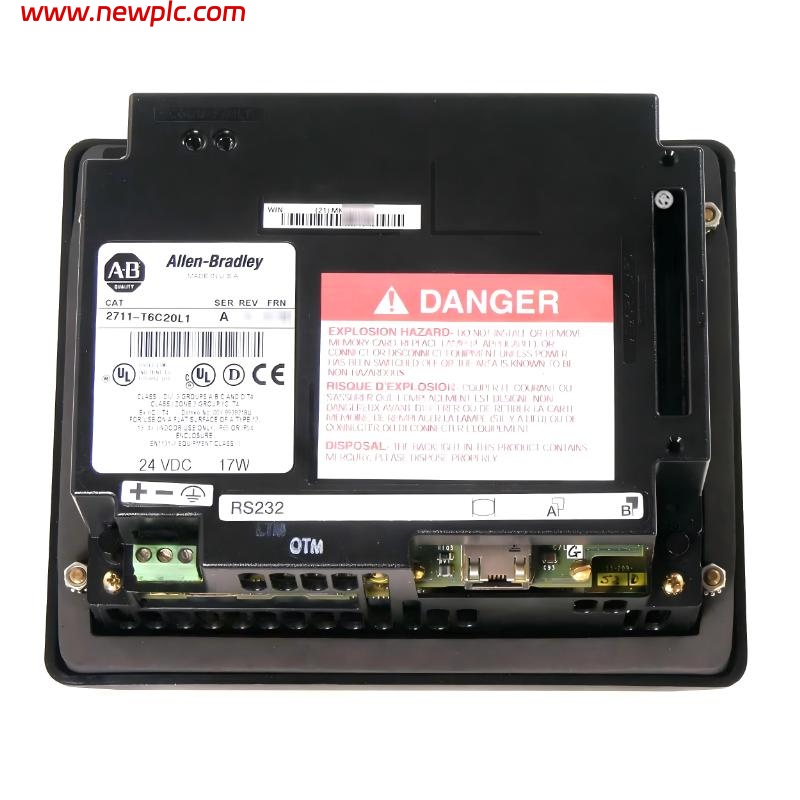

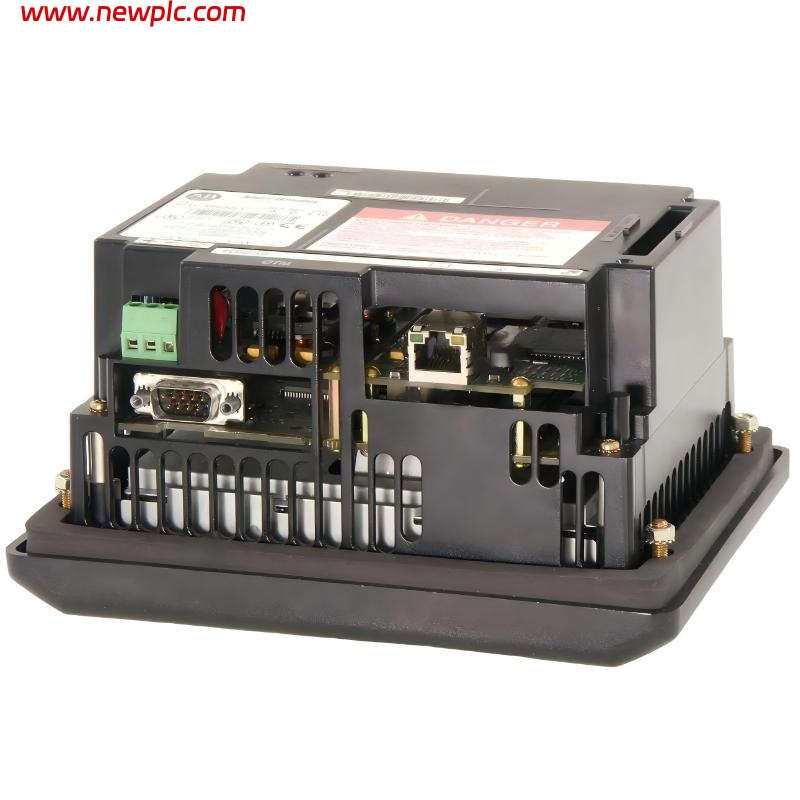

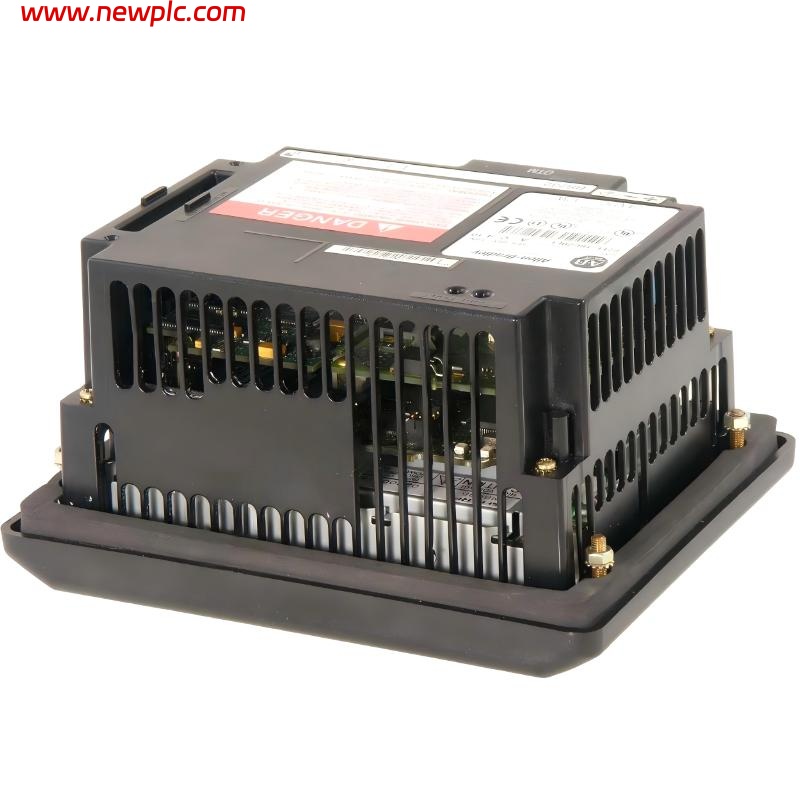

| Product Series | Allen-Bradley PanelView Standard 600 |
| Model Number | 2711-T6C20L1 |
| Display Type | 6-inch color TFT LCD (touchscreen) |
| Resolution | 320 × 240 pixels |
| Input Method | Analog resistive touchscreen |
| Communication Ports | Ethernet (10/100 Mbps), RS-232 printer port |
| Power Supply | 18–32V DC (24V DC nominal) |
| Power Consumption | Approx. 24 W max |
| Processor | Embedded industrial controller |
| Memory | 240 KB application memory |
| Software | PanelBuilder32 |
| Enclosure Rating | NEMA 4X / 12 / 13 (front panel dependent on installation) |
| Mounting Type | Panel mount |
| Dimensions | 152 × 185 × 96 mm (W × H × D) |
| Weight | Approx. 2.0 kg |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 5% to 95% non-condensing |
FAQ
FAQ
Q1. What is the 2711-T6C20L1 used for?
It is an industrial HMI used for machine monitoring, control, and operator interface tasks.
Q2. What display does this model have?
It features a 6-inch color touchscreen display with 320 × 240 resolution.
Q3. Does it support Ethernet communication?
Yes, it supports 10/100 Mbps Ethernet connectivity for industrial networking.
Q4. What power supply does it require?
It operates on 18–32V DC power input.
Q5. What software is used to configure it?
It is programmed using PanelBuilder32 software.
Q6. Does it include a printer port?
Yes, it has an RS-232 port for connecting alarm or event printers.
Q7. Is this model still in production?
No, it is an older PanelView Standard unit and has been discontinued.
Q8. What type of environments can it be used in?
It is designed for industrial environments with NEMA-rated front protection for dust and water resistance.
Tags
Packing & Delivery
We will use wear-resistant cartons to seal the boxes, and take photos for your confirmation before sealing. We will pack the boxes only after confirmation.
For express delivery, we will use DHL, UPS, TNT, FedEx and EMS.
Please rest assured that we have a deep cooperation with express delivery companies and can ensure that your goods are delivered to you in good condition.
