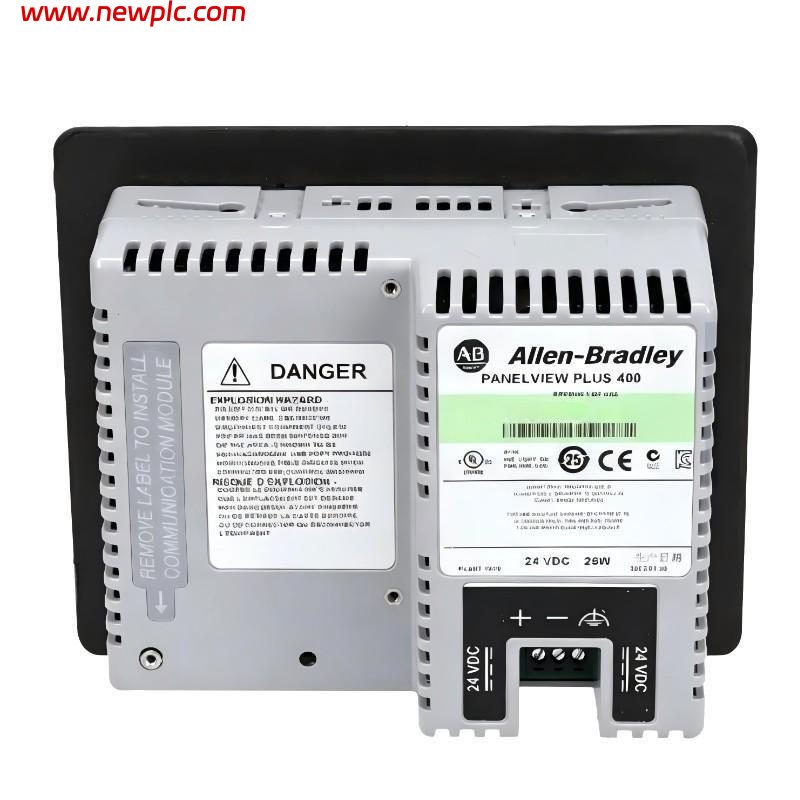

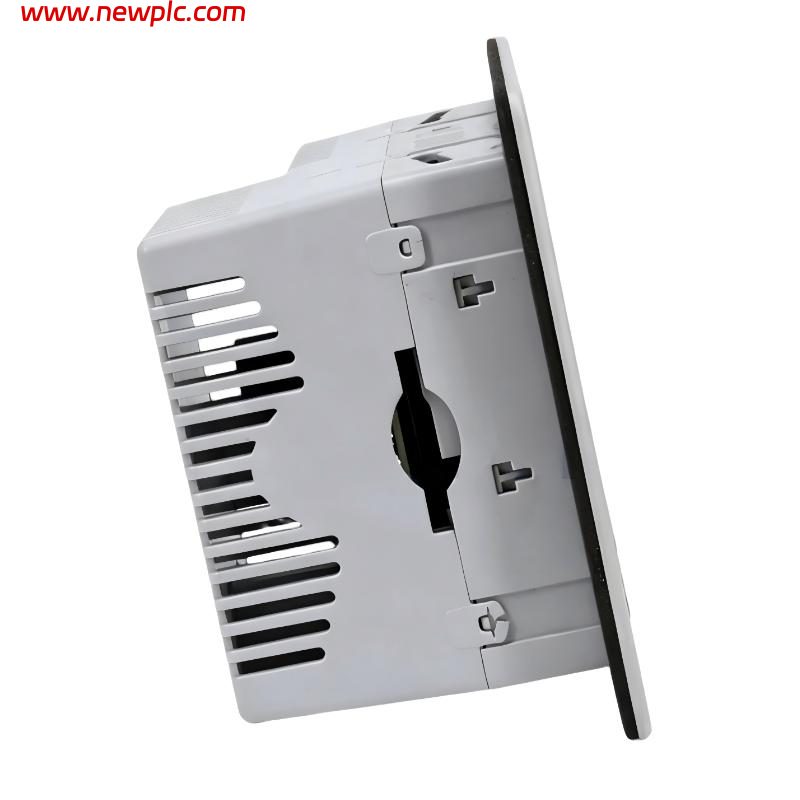

Allen Bradley 2711P-B4C5D8 Operator Interface Terminal / HMI

FAQ

Q1: What is the Allen-Bradley 2711P-B4C5D8 used for?
A1: The 2711P-B4C5D8 is a PanelView Plus 6 400 HMI terminal designed for industrial automation applications such as machine monitoring, operator control, and process visualization.

Q2: What type of display does the 2711P-B4C5D8 feature?
A2: This model includes a 3.5-inch color TFT LCD display with a resolution of 320 × 240 pixels and 18-bit color graphics.

Q3: Does the terminal support both keypad and touchscreen operation?

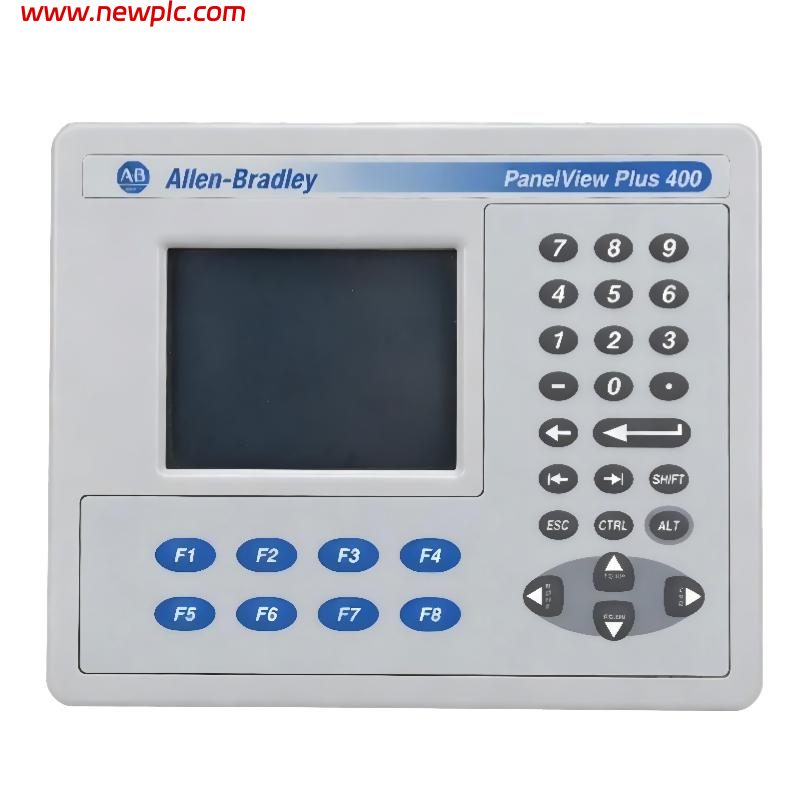

A3: Yes. The unit combines a resistive touchscreen with eight programmable function keys for flexible machine operation and navigation.

Q4: Which communication interfaces are available on the 2711P-B4C5D8?
A4: The terminal includes RS-232 communication, one USB host port, and one USB device port for peripheral connectivity and data transfer.

Q5: What power input does the 2711P-B4C5D8 require?
A5: The terminal operates on 18–30V DC input power with a nominal operating voltage of 24V DC.

Q6: What software is used to configure this HMI terminal?
A6: The 2711P-B4C5D8 is configured using FactoryTalk View Machine Edition software from Rockwell Automation.

Q7: Is the 2711P-B4C5D8 still manufactured by Allen-Bradley?
A7: No. This model has been discontinued, although refurbished and surplus units are still available from industrial automation suppliers.

Q8: What are the dimensions and weight of the 2711P-B4C5D8?
A8: The terminal measures approximately 152 × 185 × 60 mm and weighs about 0.47 kg (1.04 lb).
