Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Series | PanelView Plus 6 1250 |
| Model Number | 2711P-T12C4D8 |

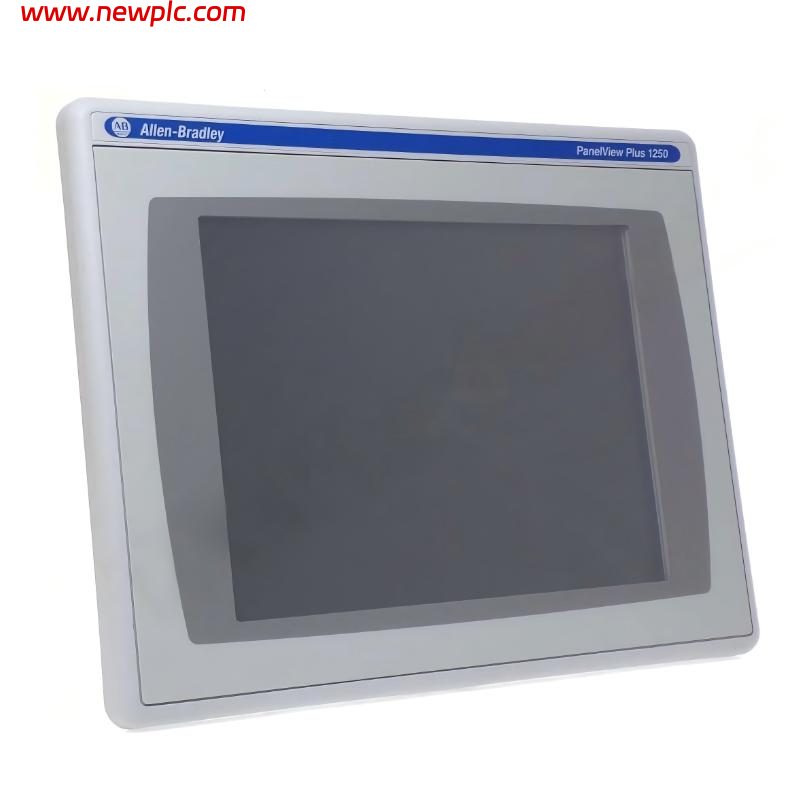

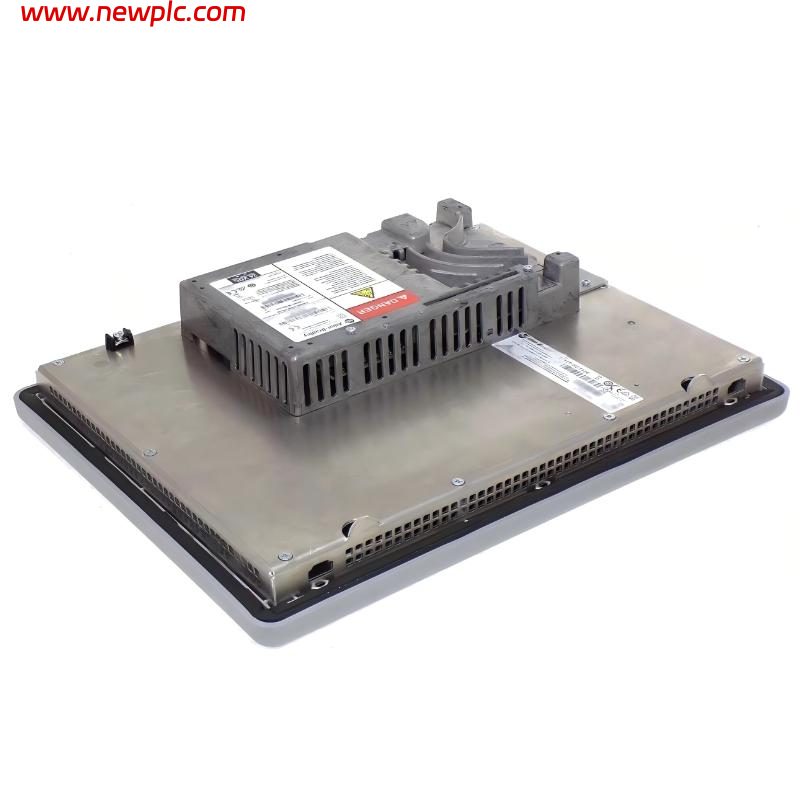

| Product Type | Operator Interface Terminal / HMI |
| Display Size | 12.1 in. |
| Display Type | Color Active-Matrix TFT LCD |
| Display Resolution | 800 × 600 Pixels |
| Display Area | 246 × 184 mm |
| Display Colors | 18-Bit Color Graphics |
| Operator Interface | Touchscreen |
| Touchscreen Type | Analog Resistive |

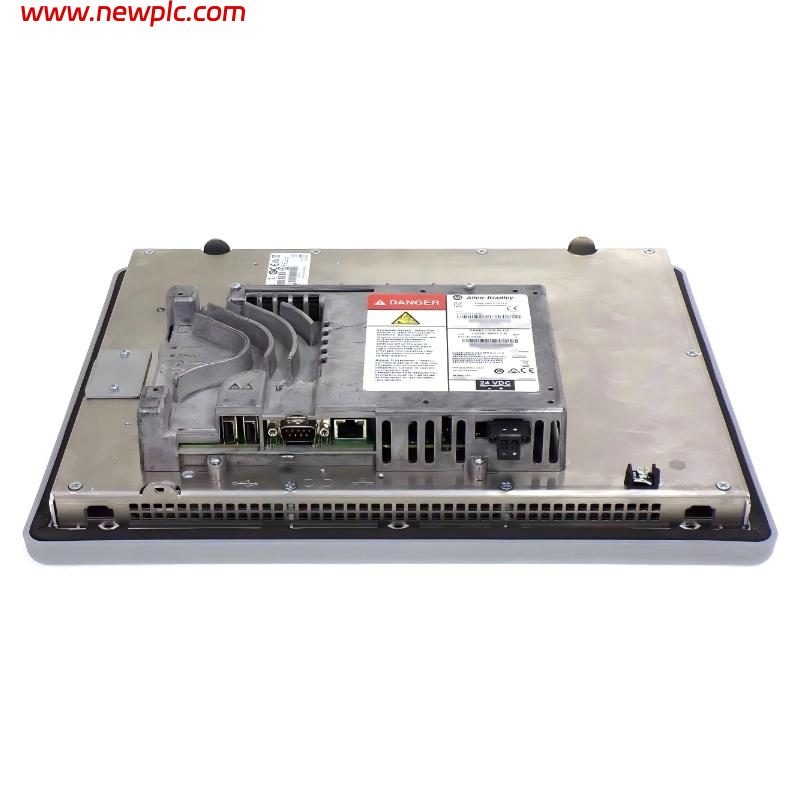

| Communication Ports | Ethernet, RS-232, USB Host |
| Communication Protocol | EtherNet/IP |
| Ethernet Speed | 10/100 Mbps |
| USB Ports | 2 USB Host Ports |
| Power Supply | 18–32V DC |
| Nominal Input Voltage | 24V DC |
| Power Consumption | Approx. 70 W |
| Internal Memory | 512 MB RAM / 512 MB Flash |
| External Storage | Secure Digital (SD) Card Slot |
| Operating System | Windows CE 6.0 |
| Backlight Type | Replaceable CCFL Backlight |
| Backlight Life | Approx. 50,000 Hours |
| Mounting Type | Panel Mount |
| Enclosure Rating | NEMA Type 12/13, 4X Indoor / IP54, IP65 |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Dimensions (H × W × D) | 282 × 363 × 55 mm |
| Weight | Approx. 3.2 kg / 7 lb |
| Software Compatibility | FactoryTalk View Machine Edition |
| Compatible Logic Module | 2711P-RP8D |
| Compatible Display Module | 2711P-RDT12C |
| Product Status | Discontinued / Obsolete |
FAQ
FAQ
Q1: What is the Allen-Bradley 2711P-T12C4D8 used for?
A1: The 2711P-T12C4D8 is a PanelView Plus 6 1250 HMI terminal designed for industrial automation applications, including machine monitoring, operator control, and process visualization.
Q2: What type of display does the 2711P-T12C4D8 feature?
A2: This model includes a 12.1-inch color active-matrix TFT LCD display with an 800 × 600 resolution and 18-bit color graphics.
Q3: Does the 2711P-T12C4D8 support touchscreen operation?
A3: Yes. The terminal uses an analog resistive touchscreen designed for industrial operator interaction and process navigation.
Q4: Which communication interfaces are available on the 2711P-T12C4D8?
A4: The unit supports EtherNet/IP communication and includes Ethernet, RS-232, and USB host ports for industrial connectivity.
Q5: What power input does the 2711P-T12C4D8 require?
A5: The terminal operates on 18–32V DC input power with a nominal operating voltage of 24V DC.
Q6: What software is used to configure this HMI terminal?
A6: The 2711P-T12C4D8 is configured using FactoryTalk View Machine Edition software from Rockwell Automation.
Q7: Is the 2711P-T12C4D8 still manufactured by Allen-Bradley?
A7: No. Rockwell Automation discontinued the 2711P-T12C4D8, although refurbished and surplus units are still available through industrial automation suppliers.
Q8: What are the dimensions and weight of the 2711P-T12C4D8?
A8: The terminal measures approximately 282 × 363 × 55 mm and weighs about 3.2 kg (7 lb).
