Allen Bradley 2711P-T4W21D8S Color TFT LCD Touchscreen

FAQ

Q1: What is the Allen-Bradley 2711P-T4W21D8S used for?
The 2711P-T4W21D8S is a PanelView Plus 7 Standard HMI terminal used for machine control, process monitoring, and operator interface applications in industrial automation systems.

Q2: What screen size does the 2711P-T4W21D8S have?

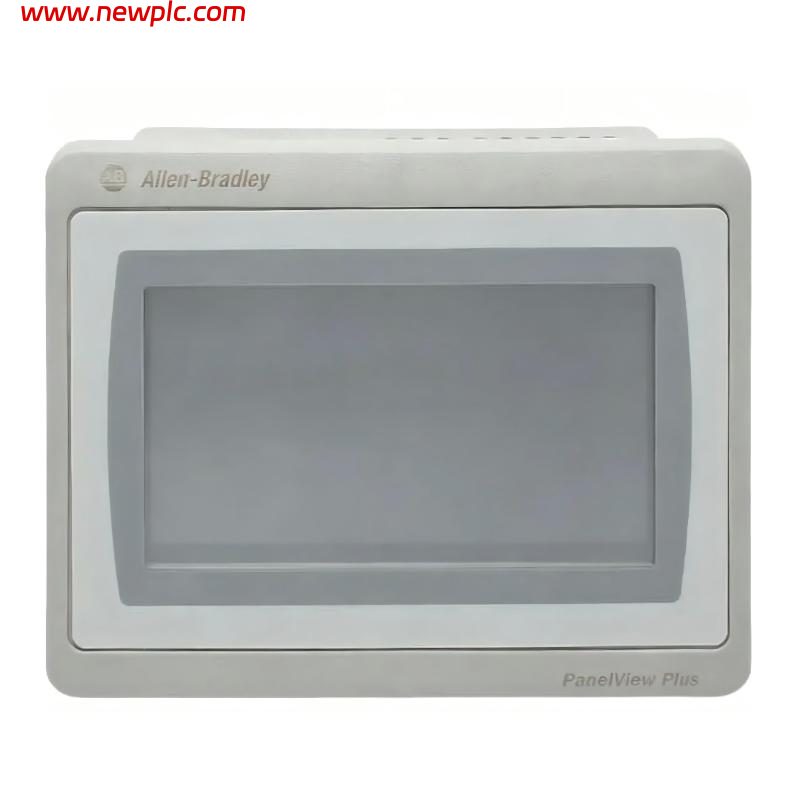

It features a 4.3-inch widescreen color TFT display designed for compact control panel installations.

Q3: What communication options are available on this model?

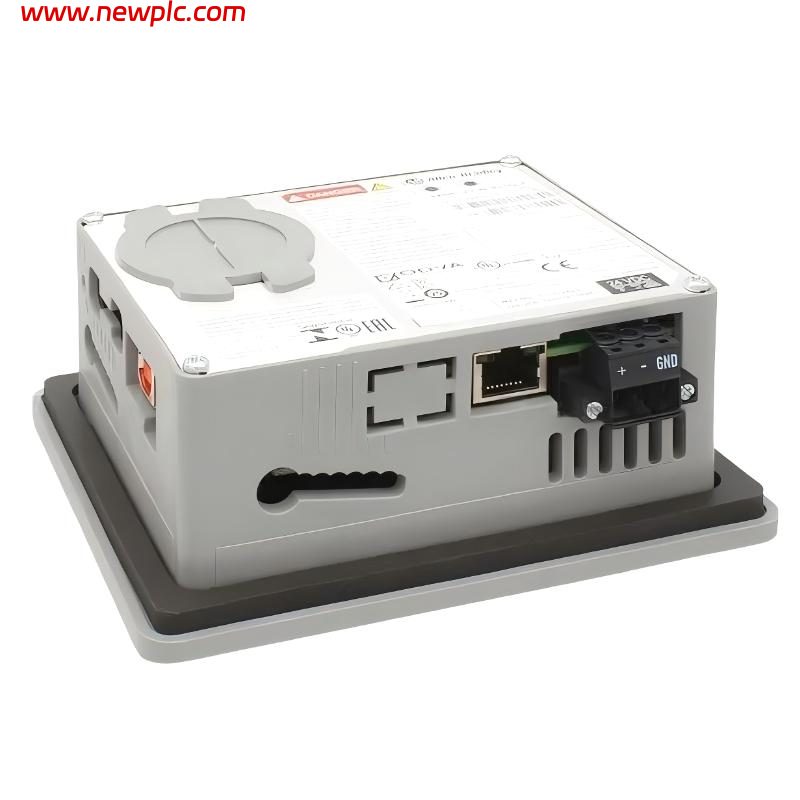

It includes a single Ethernet port (RJ45) for PLC and industrial network communication.

Q4: What is the power supply requirement?

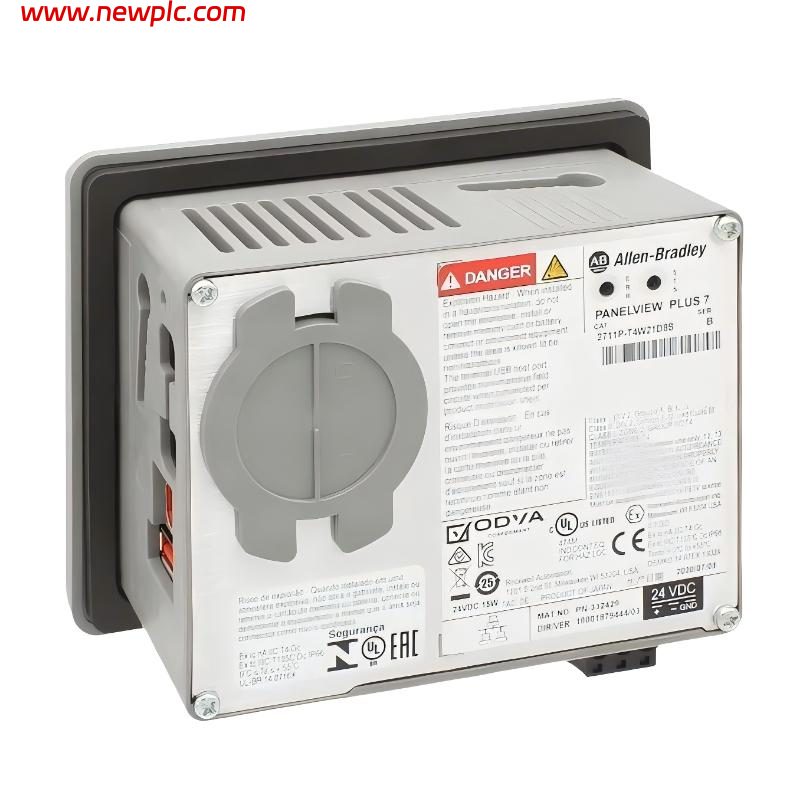

The unit operates on a 18–30 V DC power input, typically supplied at 24 V DC.

Q5: What operating system does it use?
It runs on Windows CE, supporting FactoryTalk View Machine Edition applications.

Q6: Is the 2711P-T4W21D8S suitable for harsh environments?
Yes, the front panel is rated IP66, making it suitable for dusty and wet industrial environments when properly installed.

Q7: What are the physical dimensions and weight?
The approximate dimensions are 135 × 110 × 56.5 mm, and the weight is about 0.7 kg.

Q8: What type of industries commonly use this HMI?
It is widely used in manufacturing, packaging, material handling, and process automation systems for local machine control and visualization.
