Technical Specifications
| Parameter | Specification |
|---|---|

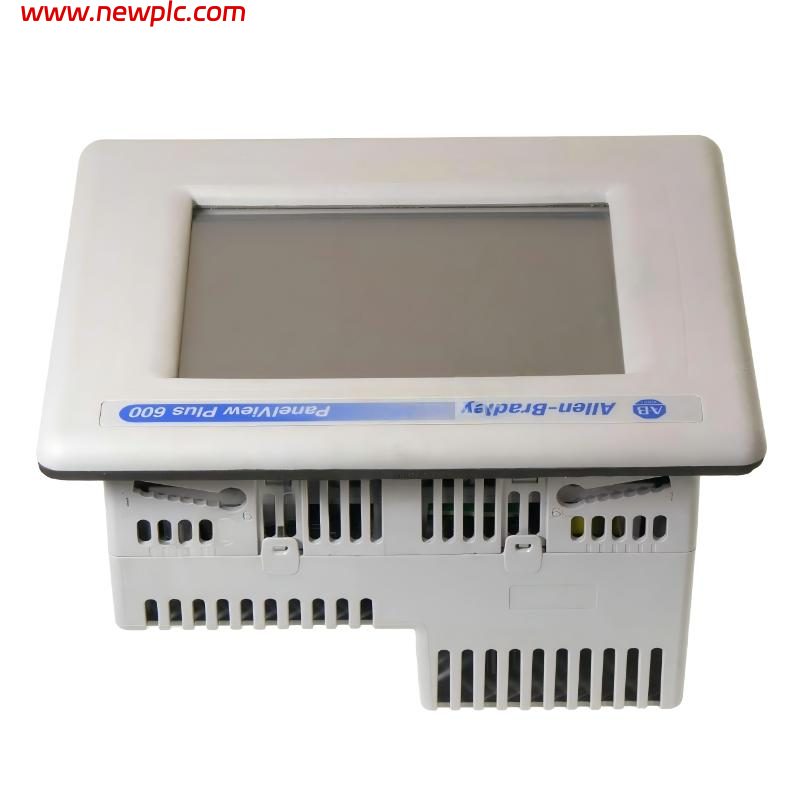

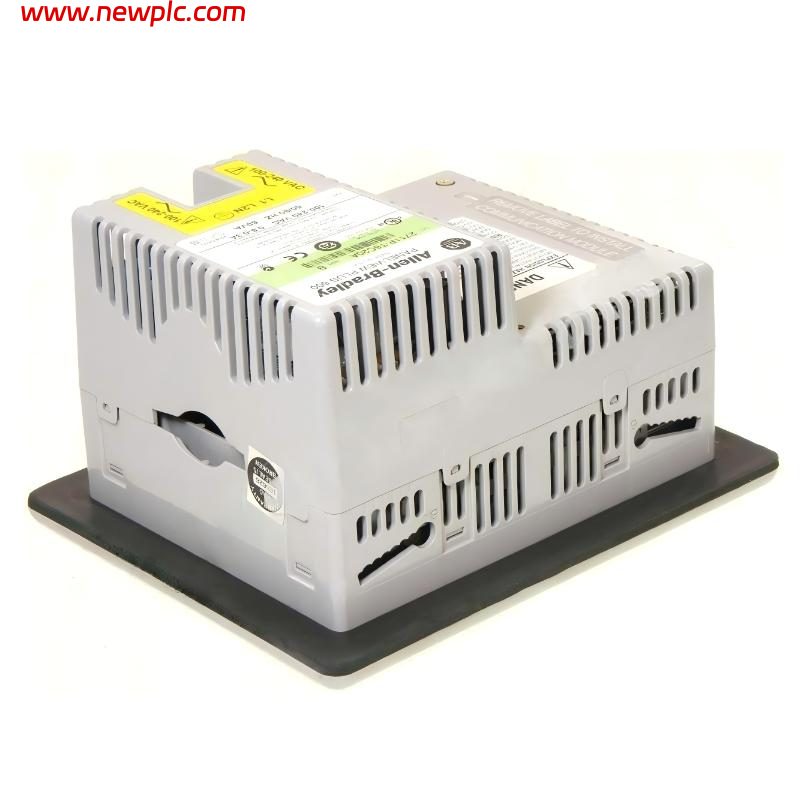

| Product Name | Allen-Bradley PanelView Plus 600 |
| Model Number | 2711P-T6C20A/B |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PanelView Plus 600 |
| Display Size | 5.5 inches (approx.) |
| Display Type | Color TFT LCD Touchscreen |
| Resolution | 320 × 240 pixels |
| Input Type | Analog resistive touchscreen |

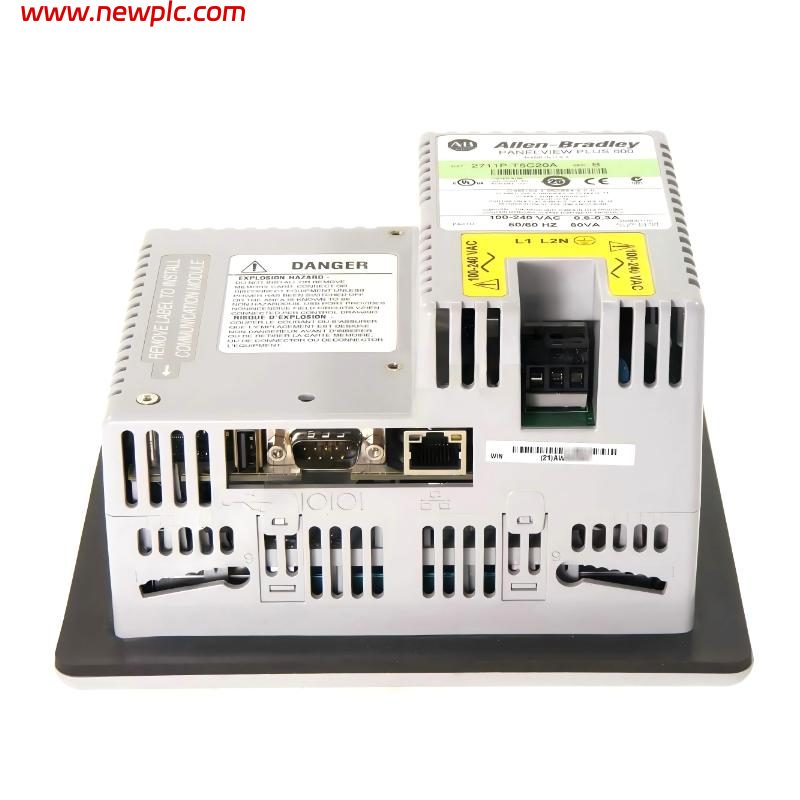

| Communication Ports | Ethernet, RS-232, USB |
| Power Supply | 85–264V AC (typical AC version) |
| Operating System | Windows CE |
| Memory | 64 MB RAM / 64 MB Flash |
| Mounting Type | Panel mount |
| Enclosure Rating | NEMA 4X / IP65 (front, installed condition) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Dimensions | Approx. 200 × 160 × 120 mm |
| Cutout Dimensions | Approx. 123 × 156 mm |
| Weight | Approx. 0.88–0.91 kg |
| Application | Industrial HMI for machine control and monitoring |
FAQ
FAQ
Q1: What is the Allen-Bradley 2711P-T6C20A/B used for?
The 2711P-T6C20A/B is a PanelView Plus 600 HMI terminal used for industrial machine control, process monitoring, and operator interface applications in automation systems.
Q2: Is the 2711P-T6C20A/B a touchscreen device?
Yes, it features a color resistive touchscreen that allows operators to interact directly with industrial control systems.
Q3: What is the display size of this model?
It has an approximate 5.5-inch color display designed for compact industrial control panels.
Q4: What communication interfaces does it support?
It supports Ethernet, RS-232, and USB ports for PLC and industrial network connectivity.
Q5: What power supply does the 2711P-T6C20A/B require?
The unit operates on an AC power input range of 85–264V AC depending on configuration.
Q6: What software is used with this PanelView model?
It typically runs FactoryTalk View Machine Edition on Windows CE-based firmware.
Q7: What are the dimensions and weight of the unit?
The approximate dimensions are 200 × 160 × 120 mm, and the weight is around 0.88–0.91 kg.
Q8: Is the 2711P-T6C20A/B suitable for industrial environments?
Yes, it is designed for industrial environments and offers a rugged front panel rated for NEMA 4X / IP65 protection when properly installed.
