Technical Specifications
| Parameter | Specification |
|---|---|

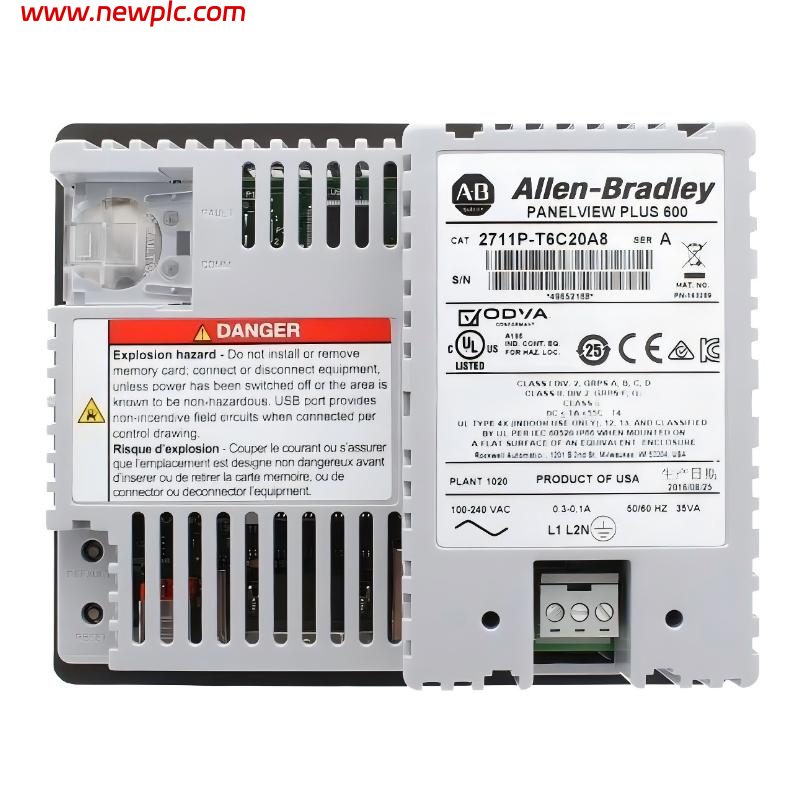

| Product Name | Allen-Bradley PanelView Plus 600 |
| Model Number | 2711P-T6C20A8 |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PanelView Plus 600 |

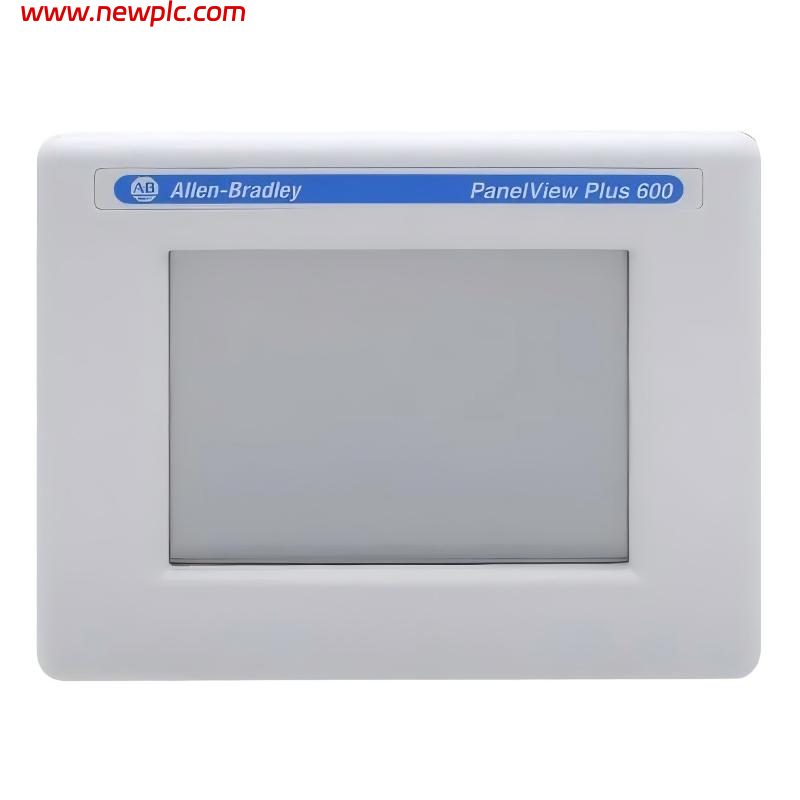

| Display Size | 5.7 inches |
| Display Type | Color TFT LCD Touchscreen |
| Resolution | 320 × 240 pixels |
| Input Type | Analog Resistive Touchscreen |

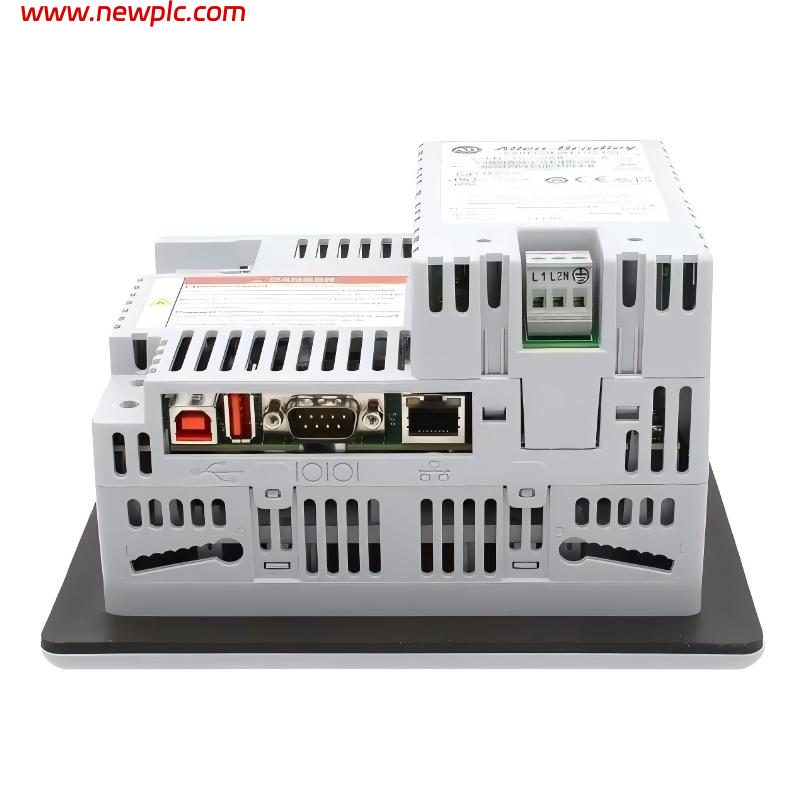

| Communication Ports | Ethernet, RS-232, USB |
| Power Supply | 18–32V DC |
| Nominal Voltage | 24V DC |
| Operating System | Windows CE |
| Memory | 64 MB RAM / 64 MB Flash |
| Mounting Type | Panel Mount |
| Enclosure Rating | NEMA 12, 13, 4X / IP65 (Front) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Dimensions | Approx. 212 × 290 × 110 mm |
| Cutout Dimensions | Approx. 167 × 220 mm |
| Weight | Approx. 1.1 kg |
| Application | Industrial HMI and Machine Interface Control |
FAQ
FAQ
Q1: What is the Allen-Bradley 2711P-T6C20A8 used for?
The 2711P-T6C20A8 is a PanelView Plus 600 HMI terminal designed for industrial machine control, process monitoring, and operator interface applications.
Q2: Does the 2711P-T6C20A8 support touchscreen operation?
Yes, the unit features a color analog resistive touchscreen for direct operator interaction with industrial systems.
Q3: What is the screen size of the 2711P-T6C20A8?
This model is equipped with a 5.7-inch color TFT display with a resolution of 320 × 240 pixels.
Q4: What communication interfaces are included on the 2711P-T6C20A8?
The terminal supports Ethernet, RS-232 serial communication, and USB connectivity for industrial automation integration.
Q5: What power input does the 2711P-T6C20A8 require?
The unit operates on 18–32V DC power input, with 24V DC as the standard nominal voltage.
Q6: Which software is compatible with the 2711P-T6C20A8?
FactoryTalk View Machine Edition is commonly used to configure and run applications on this PanelView Plus terminal.
Q7: What are the dimensions and weight of the 2711P-T6C20A8?
The approximate dimensions are 212 × 290 × 110 mm, and the unit weighs about 1.1 kg.
Q8: Is the 2711P-T6C20A8 suitable for industrial environments?
Yes, the terminal is designed for industrial use and includes NEMA 12, 13, 4X and IP65 front-panel protection ratings for resistance to dust and moisture.
