Technical Specifications
| Parameter | Specification |
|---|---|

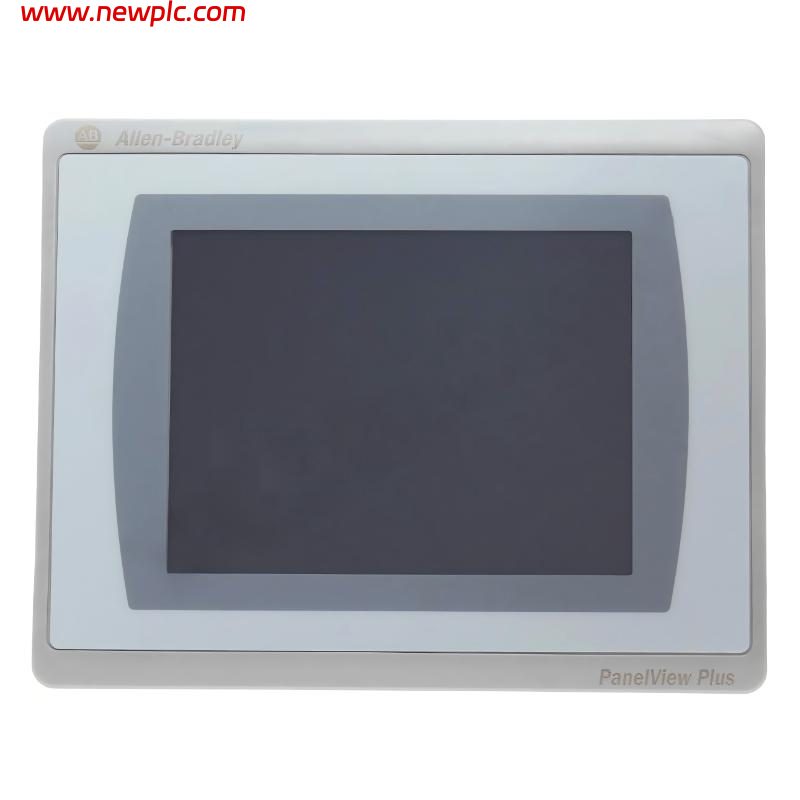

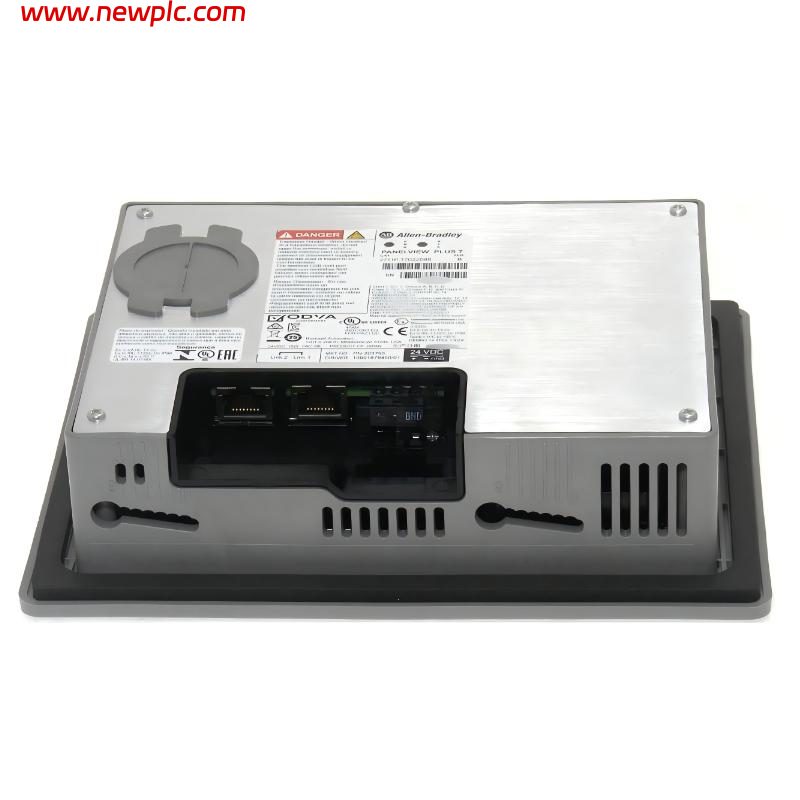

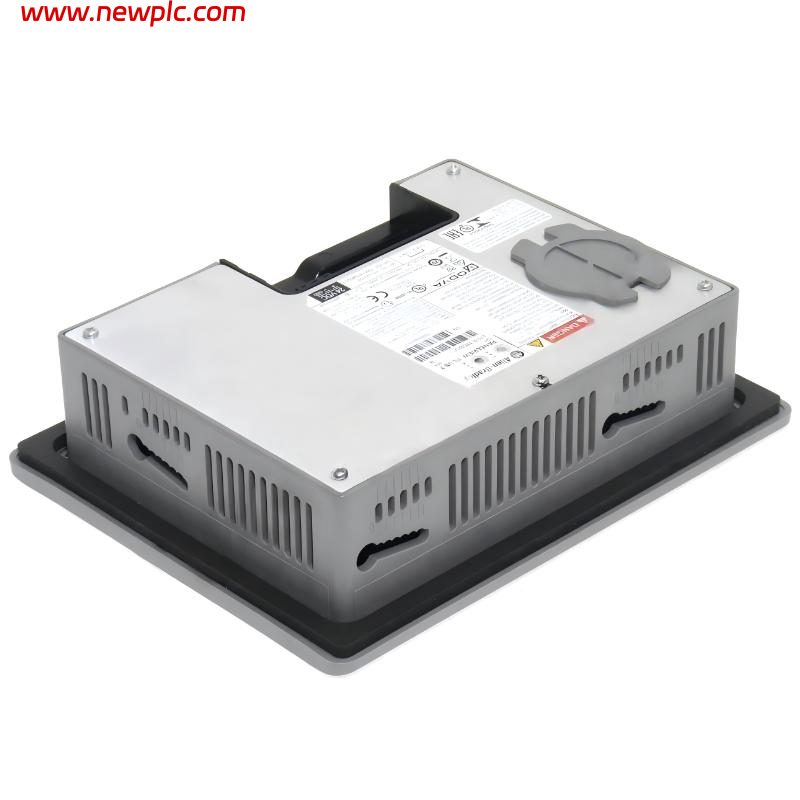

| Product Name | Allen-Bradley PanelView Plus 7 Compact |
| Model Number | 2711P-T7C22D8S |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PanelView Plus 7 Compact |
| Display Size | 7 inches |
| Display Type | Color TFT LCD Touchscreen |
| Resolution | 800 × 480 pixels |
| Input Type | Analog Resistive Touchscreen |
| Communication Ports | Ethernet, USB |
| Power Supply | 18–32V DC |
| Nominal Voltage | 24V DC |
| Operating System | Windows Embedded Compact |
| Memory | 512 MB RAM / 512 MB Flash |
| Mounting Type | Panel Mount |
| Enclosure Rating | NEMA 12, 13, 4X / IP66 (Front) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Dimensions | Approx. 226 × 193 × 69 mm |
| Cutout Dimensions | Approx. 188 × 142 mm |
| Weight | Approx. 1.0 kg |
| Application | Industrial HMI and Machine Interface Control |
FAQ
FAQ
Q1: What is the Allen-Bradley 2711P-T7C22D8S used for?
The 2711P-T7C22D8S is a PanelView Plus 7 Compact HMI terminal designed for industrial machine control, process monitoring, and operator interface applications.
Q2: Does the 2711P-T7C22D8S support touchscreen operation?
Yes, the terminal features a color analog resistive touchscreen for direct interaction with industrial automation equipment.
Q3: What is the display resolution of the 2711P-T7C22D8S?
This model provides an 800 × 480 pixel resolution on a 7-inch color TFT display for clear visualization and control.
Q4: What communication interfaces are available on the 2711P-T7C22D8S?
The unit supports Ethernet and USB communication interfaces for integration with PLCs and industrial control networks.
Q5: What power input does the 2711P-T7C22D8S require?
The terminal operates on 18–32V DC input power, with 24V DC as the standard nominal voltage.
Q6: Which software is compatible with the 2711P-T7C22D8S?
FactoryTalk View Machine Edition is commonly used for configuration, programming, and operation of this HMI terminal.
Q7: What are the dimensions and weight of the 2711P-T7C22D8S?
The approximate dimensions are 226 × 193 × 69 mm, and the unit weighs about 1.0 kg.
Q8: Is the 2711P-T7C22D8S suitable for industrial environments?
Yes, the terminal is designed for industrial environments and includes NEMA 12, 13, 4X and IP66 front-panel protection ratings for resistance to dust and moisture.
