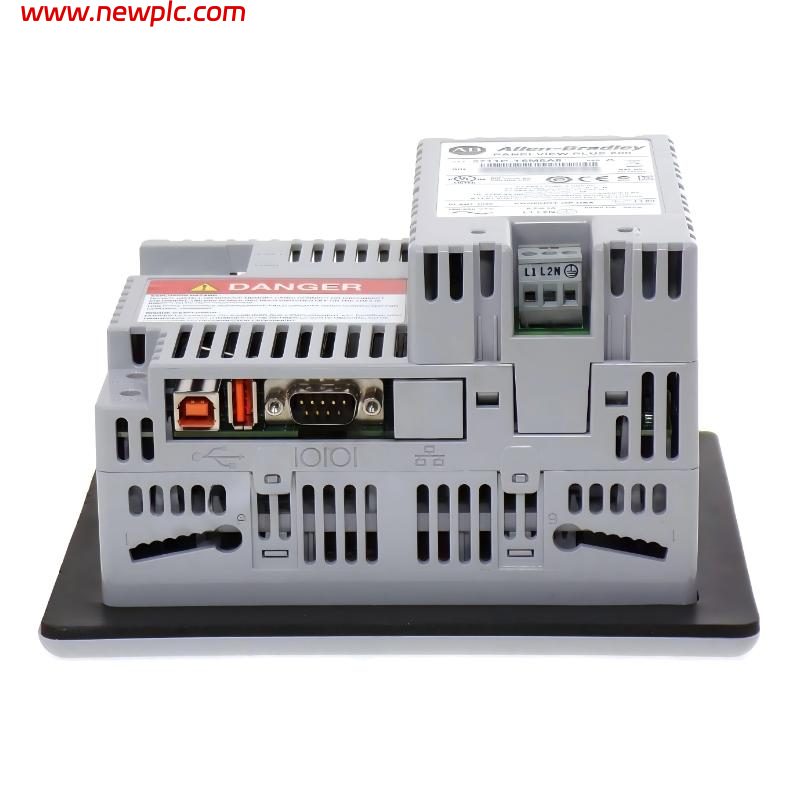

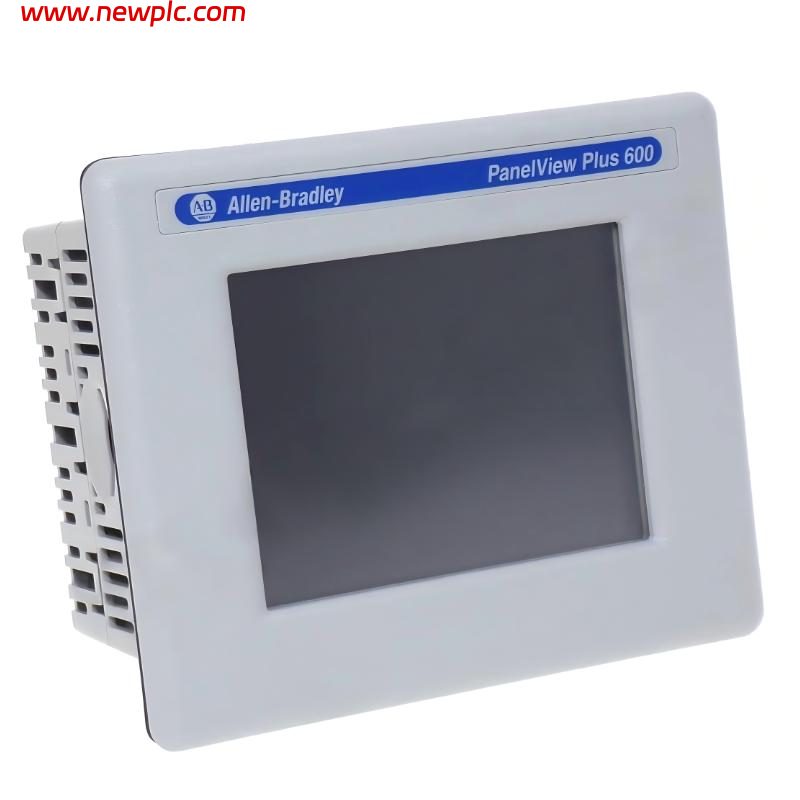

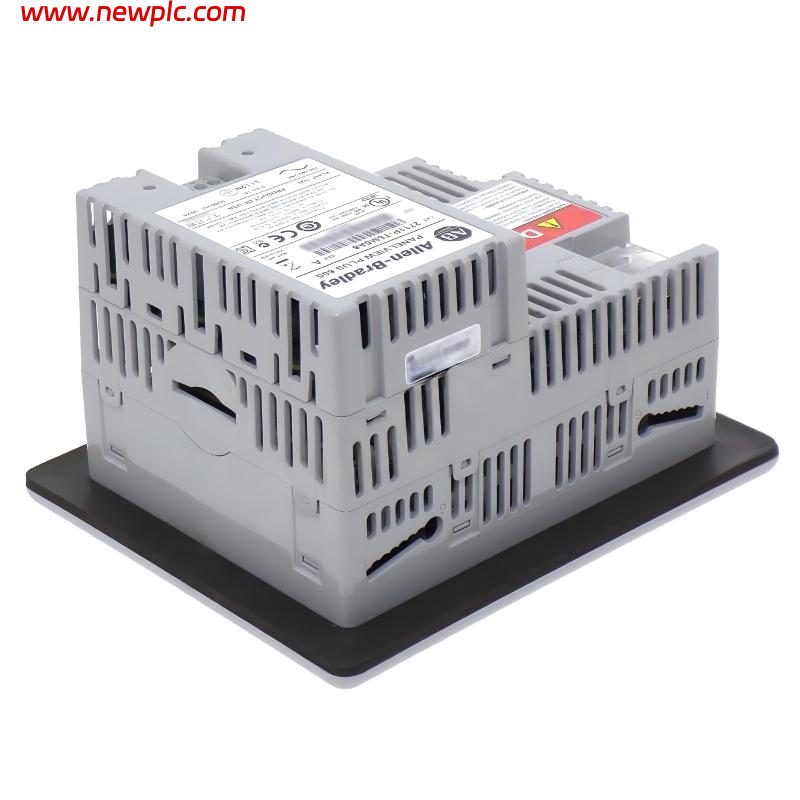

Allen Bradley 2711P-T6M5A8 Monochrome LCD Display

FAQ

Q1: What is the Allen-Bradley 2711P-T6M5A8 used for?
The 2711P-T6M5A8 is a PanelView Plus 600 monochrome HMI terminal designed for industrial machine control, process monitoring, and operator interface applications.

Q2: Does the 2711P-T6M5A8 use a touchscreen interface?
No, this model uses a keypad-based operator interface instead of a touchscreen, making it suitable for environments requiring physical control buttons.

Q3: What type of display does the 2711P-T6M5A8 have?
The terminal features a 5.7-inch monochrome LCD display with a resolution of 320 × 240 pixels.

Q4: What communication interfaces are available on the 2711P-T6M5A8?
The unit supports Ethernet, RS-232 serial communication, and USB connectivity for integration with industrial automation systems.

Q5: What power input does the 2711P-T6M5A8 require?
The terminal operates on 18–32V DC input power, with 24V DC as the standard nominal voltage.

Q6: Which software is compatible with the 2711P-T6M5A8?
FactoryTalk View Machine Edition is commonly used for configuration, programming, and operation of this PanelView Plus terminal.

Q7: What are the dimensions and weight of the 2711P-T6M5A8?
The approximate dimensions are 212 × 290 × 112 mm, and the unit weighs about 1.2 kg.

Q8: Is the 2711P-T6M5A8 suitable for industrial environments?
Yes, the terminal is designed for industrial environments and includes NEMA 12, 13, 4X and IP65 front-panel protection ratings for resistance to dust and moisture.

2711P-T6M5A8 Allen Bradley
