Technical Specifications
| Parameter | Specification |
|---|---|

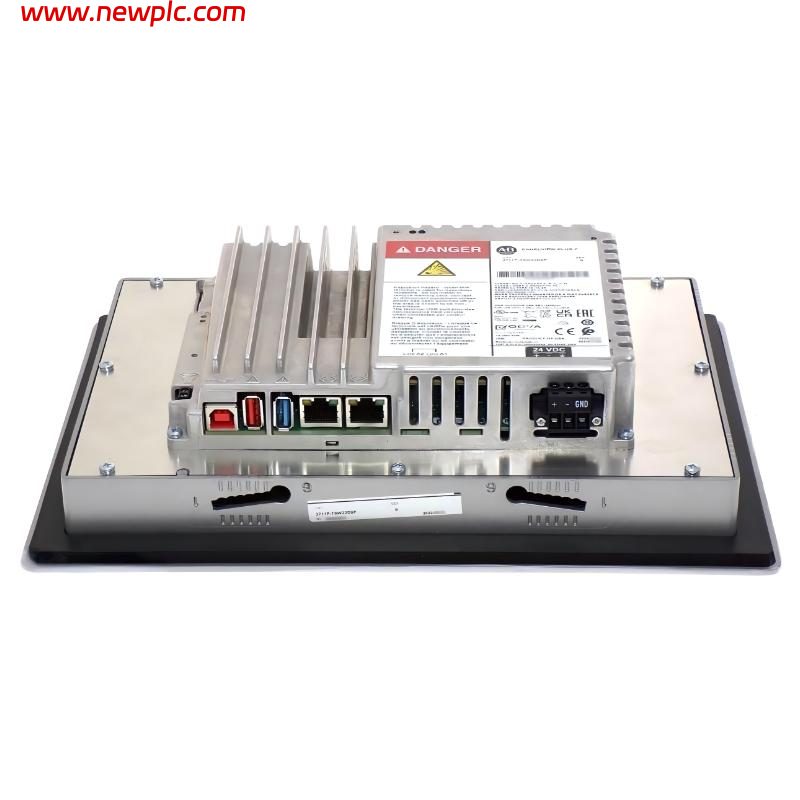

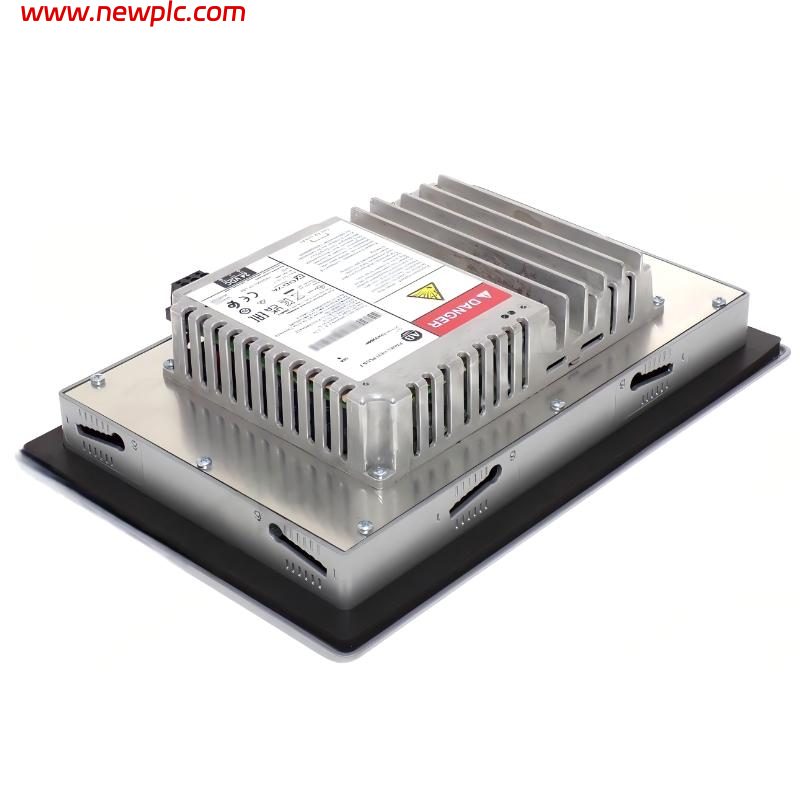

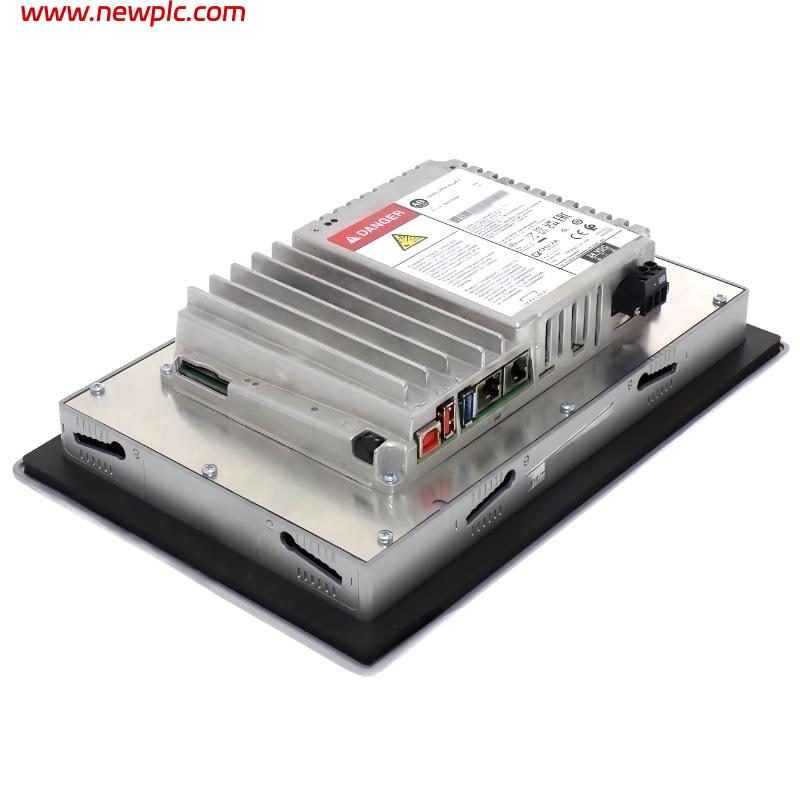

| Product Name | Allen-Bradley PanelView Plus 7 Performance Terminal |
| Model Number | 2711P-T9W22D9P |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PanelView Plus 7 Performance |
| Product Type | Human Machine Interface (HMI) Terminal |

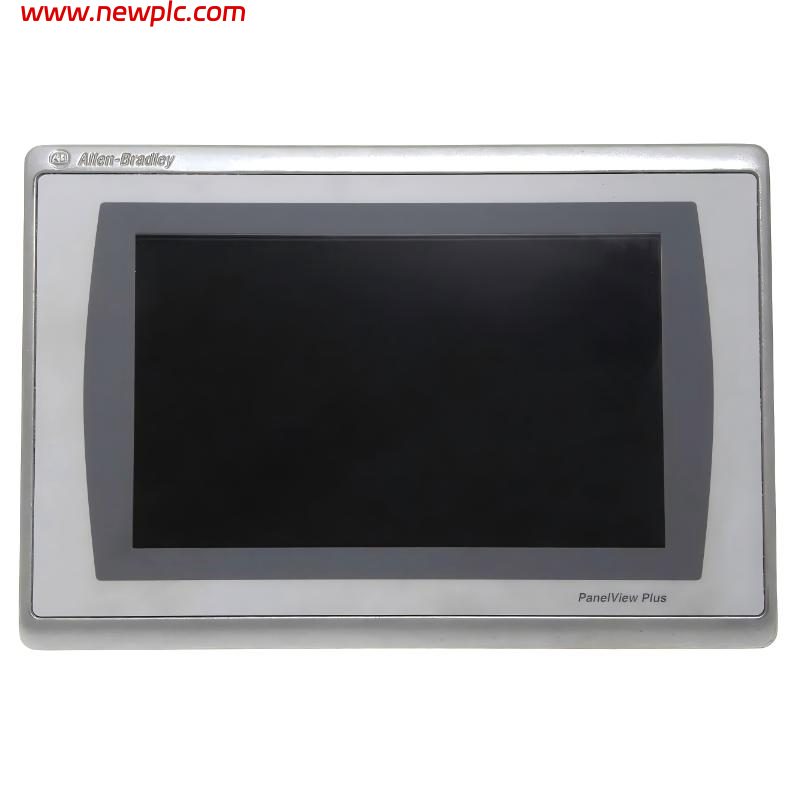

| Display Size | 9 in. Widescreen TFT Display |
| Display Resolution | 800 × 480 WVGA |
| Display Colors | 18-bit color graphics |
| Input Method | Analog Resistive Touchscreen |
| Keypad | No Keypad |
| Memory | 512 MB RAM / 512 MB Flash |
| Processor | ARM-based processor |
| Operating System | Windows CE-based platform |
| Input Voltage | 18–30V DC |
| Nominal Voltage | 24V DC |
| Power Consumption | Approx. 50 W |
| Ethernet Ports | Dual 10/100 Mbps Ethernet |
| USB Ports | USB Host and Device Ports |
| Serial Ports | RS-232 |
| Audio Support | Integrated audio output |
| Software Compatibility | FactoryTalk View Machine Edition |
| Mounting Type | Panel Mount |
| Front Protection Rating | NEMA Type 12/13, 4X Indoor, IP66 |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Relative Humidity | 5–95% non-condensing |
| Dimensions | Approx. 290 × 230 × 74 mm |
| Weight | Approx. 2.3 kg |
| Application | Industrial machine monitoring and operator interface |
FAQ
FAQ
Q1: What is the Allen-Bradley 2711P-T9W22D9P used for?
The 2711P-T9W22D9P is a PanelView Plus 7 Performance HMI terminal designed for industrial machine visualization, operator control, and process monitoring applications.
Q2: What type of display does the 2711P-T9W22D9P use?
It features a 9-inch widescreen TFT color touchscreen with 800 × 480 WVGA resolution.
Q3: Does the 2711P-T9W22D9P include a keypad?
No, this model is touchscreen-only and does not include integrated keypad buttons.
Q4: What communication interfaces are available on this HMI?
The terminal includes dual Ethernet ports, USB host/device ports, and an RS-232 serial communication interface.
Q5: Which software is compatible with the 2711P-T9W22D9P?
It is designed for use with FactoryTalk View Machine Edition (ME) software.
Q6: What power supply does the 2711P-T9W22D9P require?
The terminal operates on a 24V DC power supply with an acceptable voltage range of 18–30V DC.
Q7: What are the dimensions and weight of the 2711P-T9W22D9P?
The unit measures approximately 290 × 230 × 74 mm and weighs about 2.3 kg.
Q8: What industries commonly use the 2711P-T9W22D9P?
It is commonly used in manufacturing, packaging, material handling, water treatment, food processing, and other industrial automation environments.
