Technical Specifications
| Parameter | Specification |
|---|---|

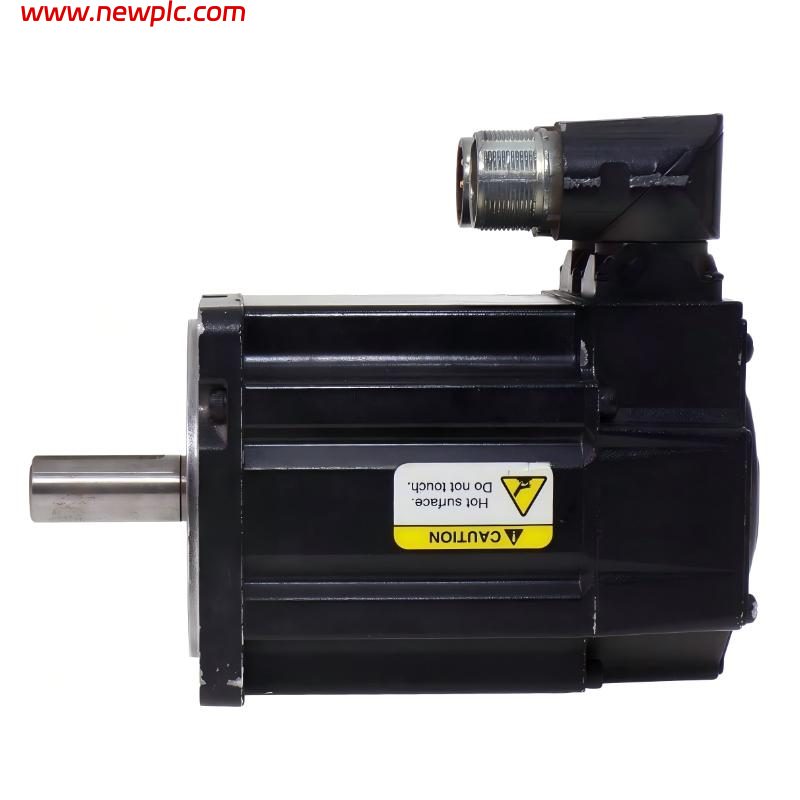

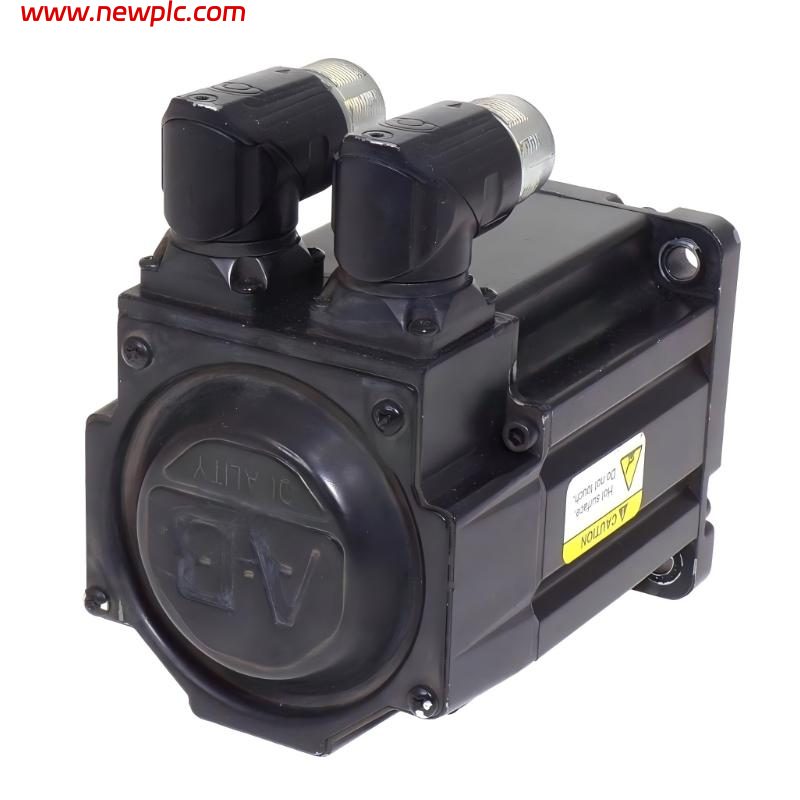

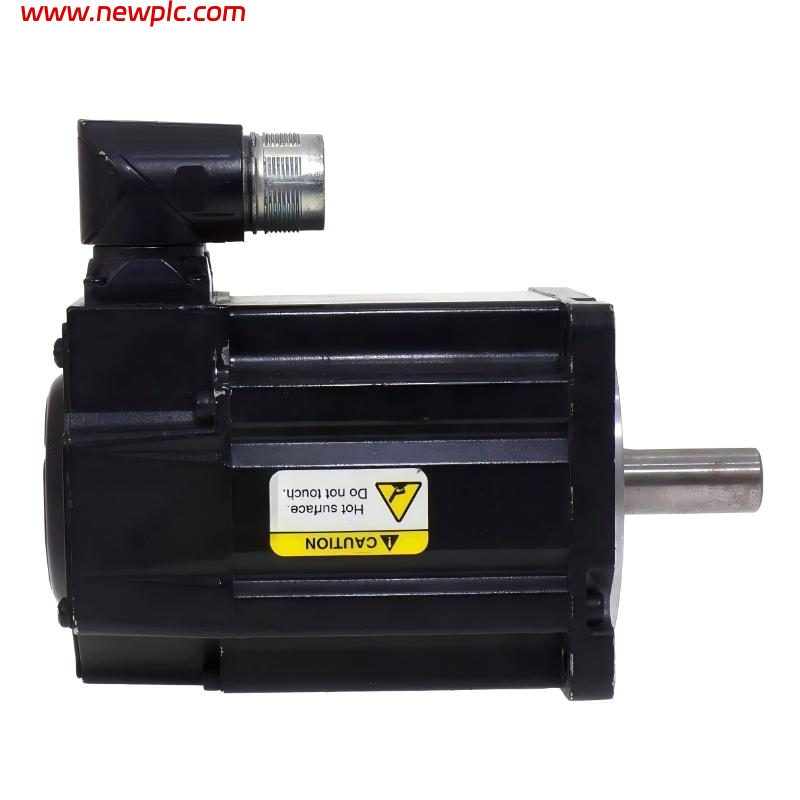

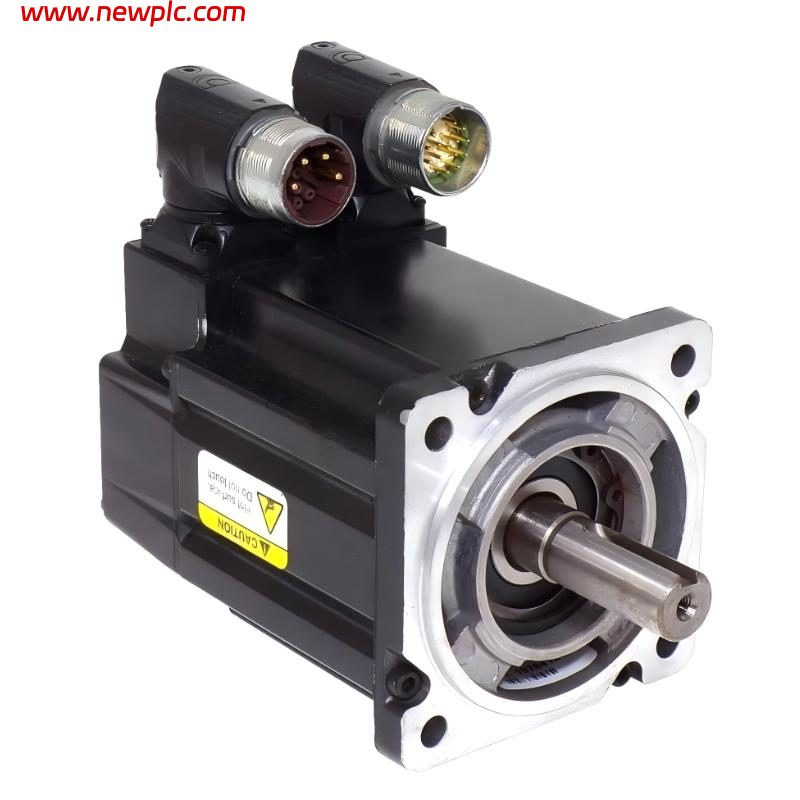

| Product Name | Allen-Bradley MP-Series Low-Inertia Servo Motor |
| Model Number | MPL-A310P-SJ72AA |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | MPL Series |
| Product Type | AC Servo Motor |
| Motor Type | Low-Inertia Brushless Servo Motor |
| Frame Size | 100 mm |
| Rated Speed | 3000 RPM |
| Maximum Speed | 5000 RPM |
| Rated Output Power | Approx. 1.0 kW |
| Rated Torque | Approx. 3.18 N·m |
| Peak Torque | Approx. 9.5 N·m |
| Input Voltage | 230V AC Class |
| Feedback Device | High-Resolution Encoder |
| Brake Option | No Holding Brake |
| Shaft Type | Smooth Shaft with Keyway |
| Shaft Seal | Standard Seal |
| Connector Orientation | Right-Angle Circular DIN Connectors |
| Magnet Stack Length | 3-inch Stack |
| Cooling Method | Natural Convection |
| Enclosure Rating | IP50 (motor body), higher with proper cable installation |
| Insulation Class | Class F |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -30°C to 70°C |
| Mounting Type | Flange Mount |
| Certifications | UL, CE, CSA |
| Dimensions | Approx. 100 × 196 mm |
| Weight | Approx. 4.5 kg |
| Application | Precision industrial motion control |
FAQ
FAQ
Q1: What is the Allen-Bradley MPL-A310P-SJ72AA used for?
The MPL-A310P-SJ72AA is an MP-Series low-inertia servo motor used in industrial automation systems requiring precise speed, torque, and position control such as packaging machines, robotics, and CNC equipment.
Q2: What is the rated speed of the MPL-A310P-SJ72AA?
The motor has a rated speed of 3000 RPM with a maximum operating speed of up to 5000 RPM.
Q3: What is the power output of this servo motor?
It provides approximately 1.0 kW rated output power.
Q4: Does the MPL-A310P-SJ72AA include a holding brake?
No, this specific model does not include an integrated holding brake.
Q5: What type of feedback system is included?
The motor is equipped with a high-resolution encoder feedback device for accurate motion control.
Q6: What type of shaft does this motor use?
It features a smooth shaft with keyway configuration for secure mechanical coupling.
Q7: What are the dimensions and weight of the MPL-A310P-SJ72AA?
The motor dimensions are approximately 100 × 196 mm, and the weight is about 4.5 kg.
Q8: What applications commonly use this servo motor?
It is commonly used in robotics, packaging equipment, converting machinery, indexing systems, and high-performance automated production equipment.
