Technical Specifications
| Parameter | Specification |
|---|---|

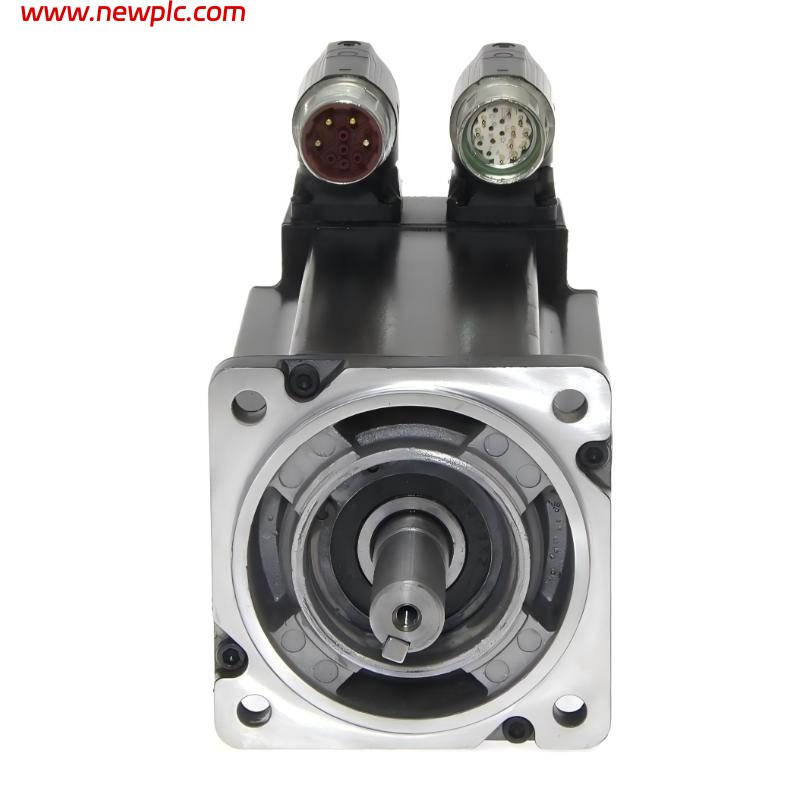

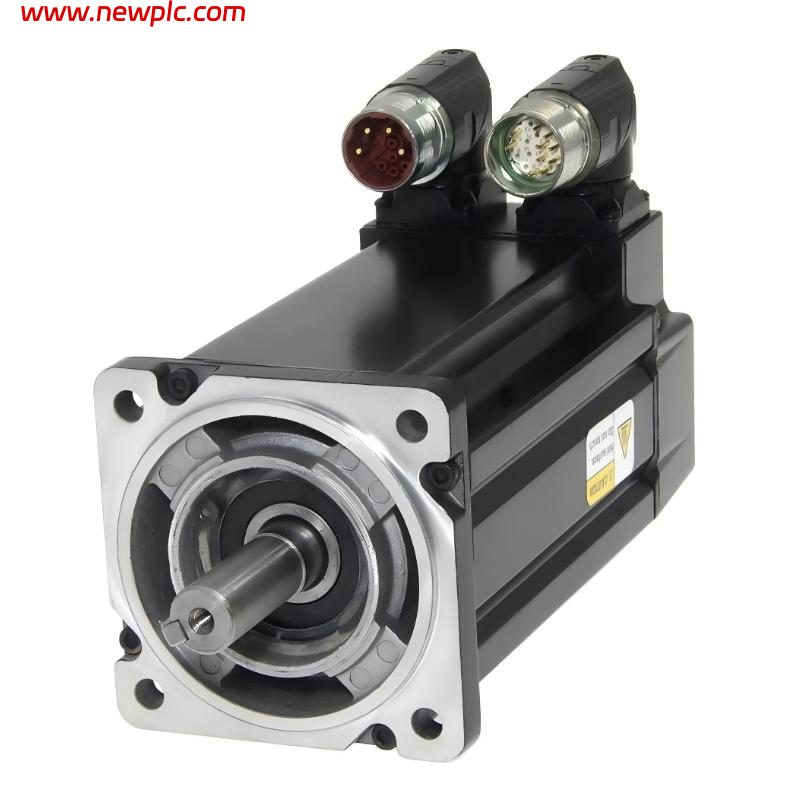

| Product Name | Allen-Bradley MP-Series Low-Inertia Servo Motor |
| Model Number | MPL-A330P-MJ72AA |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | MPL Series |
| Product Type | AC Brushless Servo Motor |
| Motor Type | Low-Inertia Rotary Servo Motor |
| Frame Size | 100 mm (Frame 3) |
| Magnet Stack Length | 76.2 mm (3.0 in.) |
| Rated Speed | 5000 RPM |
| Maximum Speed | 5000 RPM |
| Rated Output Power | 1.8 kW |
| Continuous Stall Torque | 4.18 N·m |
| Peak Torque | 11.1 N·m |
| Continuous Stall Current | 12.0 A |
| Peak Stall Current | 38.0 A |
| Voltage Class | 200–230V AC |
| Feedback Type | Multi-turn High-Resolution Absolute Encoder |
| Feedback Protocol | Hiperface |
| Shaft Type | Keyed Shaft |
| Shaft Seal | No Shaft Seal |
| Brake Option | No Brake |
| Connector Type | SpeedTEC DIN Connector |
| Connector Orientation | Right Angle, 180° Rotatable |
| Mounting Type | IEC Metric Flange Mount |
| Cooling Method | Natural Convection |
| Enclosure Rating | IP50 standard (higher with shaft seal option) |
| Operating Temperature | Max. 40°C |
| Compatible Drive Series | Kinetix 300/350, Kinetix 5500, Kinetix 6000, Ultra 3000 |
| Certifications | UL, CE, CSA |
| Dimensions | Approx. 100 × 196 mm |
| Weight | Approx. 4.6 kg |
| Application | Precision industrial servo motion control |
FAQ
FAQ
Q1: What is the Allen-Bradley MPL-A330P-MJ72AA used for?
The MPL-A330P-MJ72AA is a low-inertia brushless servo motor designed for precision motion control applications such as packaging equipment, robotics, indexing systems, and automated machinery.
Q2: What is the rated power and torque of the MPL-A330P-MJ72AA?
This servo motor provides 1.8 kW continuous output power with 4.18 N·m continuous stall torque and 11.1 N·m peak torque.
Q3: What is the rated speed of the MPL-A330P-MJ72AA?
The motor is rated for 5000 RPM maximum operating speed.
Q4: Does the MPL-A330P-MJ72AA include a holding brake?
No, this model is supplied without an integrated holding brake.
Q5: What type of feedback encoder is included?
It includes a multi-turn high-resolution absolute encoder using the Hiperface feedback protocol.
Q6: What type of shaft and connector configuration does this motor use?
The motor features a keyed shaft and a SpeedTEC DIN right-angle connector with 180° rotation capability.
Q7: What are the dimensions and weight of the MPL-A330P-MJ72AA?
The motor has an approximate size of 100 × 196 mm and weighs about 4.6 kg.
Q8: Which servo drives are compatible with the MPL-A330P-MJ72AA?
It is compatible with Allen-Bradley Kinetix 300, 350, 5500, 6000, 6200/6500, 7000, and Ultra 3000 servo drive systems.
