Technical Specifications
| Parameter | Specification |
|---|---|

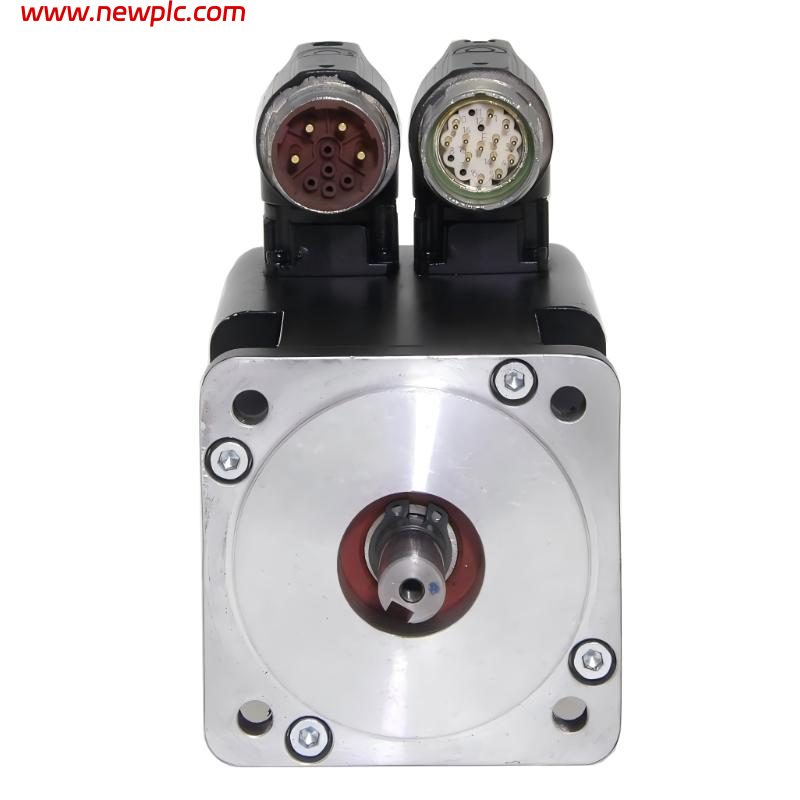

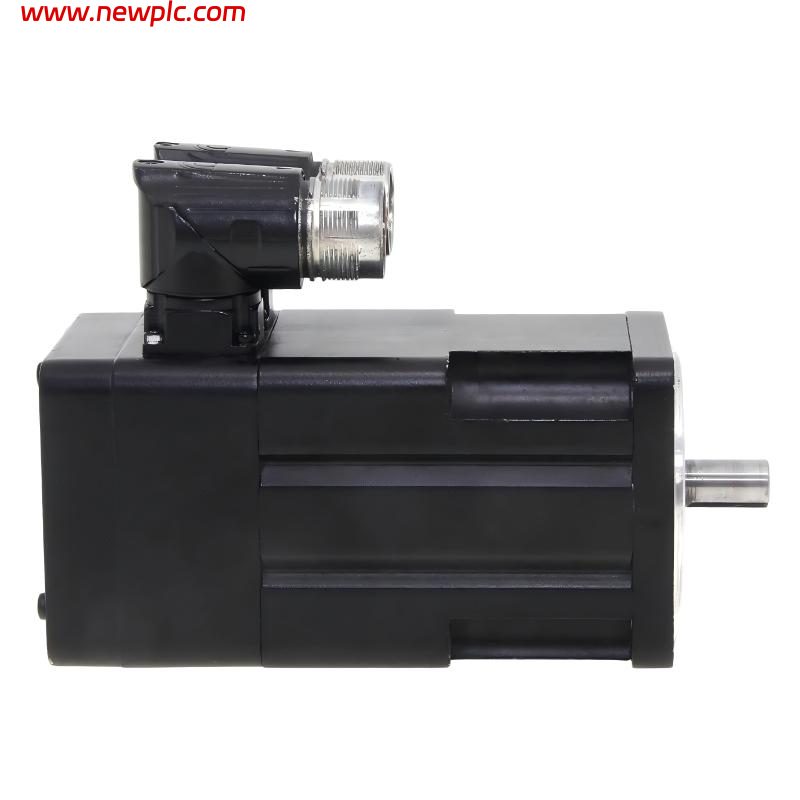

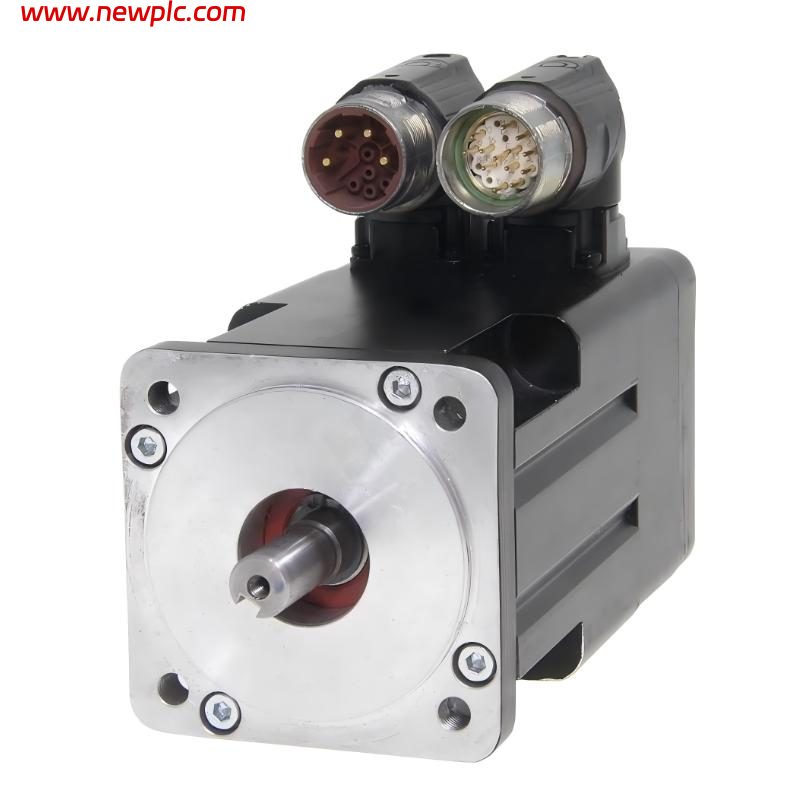

| Product Name | Allen-Bradley MP-Series Low-Inertia Servo Motor |
| Model Number | MPL-B220T-HJ72AA |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | MPL Series |
| Product Type | AC Brushless Servo Motor |
| Motor Type | Low-Inertia Rotary Servo Motor |
| Voltage Class | 460V AC |
| Frame Size | 75 mm (Frame 2) |
| Magnet Stack Length | 50.8 mm (2.0 in.) |
| Rated Speed | 6000 RPM |
| Maximum Speed | 6000 RPM |
| Rated Output Power | Approx. 0.6 kW |
| Continuous Stall Torque | Approx. 1.61 N·m |
| Peak Torque | Approx. 4.74 N·m |
| Rated Current | Approx. 3.3 A |
| Feedback Type | 2000-Line Incremental Encoder |
| Shaft Type | Keyed Shaft Extension |
| Shaft Seal | No Shaft Seal |
| Brake Option | No Brake |
| Connector Type | SpeedTEC DIN Connector |
| Connector Orientation | Right Angle, 180° Rotatable |
| Mounting Type | IEC Metric Flange Mount |
| Cooling Method | Natural Convection |
| Enclosure Rating | IP50 |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -30°C to 70°C |
| Compatible Drive Series | Kinetix 2000, Kinetix 300, Kinetix 350, Kinetix 5500, Kinetix 6000, Ultra 3000 |
| Certifications | UL, CE, CSA |
| Dimensions | Approx. 75 × 155 mm |
| Weight | Approx. 2.2 kg |
| Lifecycle Status | Discontinued |
| Replacement Option | MPL-B220T-EJ72AA |
| Application | Precision industrial servo motion control |
FAQ
FAQ
Q1: What is the Allen-Bradley MPL-B220T-HJ72AA used for?
The MPL-B220T-HJ72AA is a low-inertia brushless servo motor designed for high-performance motion control applications such as packaging machinery, robotics, indexing systems, and automated production equipment.
Q2: What is the rated speed of the MPL-B220T-HJ72AA?
This servo motor is rated for 6000 RPM maximum operating speed.
Q3: What type of feedback encoder does this motor use?
The motor includes a 2000-line incremental encoder for precise position and speed feedback.
Q4: Does the MPL-B220T-HJ72AA include a holding brake?
No, this model is supplied without an integrated holding brake.
Q5: What shaft configuration does the MPL-B220T-HJ72AA use?
It features a keyed shaft extension for secure mechanical coupling.
Q6: Is the MPL-B220T-HJ72AA still available?
No, Rockwell Automation discontinued this model in July 2024. The recommended replacement is MPL-B220T-EJ72AA.
Q7: What are the dimensions and weight of the MPL-B220T-HJ72AA?
The motor dimensions are approximately 75 × 155 mm, and the weight is about 2.2 kg.
Q8: Which servo drives are compatible with this motor?
The motor is compatible with Allen-Bradley Kinetix 2000, Kinetix 300, Kinetix 350, Kinetix 5500, Kinetix 6000, Kinetix 7000, and Ultra 3000 servo drive systems.
