Technical Specifications
| Parameter | Specification |
|---|---|

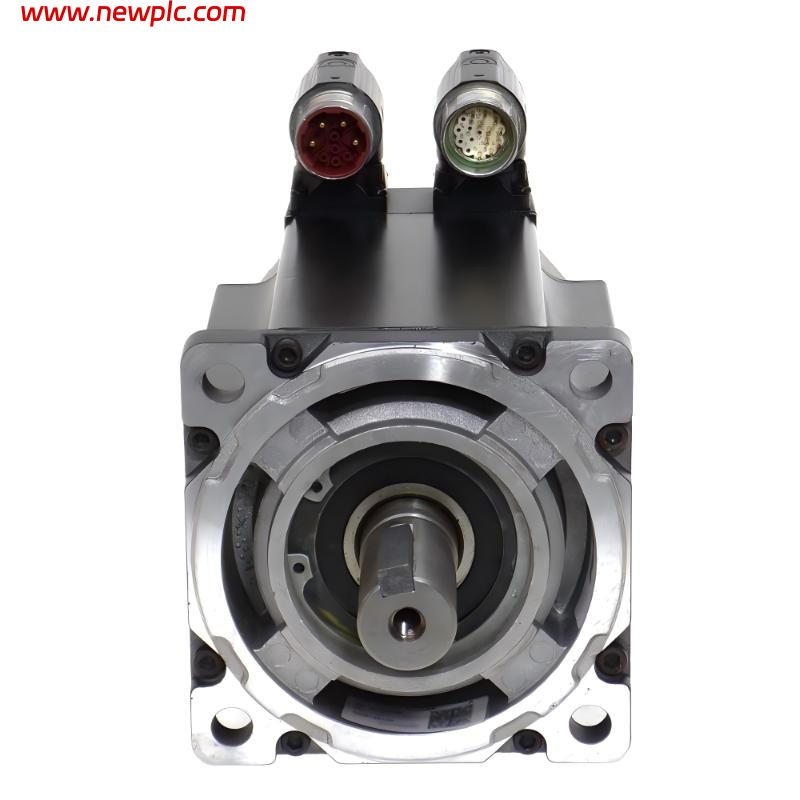

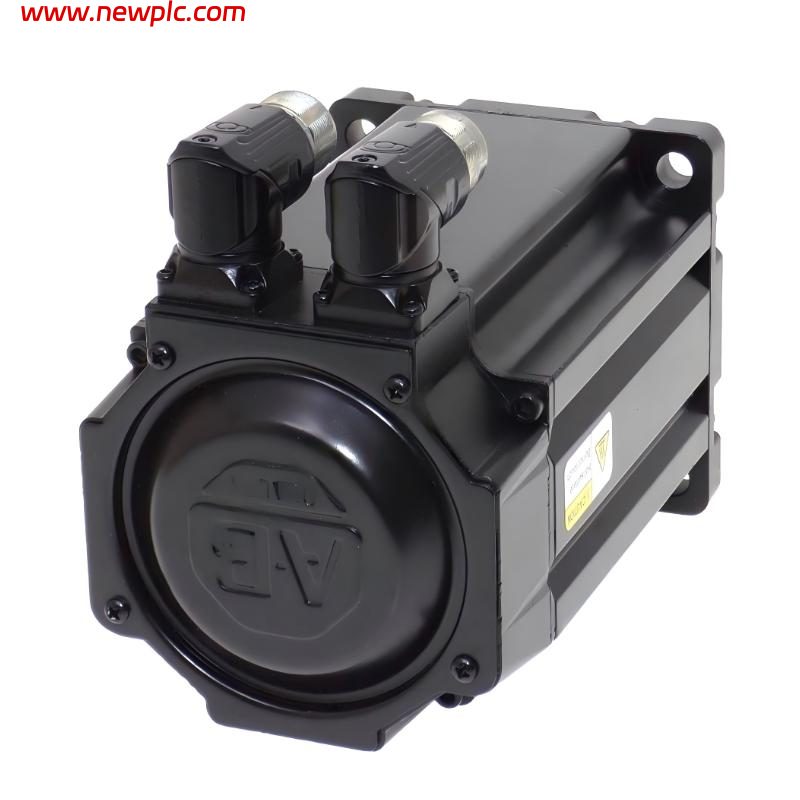

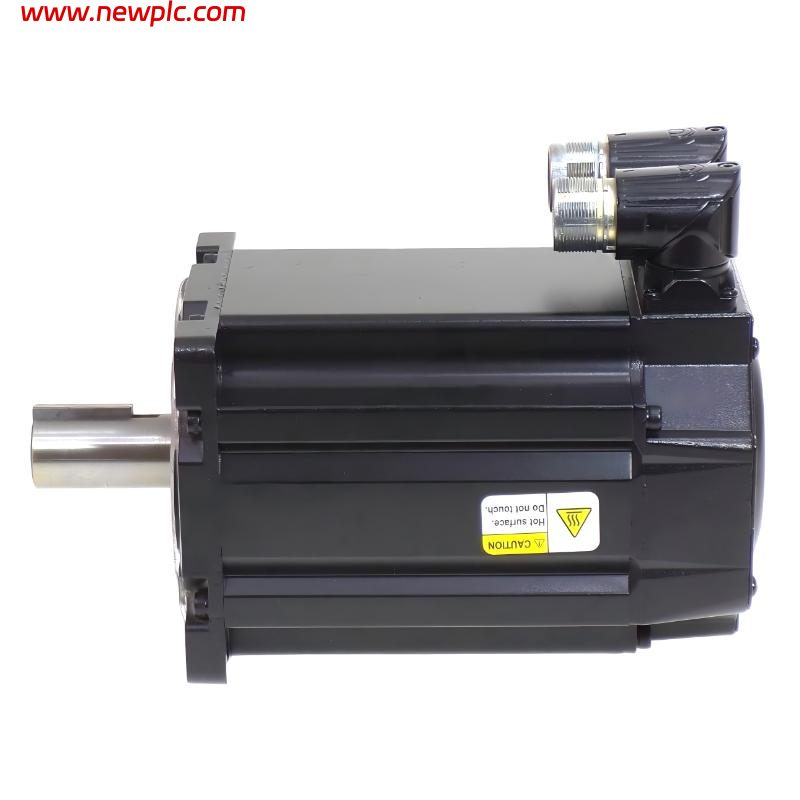

| Product Name | Allen-Bradley MP-Series Low-Inertia Servo Motor |
| Model Number | MPL-B4530F-MK72AA |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | MPL Series |
| Product Type | AC Brushless Servo Motor |
| Motor Type | Low-Inertia Rotary Servo Motor |
| Voltage Class | 460V AC |
| Frame Size | 130 mm |
| Magnet Stack Length | 76.2 mm (3.0 in.) |
| Rated Speed | 3000 RPM |
| Maximum Speed | 3000 RPM |
| Rated Output Power | 2.1 kW |
| Continuous Torque | 8.25 N·m |
| Peak Torque | Approx. 20.3 N·m |
| Rotor Inertia | 0.0004 kg·m² |
| Feedback Type | Multi-turn High-Resolution Absolute Encoder |
| Feedback Protocol | Hiperface |
| Shaft Type | Keyless Shaft |
| Shaft Seal | No Shaft Seal |
| Brake Option | No Brake |
| Connector Type | SpeedTEC DIN Connector |
| Connector Orientation | Right Angle, 180° Rotatable |
| Mounting Type | IEC Metric Flange Mount |
| Enclosure Rating | IP66 |
| Cooling Method | Natural Convection |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -30°C to 70°C |
| Number of Phases | 3-Phase |
| Compatible Drive Series | Kinetix 2000, Kinetix 300, Kinetix 350, Kinetix 5500, Kinetix 6000, Ultra 3000 |
| Certifications | UL, CE, CSA |
| Dimensions | Approx. 130 × 240 mm |
| Weight | Approx. 8.5 kg |
| Lifecycle Status | Active |
| Application | High-performance industrial motion control |
FAQ
FAQ
Q1: What is the Allen-Bradley MPL-B4530F-MK72AA used for?
The MPL-B4530F-MK72AA is a low-inertia brushless servo motor designed for precision industrial motion control applications such as robotics, packaging systems, material handling, and automated machinery.
Q2: What is the rated power and torque of the MPL-B4530F-MK72AA?
This servo motor delivers approximately 2.1 kW continuous power with 8.25 N·m continuous torque.
Q3: What feedback system does the MPL-B4530F-MK72AA use?
The motor includes a multi-turn high-resolution absolute encoder using the Hiperface feedback protocol for precise position and speed control.
Q4: Does the MPL-B4530F-MK72AA include a holding brake?
No, this model is supplied without an integrated holding brake.
Q5: What connector configuration does this motor use?
It uses a SpeedTEC DIN right-angle connector with 180° rotation capability for flexible cable routing.
Q6: What is the enclosure protection rating of this motor?
The MPL-B4530F-MK72AA has an IP66-rated housing for protection against dust and water ingress.
Q7: What are the dimensions and weight of the MPL-B4530F-MK72AA?
The motor dimensions are approximately 130 × 240 mm, and the weight is about 8.5 kg.
Q8: Which servo drives are compatible with this motor?
The motor is compatible with Allen-Bradley Kinetix 2000, Kinetix 300, Kinetix 350, Kinetix 5500, Kinetix 6000, Kinetix 7000, and Ultra 3000 servo drive systems.
