Technical Specifications
| Parameter | Specification |
|---|---|

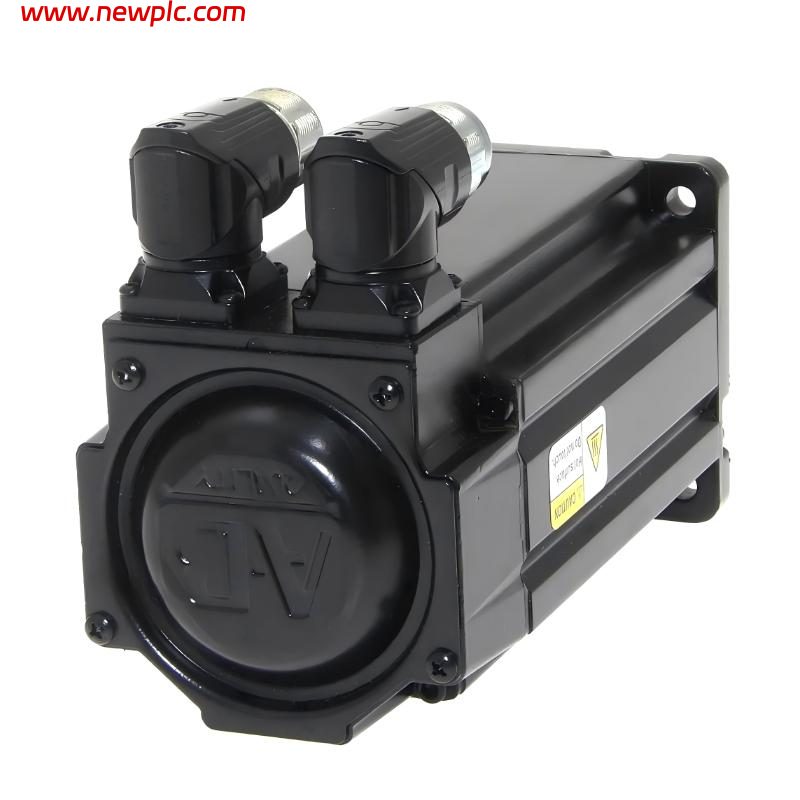

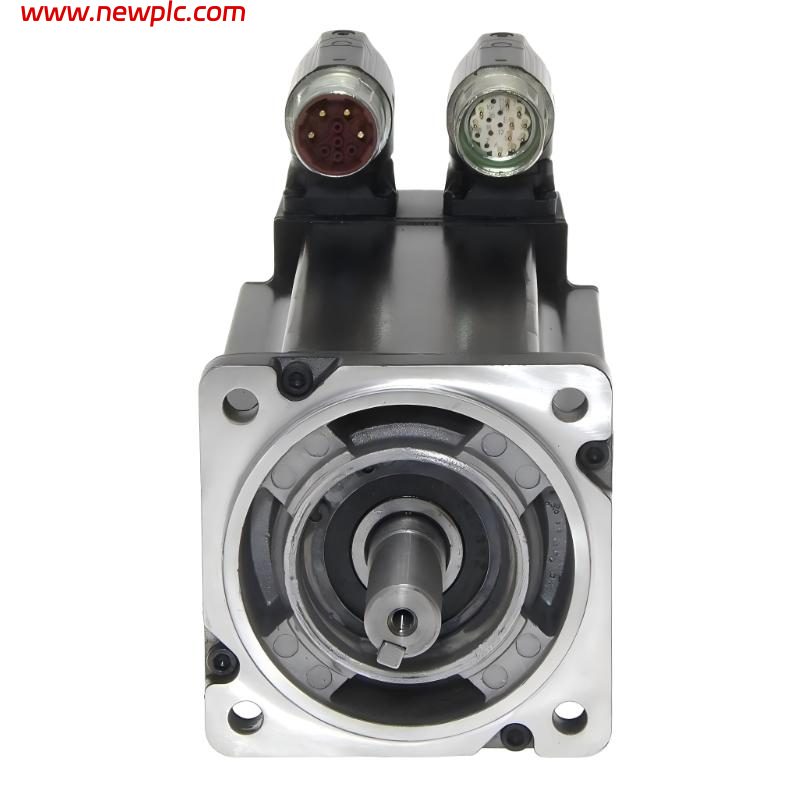

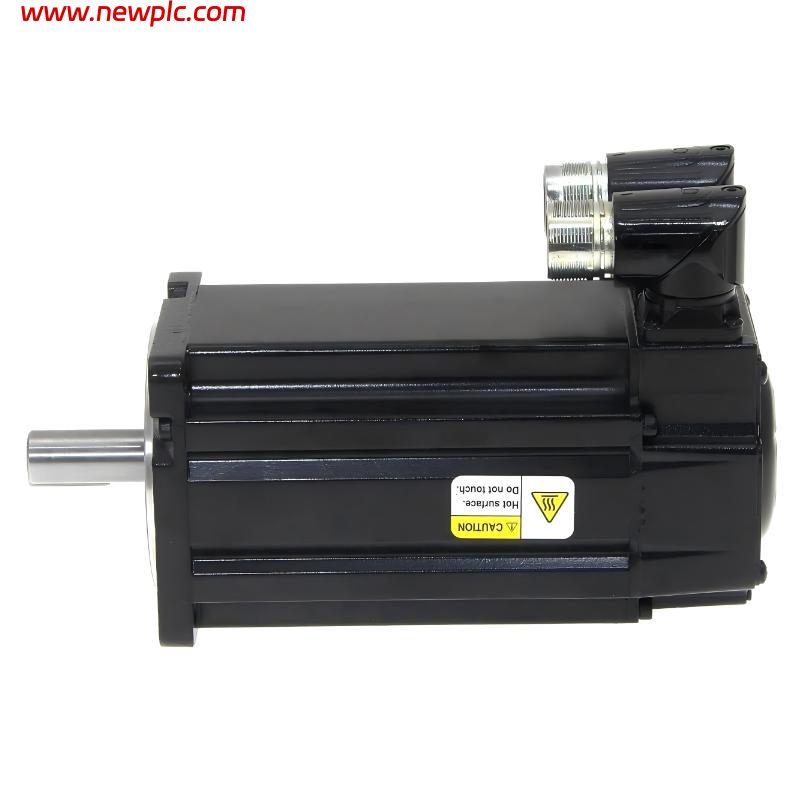

| Product Name | Allen-Bradley MP-Series Low-Inertia Servo Motor |
| Model Number | MPL-B4530F-SJ74AA |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | MPL Series |
| Product Type | AC Brushless Servo Motor |
| Motor Type | Low-Inertia Rotary Servo Motor |
| Voltage Class | 460V AC |
| Frame Size | 130 mm |
| Magnet Stack Length | 76.2 mm (3.0 in.) |
| Rated Speed | 3000 RPM |
| Maximum Speed | 3000 RPM |
| Rated Output Power | 2.1 kW |
| Continuous Torque | 8.25 N·m |
| Peak Torque | 20.3 N·m |
| Rotor Inertia | 0.00044 kg·m² |
| Feedback Type | Single-turn High-Resolution Absolute Encoder |
| Feedback Protocol | Hiperface |
| Feedback Resolution | 1024 Sin/Cos cycles per revolution |
| Shaft Type | Keyed Shaft |
| Shaft Seal | No Shaft Seal |
| Brake Option | 24V DC Holding Brake |
| Connector Type | SpeedTEC DIN Connector |
| Connector Orientation | Right Angle, 180° Rotatable |
| Mounting Type | IEC Metric Flange Mount |
| Enclosure Rating | IP66 |
| Cooling Method | Natural Convection |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -30°C to 70°C |
| Relative Humidity | 5–95% non-condensing |
| Number of Phases | 3-Phase |
| Compatible Drive Series | Kinetix 2000, Kinetix 300, Kinetix 350, Kinetix 5500, Kinetix 6000, Kinetix 7000, Ultra 3000 |
| Certifications | UL, CE, CSA |
| Dimensions | Approx. 130 × 240 mm |
| Weight | Approx. 11 kg |
| Lifecycle Status | Active |
| Application | High-performance industrial servo motion control |
FAQ
FAQ
Q1: What is the Allen-Bradley MPL-B4530F-SJ74AA used for?
The MPL-B4530F-SJ74AA is a low-inertia brushless servo motor designed for high-performance industrial motion control applications such as robotics, packaging systems, material handling equipment, and automated production machinery.
Q2: What are the power and torque ratings of the MPL-B4530F-SJ74AA?
This servo motor delivers approximately 2.1 kW continuous power, 8.25 N·m continuous torque, and 20.3 N·m peak torque.
Q3: What type of feedback encoder does the MPL-B4530F-SJ74AA use?
It uses a single-turn high-resolution absolute encoder with Hiperface feedback protocol and 1024 Sin/Cos cycles per revolution.
Q4: Does the MPL-B4530F-SJ74AA include a brake?
Yes, this model includes an integrated 24V DC holding brake for vertical load holding and safety applications.
Q5: What shaft and connector configuration does this motor use?
The motor features a keyed shaft and a SpeedTEC DIN right-angle connector with 180° rotation capability for flexible installation.
Q6: What is the enclosure protection rating of the MPL-B4530F-SJ74AA?
The motor housing is rated IP66, providing strong protection against dust and water ingress in industrial environments.
Q7: What are the dimensions and weight of the MPL-B4530F-SJ74AA?
The motor dimensions are approximately 130 × 240 mm, and the unit weighs around 11 kg.
Q8: Which servo drives are compatible with the MPL-B4530F-SJ74AA?
It is compatible with Allen-Bradley Kinetix 2000, Kinetix 300, Kinetix 350, Kinetix 5500, Kinetix 6000, Kinetix 7000, and Ultra 3000 servo drive systems.
