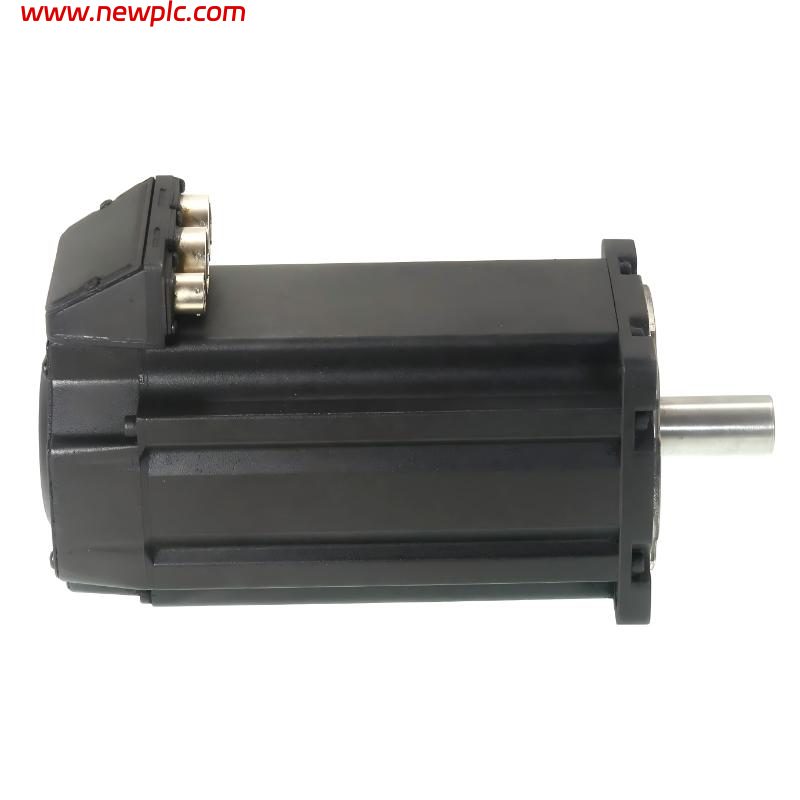

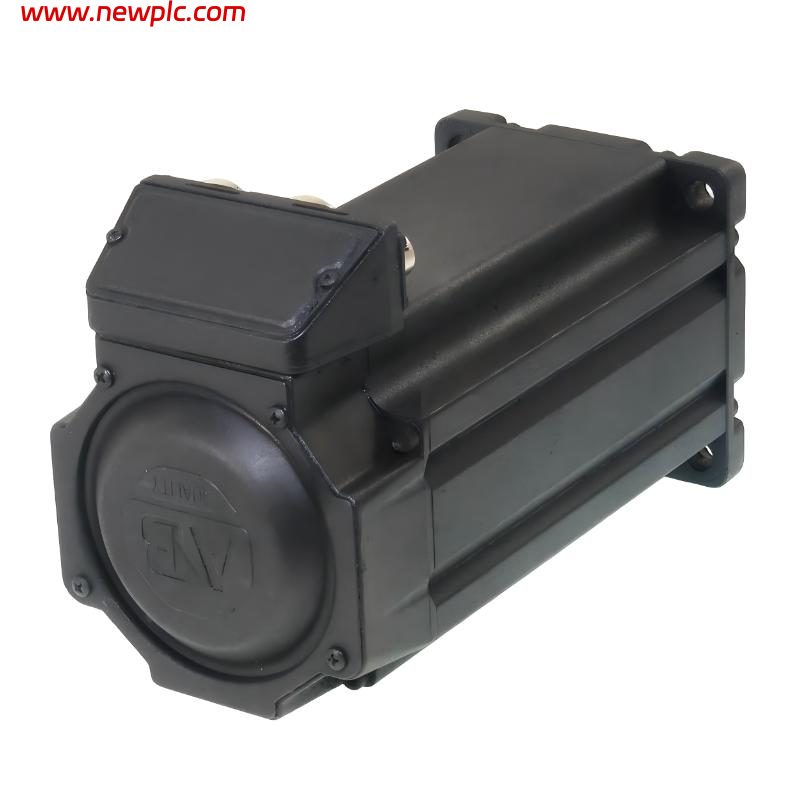

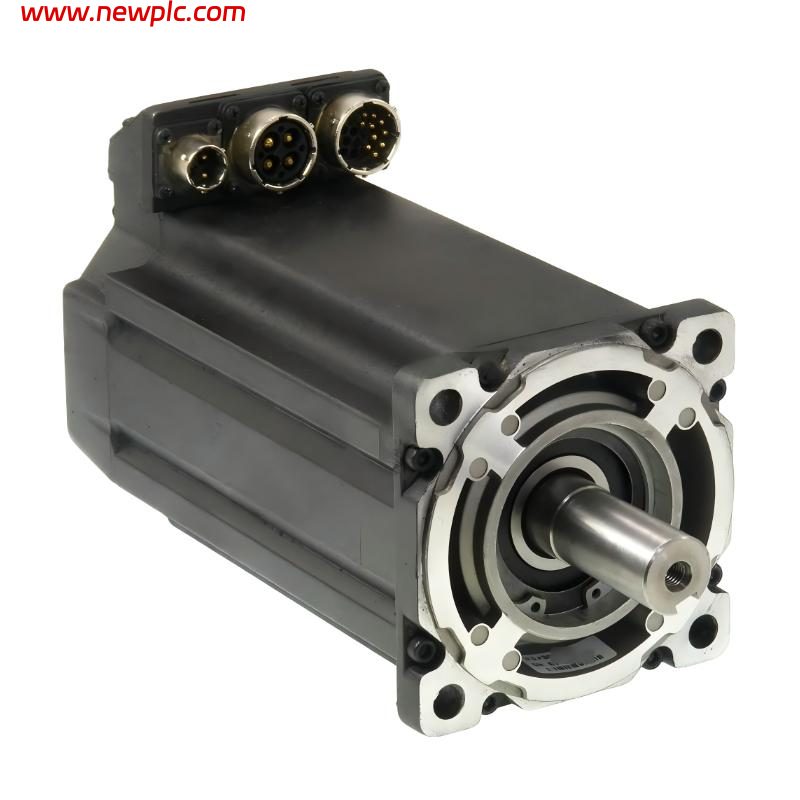

Allen Bradley MPL-B4530K-MJ24AA AC Brushless Servo Motor

FAQ

Q1: What is the Allen-Bradley MPL-B4530K-MJ24AA used for?
The MPL-B4530K-MJ24AA is a low-inertia brushless servo motor designed for industrial automation systems requiring precise motion control, including robotics, packaging equipment, indexing systems, and material handling machinery.

Q2: What are the power and torque ratings of the MPL-B4530K-MJ24AA?
This servo motor provides approximately 2.1 kW rated power, 8.25 N·m continuous torque, and around 20.3 N·m peak torque.

Q3: What type of feedback encoder does this motor use?
The motor includes a multi-turn high-resolution absolute encoder using the Hiperface feedback protocol for accurate position and speed control.

Q4: Does the MPL-B4530K-MJ24AA include a holding brake?
No, this model does not include an integrated holding brake.

Q5: What shaft configuration does the MPL-B4530K-MJ24AA use?
It features a keyless shaft with an IP66-rated shaft seal for improved environmental protection.

Q6: What is the enclosure protection rating of this servo motor?
The motor housing is rated IP66, providing strong protection against dust and water ingress in industrial environments.

Q7: What are the dimensions and weight of the MPL-B4530K-MJ24AA?
The motor dimensions are approximately 130 × 240 mm, and the weight is about 8.7 kg.

Q8: Which servo drives are compatible with the MPL-B4530K-MJ24AA?
The motor is compatible with Allen-Bradley Kinetix 2000, Kinetix 300, Kinetix 350, Kinetix 5500, Kinetix 6000, Kinetix 7000, and Ultra 3000 servo drive systems.

Allen Bradley MPL-B4530K-MJ24AA
