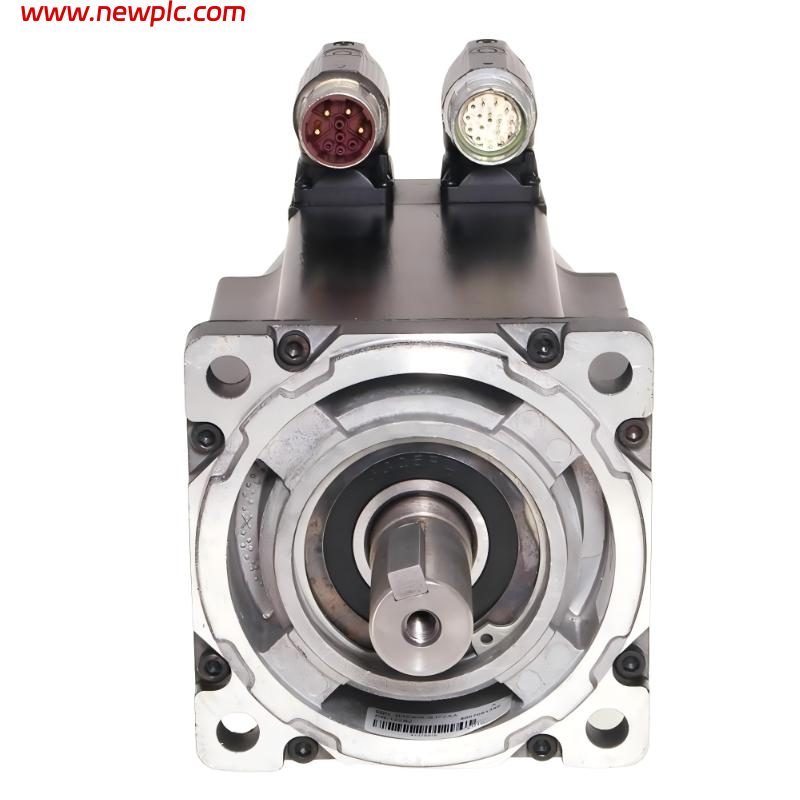

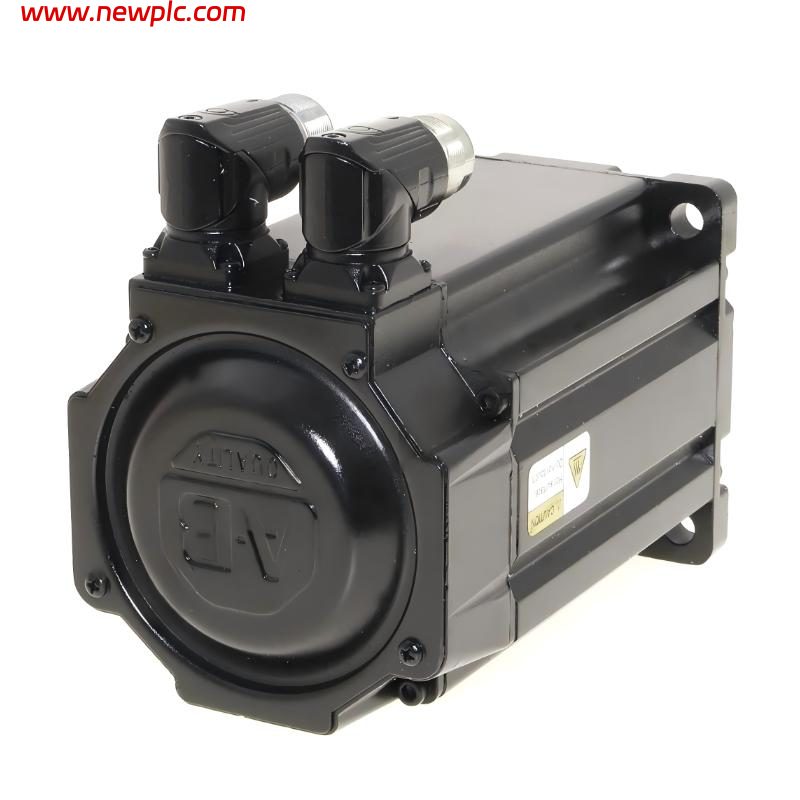

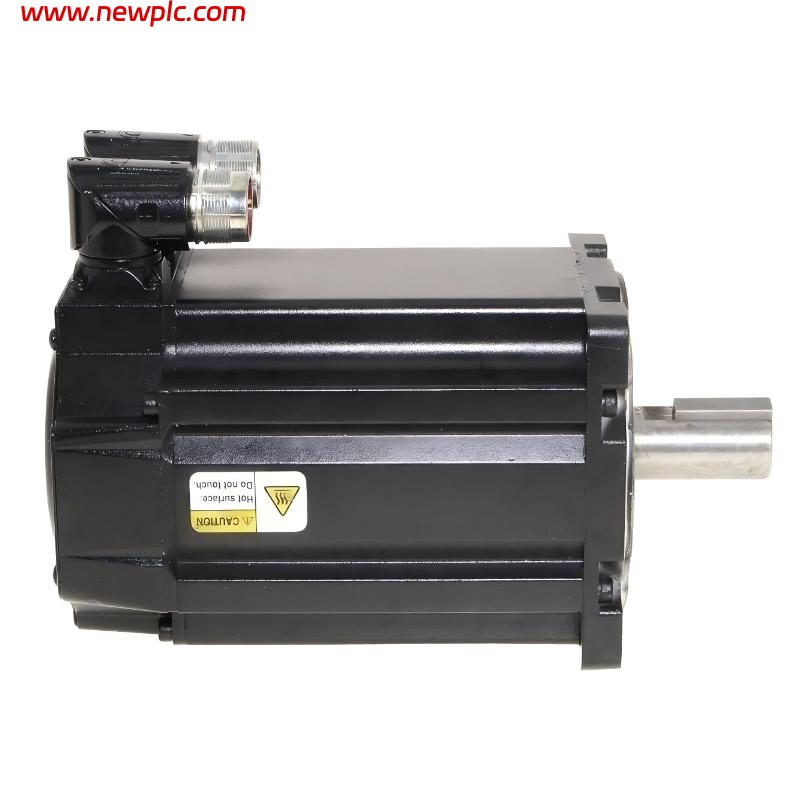

Allen Bradley MPL-B4530K-SJ72AA AC Brushless Servo Motor

FAQ

Q1: What is the Allen-Bradley MPL-B4530K-SJ72AA used for?
The MPL-B4530K-SJ72AA is a low-inertia brushless servo motor designed for high-performance industrial motion control applications such as robotics, packaging equipment, material handling systems, and automated production machinery.

Q2: What are the power and torque ratings of the MPL-B4530K-SJ72AA?
This servo motor delivers approximately 2.1 kW rated output power, 8.25 N·m continuous torque, and about 20.3 N·m peak torque.

Q3: What type of feedback encoder does the MPL-B4530K-SJ72AA use?
The motor uses a single-turn high-resolution absolute encoder with Hiperface feedback protocol for precise positioning and speed control.

Q4: Does the MPL-B4530K-SJ72AA include a holding brake?
No, this model does not include an integrated holding brake.

Q5: What shaft configuration does this motor use?
It features a keyless shaft with an IP66-rated shaft seal for improved environmental protection and reliable operation.

Q6: What is the enclosure protection rating of the MPL-B4530K-SJ72AA?
The motor housing is rated IP66, providing protection against dust and water ingress in demanding industrial environments.

Q7: What are the dimensions and weight of the MPL-B4530K-SJ72AA?
The motor dimensions are approximately 130 × 240 mm, and the unit weighs around 8.8 kg.

Q8: Which servo drives are compatible with the MPL-B4530K-SJ72AA?
It is compatible with Allen-Bradley Kinetix 2000, Kinetix 300, Kinetix 350, Kinetix 5500, Kinetix 6000, Kinetix 7000, and Ultra 3000 servo drive systems.

Allen Bradley MPL-B4530K-SJ72AA
