Technical Specifications
| Parameter | Specification |
|---|---|

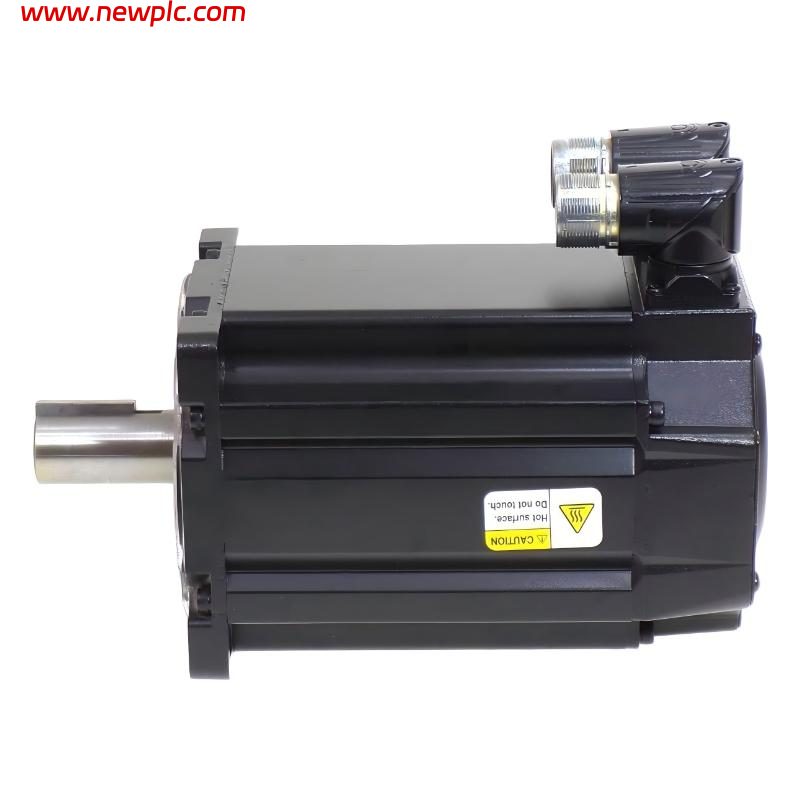

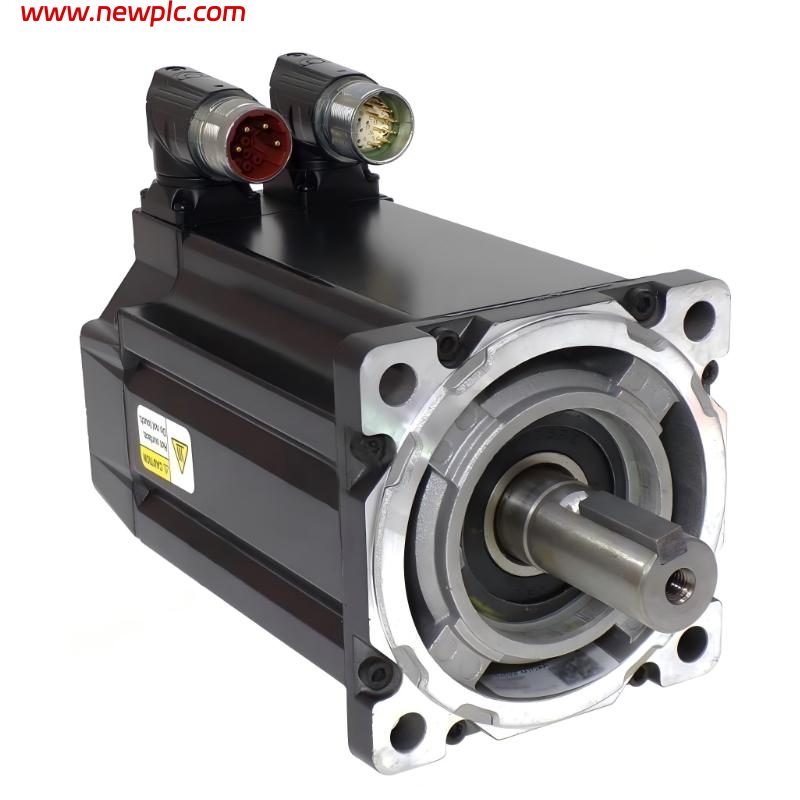

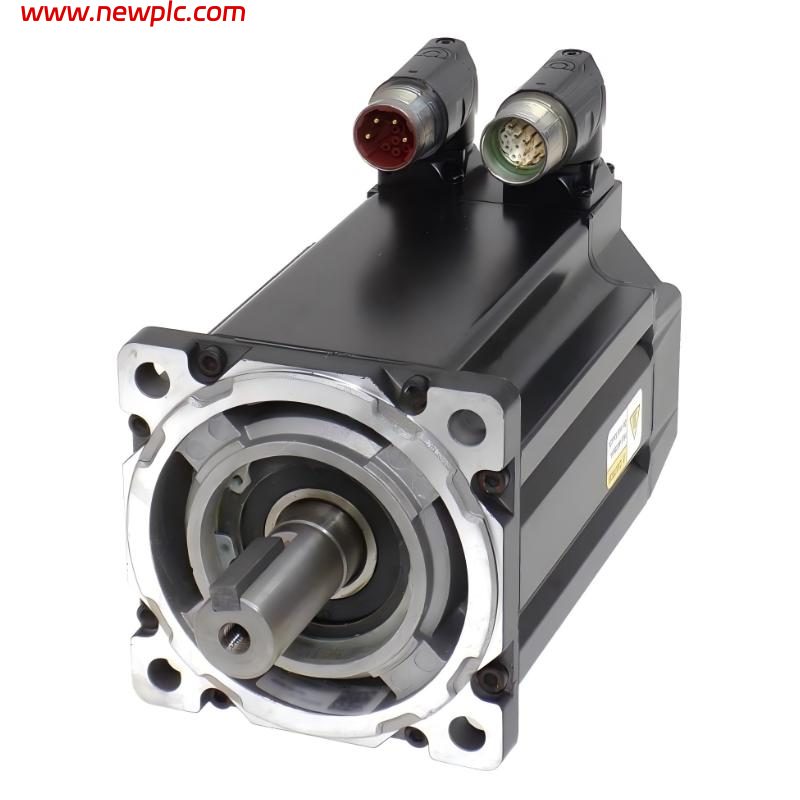

| Product Name | Allen-Bradley MP-Series Low-Inertia Servo Motor |
| Model Number | MPL-B4540F-MJ72AA |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | MPL Series |
| Product Type | AC Brushless Servo Motor |
| Motor Type | Low-Inertia Rotary Servo Motor |
| Voltage Class | 460V AC |
| Frame Size | 130 mm |
| Magnet Stack Length | 101.6 mm (4.0 in.) |
| Rated Speed | 3000 RPM |
| Maximum Speed | 3000 RPM |
| Rated Output Power | Approx. 3.0 kW |
| Continuous Torque | Approx. 12.3 N·m |
| Peak Torque | Approx. 30.9 N·m |
| Rotor Inertia | Approx. 0.0006 kg·m² |
| Feedback Type | Multi-turn High-Resolution Absolute Encoder |
| Feedback Protocol | Hiperface |
| Shaft Type | Keyed Shaft |
| Shaft Seal | No Shaft Seal |
| Brake Option | No Brake |
| Connector Type | SpeedTEC DIN Connector |
| Connector Orientation | Right Angle, 180° Rotatable |
| Mounting Type | IEC Metric Flange Mount |
| Enclosure Rating | IP66 |
| Cooling Method | Natural Convection |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -30°C to 70°C |
| Relative Humidity | 5–95% non-condensing |
| Number of Phases | 3-Phase |
| Compatible Drive Series | Kinetix 2000, Kinetix 300, Kinetix 350, Kinetix 5500, Kinetix 6000, Kinetix 7000, Ultra 3000 |
| Certifications | UL, CE, CSA |
| Dimensions | Approx. 130 × 300 mm |
| Weight | Approx. 11–12 kg |
| Lifecycle Status | Active |
| Application | High-power precision industrial servo motion control |
FAQ
FAQ
Q1: What is the Allen-Bradley MPL-B4540F-MJ72AA used for?
The MPL-B4540F-MJ72AA is a high-performance low-inertia servo motor used in industrial automation systems requiring higher torque output, such as robotics, packaging machinery, material handling, and heavy-duty motion control systems.
Q2: What is the power and torque rating of this motor?
It delivers approximately 3.0 kW rated output power with about 12.3 N·m continuous torque and up to 30.9 N·m peak torque.
Q3: What is the difference between MPL-B4530F and MPL-B4540F?
The main difference is the magnet stack length (40 vs 30). The B4540F has a longer stack, which increases torque and power capacity.
Q4: What type of feedback system does it use?
It uses a multi-turn high-resolution absolute encoder with Hiperface protocol for precise position feedback.
Q5: Does the MPL-B4540F-MJ72AA include a holding brake?
No, this specific model does not include an integrated brake.
Q6: What is the protection rating of this motor?
The motor housing is rated IP66, providing strong resistance to dust and water ingress.
Q7: What are the size and weight of this motor?
It is approximately 130 × 300 mm in size and weighs around 11–12 kg.
Q8: What drives are compatible with this motor?
It is compatible with Allen-Bradley Kinetix 2000/300/350/5500/6000/7000 and Ultra 3000 servo drive platforms.
