Technical Specifications
| Parameter | Specification |
|---|---|

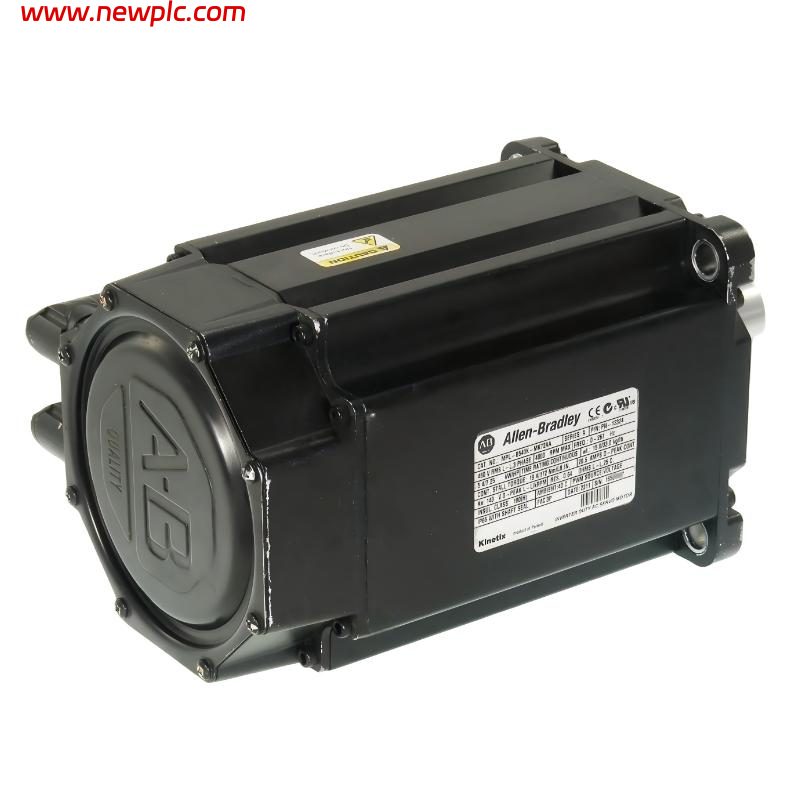

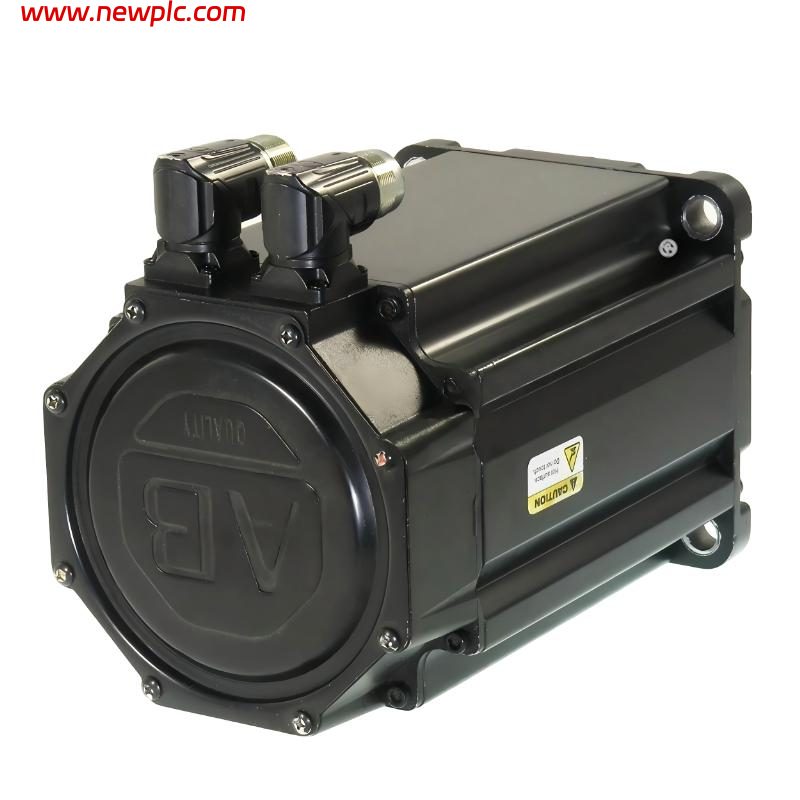

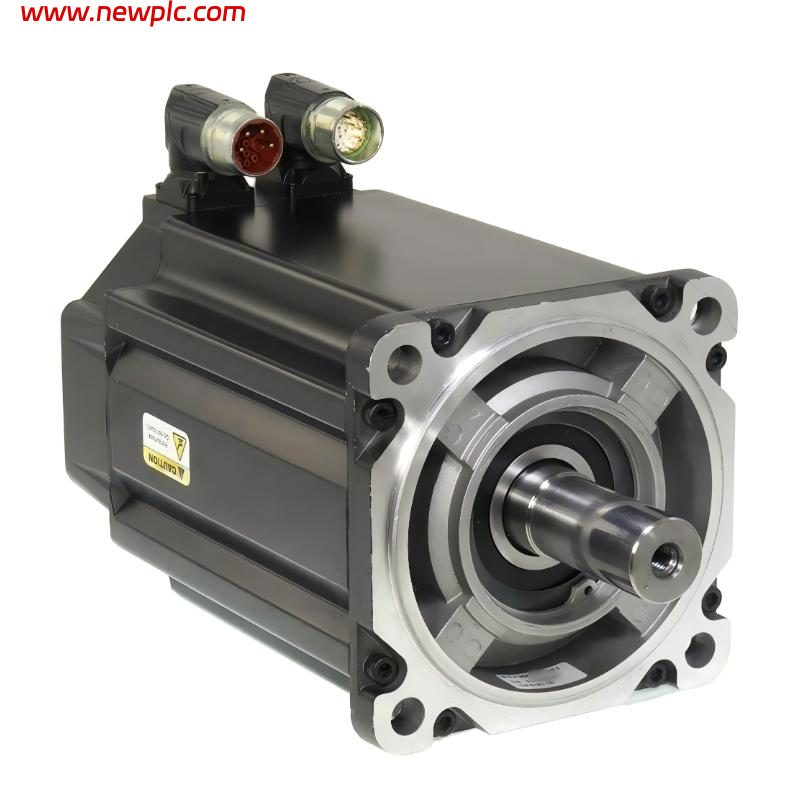

| Product Name | Allen-Bradley MP-Series Low-Inertia Servo Motor |
| Model Number | MPL-B540K-MK72AA |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | MPL Series |
| Product Type | AC Brushless Servo Motor |
| Motor Type | Low-Inertia Rotary Servo Motor |
| Voltage Class | 460V AC |
| Frame Size | 165 mm (Frame 5) |
| Magnet Stack Length | 101.6 mm (4.0 in.) |
| Rated Speed | 4000 RPM |
| Maximum Speed | 4000 RPM |
| Rated Output Power | 5.4 kW |
| Continuous Torque | 19.4 N·m |
| Peak Torque | 48.6 N·m |
| Rotor Inertia | 0.00147 kg·m² |
| Feedback Type | Multi-turn High-Resolution Absolute Encoder |
| Feedback Protocol | Hiperface |
| Shaft Type | Keyless Shaft |
| Shaft Seal | No Shaft Seal |
| Brake Option | No Brake |
| Connector Type | SpeedTEC DIN Connector |
| Connector Orientation | Right Angle, 180° Rotatable |
| Mounting Type | IEC Metric Flange Mount |
| Enclosure Rating | IP50 (up to IP66 with sealed cable/option) |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -30°C to 70°C |
| Relative Humidity | 5–95% non-condensing |
| Compatible Drive Series | Kinetix 2000 / 300 / 350 / 5500 / 6000 / 6200 / 6500 / 7000 / Ultra 3000 |
| Certifications | UL, CE, CSA |
| Dimensions | Approx. 165 × 280 mm |
| Weight | ~15 kg |
| Lifecycle Status | Active |
| Application | High-torque industrial servo motion systems |
FAQ
FAQ
Q1: What is the Allen-Bradley MPL-B540K-MK72AA used for?
The MPL-B540K-MK72AA is used for high-power precision motion control in industrial automation systems such as robotics, packaging machines, material handling systems, and machine tools.
Q2: What is the power and torque rating of this motor?
It provides approximately 5.4 kW rated power, 19.4 N·m continuous torque, and 48.6 N·m peak torque.
Q3: What is the maximum operating speed?
The motor is rated for a maximum speed of 4000 RPM.
Q4: What type of feedback system does it use?
It uses a multi-turn high-resolution absolute encoder with Hiperface protocol for precise position feedback.
Q5: Does the MPL-B540K-MK72AA include a holding brake?
No, this model does not include an integrated holding brake.
Q6: What is the enclosure protection rating?
It is typically IP50 standard, with higher protection possible depending on sealing and cable configuration.
Q7: What drives are compatible with this motor?
It is compatible with Allen-Bradley Kinetix 2000, 300, 350, 5500, 6000, 6200, 6500, 7000, and Ultra 3000 servo drive systems.
Q8: What are the physical size and weight?
The motor is approximately 165 × 280 mm in size and weighs about 15 kg.
