Technical Specifications
| Parameter | Specification |
|---|---|

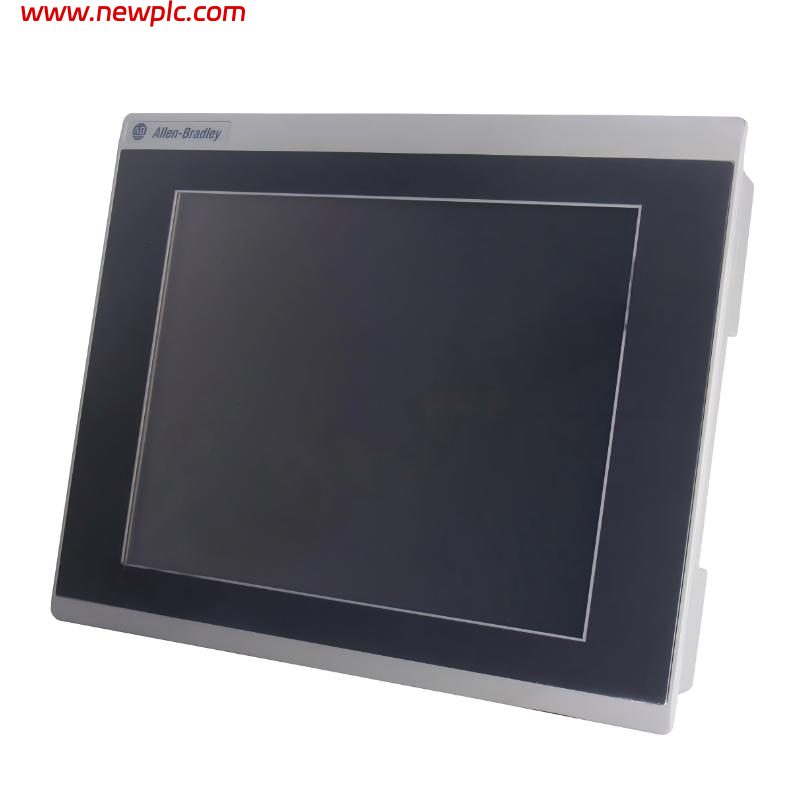

| Product Name | Allen-Bradley PanelView 800 HMI Terminal |
| Model Number | 2711R-T10T |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PanelView 800 |
| Display Size | 10.4 inches |
| Display Type | Color TFT LCD Touchscreen |
| Resolution | 800 × 600 pixels |
| Input Type | Analog Resistive Touchscreen |
| Display Colors | 65K Colors |

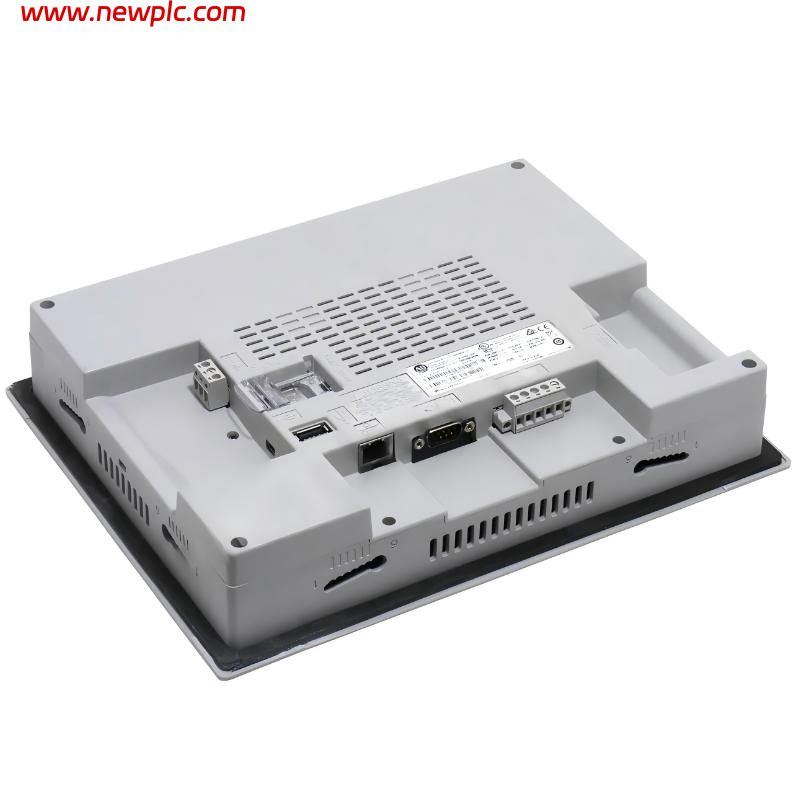

| Communication Ports | Ethernet, RS-232, RS-422/485, USB 2.0 |
| External Storage | microSD Card Slot |
| Processor Speed | 800 MHz |
| Memory | 256 MB RAM / 256 MB Flash |
| Power Supply | 18–32V DC |
| Nominal Voltage | 24V DC |
| Operating System | Windows CE 6.0 |
| Mounting Type | Panel Mount |
| Protection Rating | NEMA 4X, 12, 13 / IP65 Front |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions | Approx. 287 × 225 × 55 mm |
| Weight | Approx. 1.64 kg |
| Application | Industrial HMI and Machine Control Interface |
FAQ
FAQ
Q1: What is the Allen-Bradley 2711R-T10T used for?
The 2711R-T10T is a PanelView 800 HMI terminal designed for industrial machine control, process monitoring, and operator interface applications.
Q2: Does the 2711R-T10T support touchscreen operation?
Yes, the terminal features a 10.4-inch analog resistive touchscreen with a color TFT LCD display for direct operator interaction.
Q3: What is the display resolution of the 2711R-T10T?
This model provides an 800 × 600 pixel SVGA resolution with 65K color support for clear industrial visualization.
Q4: What communication interfaces are available on the 2711R-T10T?
The unit supports Ethernet, RS-232, RS-422/485, USB 2.0, and microSD storage connectivity for industrial automation integration.
Q5: What power input does the 2711R-T10T require?
The terminal operates on 18–32V DC input power, with 24V DC as the standard nominal voltage.
Q6: Which software is compatible with the 2711R-T10T?
Connected Components Workbench software is commonly used for configuration and programming of the PanelView 800 terminal.
Q7: What are the dimensions and weight of the 2711R-T10T?
The approximate dimensions are 287 × 225 × 55 mm, and the unit weighs about 1.64 kg.
Q8: Is the 2711R-T10T suitable for industrial environments?
Yes, the terminal is designed for industrial applications and includes NEMA 4X, 12, 13 and IP65 front-panel protection ratings for resistance to dust and moisture.
