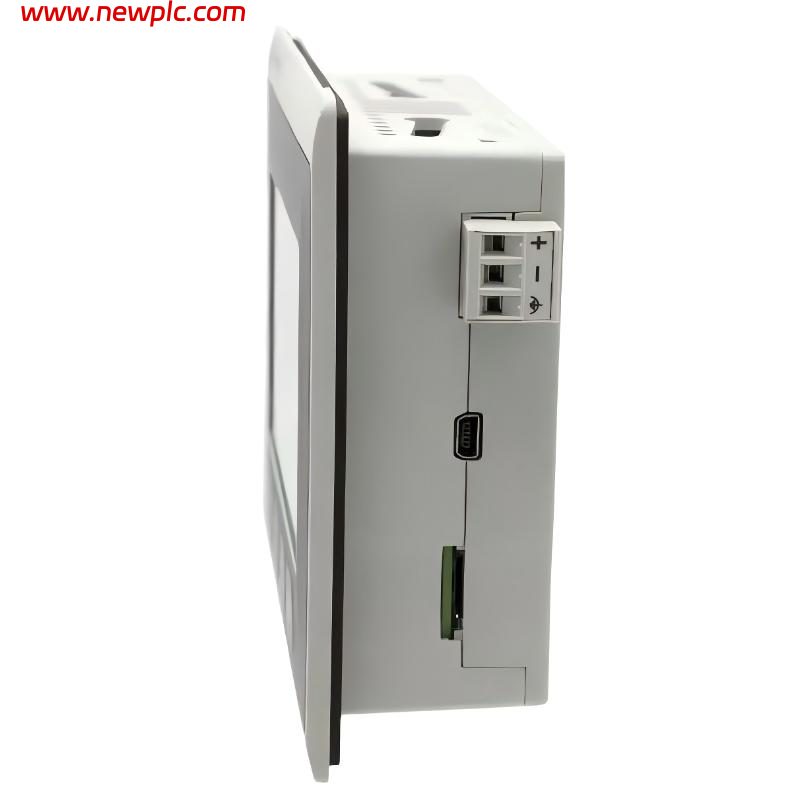

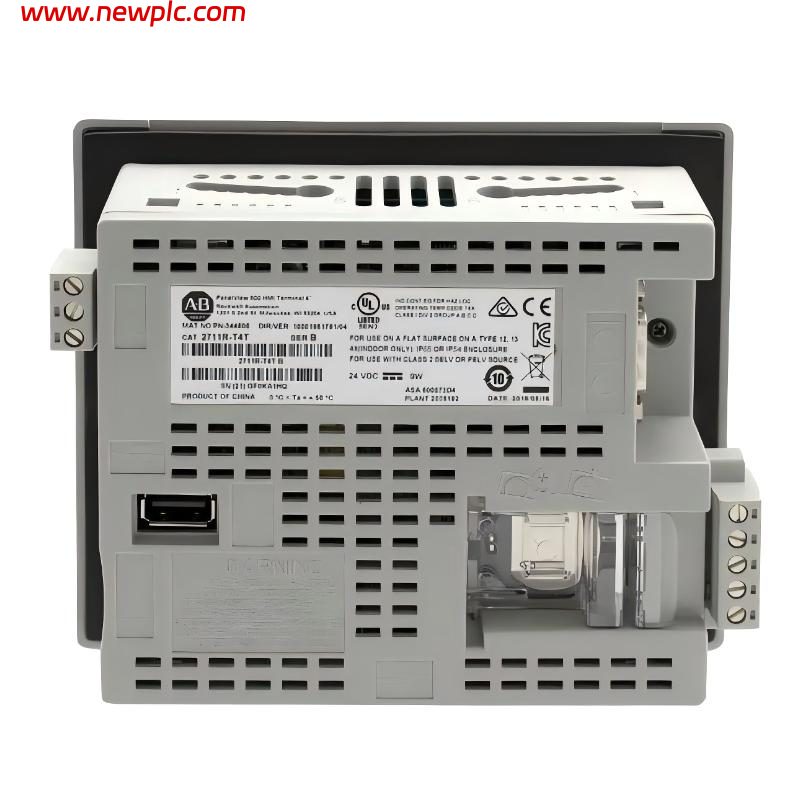

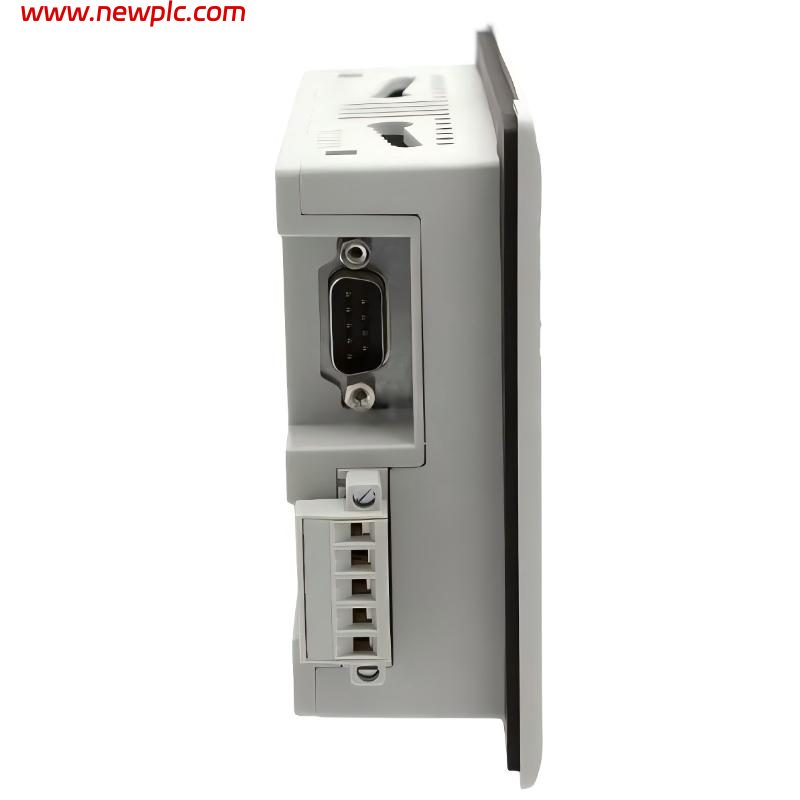

Allen Bradley 2711R-T4T Color TFT LCD Touchscreen

FAQ

Q1: What is the Allen-Bradley 2711R-T4T used for?
The 2711R-T4T is a PanelView 800 HMI terminal designed for industrial machine control, process visualization, and operator interface applications.

Q2: Does the 2711R-T4T support touchscreen operation?
Yes, it features a 4.3-inch resistive touchscreen combined with function keys for operator input.

Q3: What communication interfaces are available on the 2711R-T4T?
It supports Ethernet and serial communication for integration with PLCs and industrial automation systems.

Q4: What is the display resolution of the 2711R-T4T?
The screen resolution is 480 × 272 pixels with widescreen color display support.

Q5: What power supply does the 2711R-T4T require?
The unit operates on 18–32V DC, with 24V DC as the nominal input voltage.

Q6: Does the 2711R-T4T support external storage?
Yes, it supports USB drives and microSD cards up to 32 GB formatted in FAT16 or FAT32.

Q7: Is the 2711R-T4T suitable for harsh environments?
Yes, it has an IP65 front panel rating and NEMA 4X/12/13 enclosure protection for industrial environments.

Q8: What is the difference between touch and keypad input on this model?
This model combines a resistive touchscreen with function keys, allowing both direct screen interaction and physical button control depending on operator preference.
