Technical Specifications
| Parameter | Specification |
|---|---|

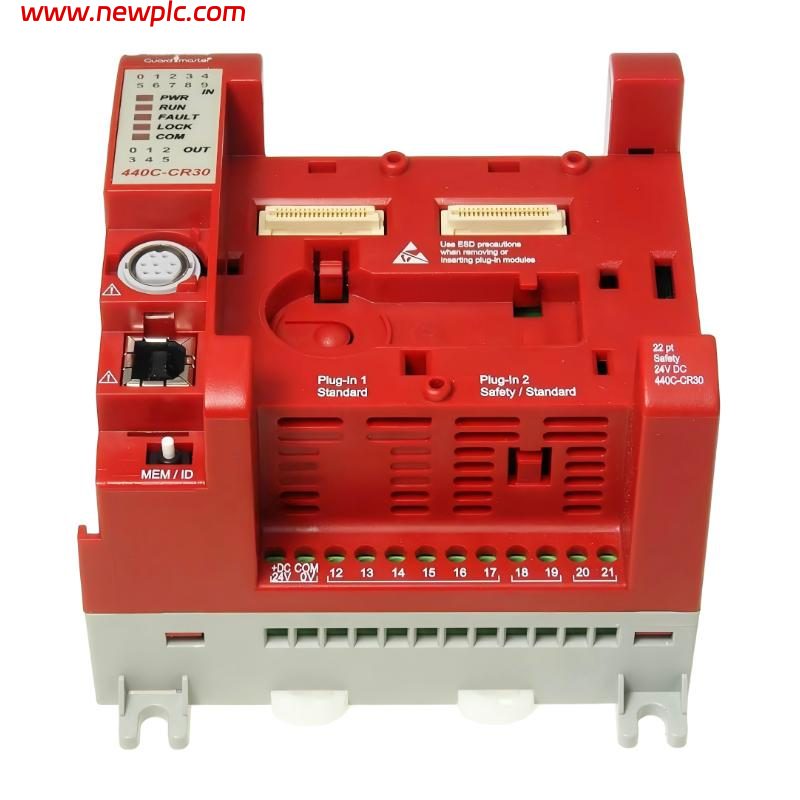

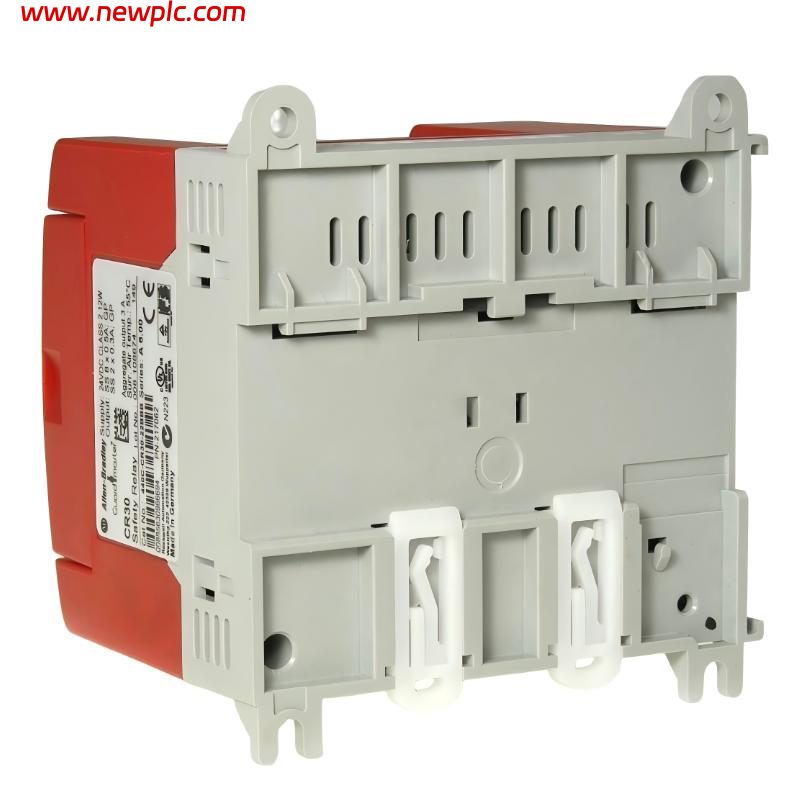

| Product Name | Allen-Bradley Guardmaster Configurable Safety Relay |
| Model Number | 440C-CR30-22BBB |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Guardmaster 440C-CR30 |
| Product Type | Software Configurable Safety Relay |
| Safety I/O | 22 Embedded Safety I/O |
| Safety Outputs | Up to 10 semiconductor outputs |
| Dedicated Outputs | 4 dedicated + 6 configurable outputs |
| Communication Interfaces | USB, RS-232, Modbus |
| Optional Communication | EtherNet/IP Plug-in Module |
| Power Supply | 24V DC |
| Operating Voltage | 20.4–26.4V DC |
| Power Consumption | Approx. 5.28 W |
| Mounting Type | DIN Rail Mount |
| Wiring Type | Screw Terminal Connection |
| Enclosure Rating | IP20 |
| Operating Temperature | -5°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | Up to 90% Non-Condensing |
| Safety Rating | SIL 3, PLe, Category 4 |
| Dimensions | Approx. 100 × 90 × 80 mm |
| Weight | Approx. 0.8–1.0 kg |
| Application | Industrial Safety Monitoring and Machine Safety Control |
FAQ
FAQ
Q1: What is the Allen-Bradley 440C-CR30-22BBB used for?
The 440C-CR30-22BBB is a Guardmaster configurable safety relay used for machine safety monitoring, emergency-stop control, safety gate monitoring, and industrial safety automation applications.
Q2: What safety standards does the 440C-CR30-22BBB support?
The relay supports up to Performance Level e (PLe), Category 4 according to ISO 13849-1, and SIL 3 according to IEC 62061 and IEC 61508.
Q3: How many safety I/O points are available on the 440C-CR30-22BBB?
The unit provides 22 embedded safety I/O points with up to 10 configurable semiconductor safety outputs.
Q4: What communication interfaces are included on the 440C-CR30-22BBB?
The relay includes USB programming, non-isolated RS-232 serial communication, and Modbus support, with optional EtherNet/IP expansion modules available.
Q5: What software is used to configure the 440C-CR30-22BBB?
The relay can be configured using Connected Components Workbench (CCW) software or Studio 5000 Logix Designer software.
Q6: What type of applications is the 440C-CR30-22BBB suitable for?
It is commonly used for monitoring emergency-stop circuits, safety doors, light curtains, two-hand control systems, and other machine safety devices.
Q7: What are the dimensions and weight of the 440C-CR30-22BBB?
The approximate dimensions are 100 × 90 × 80 mm, and the unit weighs about 0.8–1.0 kg depending on installation configuration.
Q8: Is the 440C-CR30-22BBB suitable for industrial environments?
Yes, the relay is designed for industrial automation environments and supports DIN rail installation, IP20 protection, and high-level machine safety applications.
