Technical Specifications
| Parameter | Specification |
|---|---|

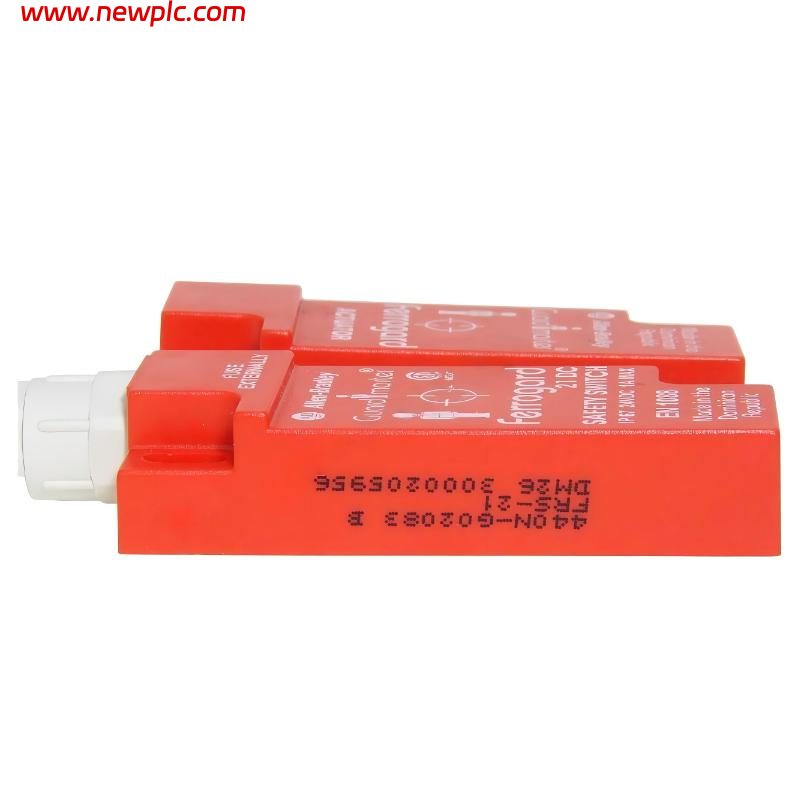

| Product Name | Allen-Bradley Guardmaster Ferrogard Non-Contact Safety Switch |
| Model Number | 440N-G02083 |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Guardmaster 440N Ferrogard |
| Product Type | Magnetic Non-Contact Safety Switch |
| Contact Configuration | 2 NC Safety Contacts + 1 NO Auxiliary Contact |
| Contact Type | Reed Contact |
| Operating Voltage | 24V DC |
| Switching Current | 1 A Max |

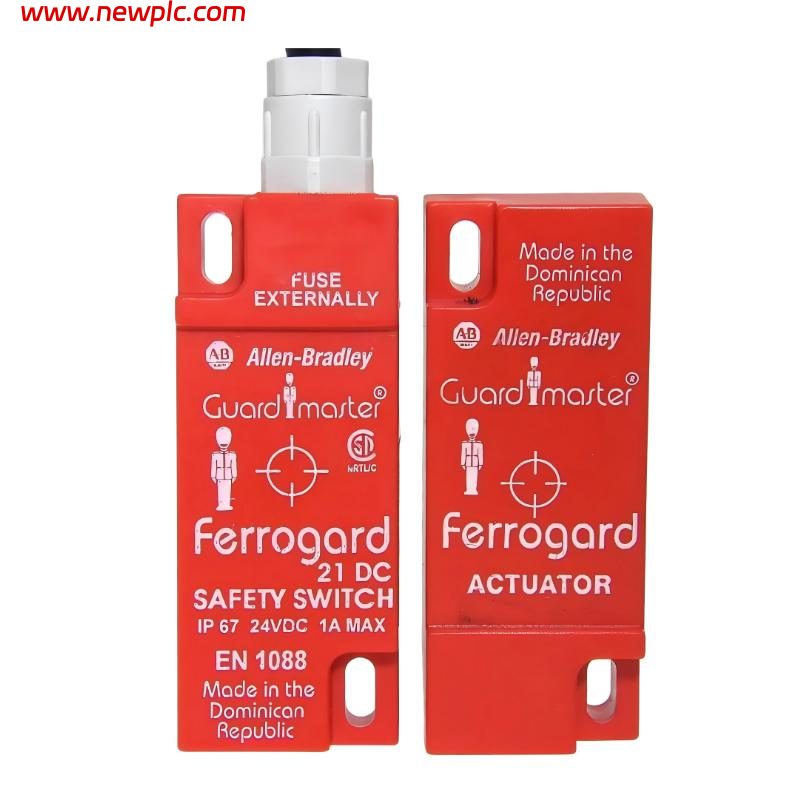

| Actuator Type | Standard Magnetic Actuator |
| Sensing Distance | Approx. 12–15 mm |
| Housing Material | ABS Plastic |

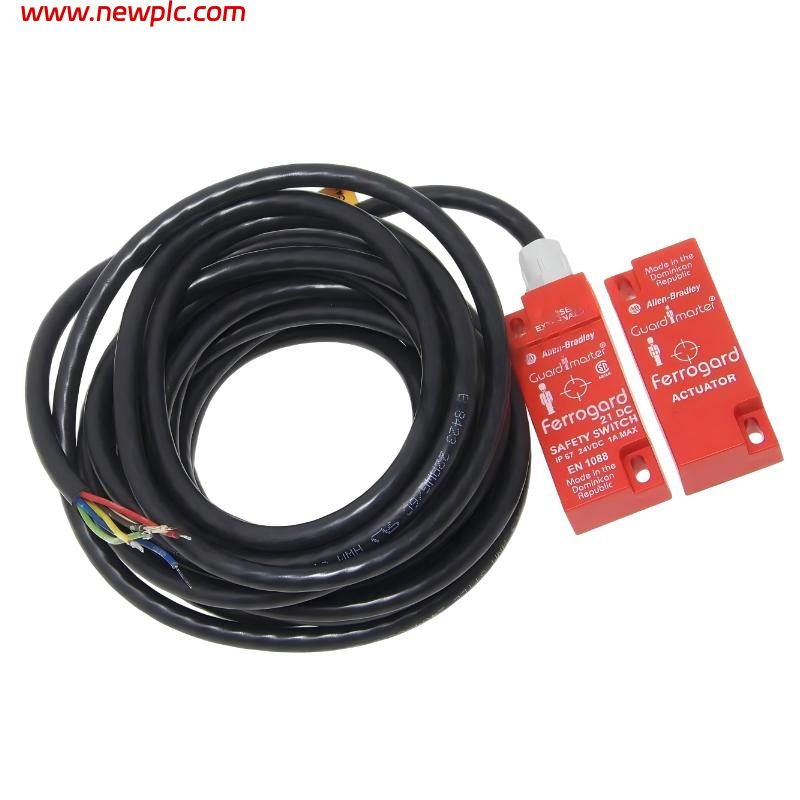

| Connection Type | 6 m PVC Cable |
| Mounting Style | Surface Mount |
| Protection Rating | IP67 / NEMA 6P |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -10°C to 55°C |
| Shock Resistance | 50 g Max |
| Vibration Resistance | 7 m/s² Max |
| Safety Standards | ISO 13849 Category 1, EN 954, NFPA 79 |
| Certifications | CE, UL, cUL |
| Dimensions | Approx. 76 × 30 × 15 mm |
| Weight | Approx. 0.6–0.7 kg |
| Application | Machine Guard Door and Safety Interlock Monitoring |
FAQ
FAQ
Q1: What is the Allen-Bradley 440N-G02083 used for?
The 440N-G02083 is a Guardmaster Ferrogard magnetic non-contact safety switch designed for monitoring machine guard doors and safety access points in industrial automation systems.
Q2: What type of contacts does the 440N-G02083 provide?
This model includes 2 normally closed (NC) safety contacts and 1 normally open (NO) auxiliary contact for safety monitoring and status indication.
Q3: What operating voltage does the 440N-G02083 require?
The switch operates on 24V DC with a maximum switching current of 1 ampere.
Q4: What is the sensing distance of the 440N-G02083?
The magnetic sensing distance is approximately 12–15 mm, depending on installation conditions and actuator alignment.
Q5: Is the 440N-G02083 suitable for harsh industrial environments?
Yes, the switch features an IP67-rated ABS plastic housing that provides protection against dust and temporary water immersion.
Q6: What type of applications commonly use the 440N-G02083?
It is commonly used on sliding doors, hinged guards, lift-off safety gates, and industrial machine access panels where reliable safety interlocking is required.
Q7: What are the dimensions and weight of the 440N-G02083?
The approximate dimensions are 76 × 30 × 15 mm, and the unit weighs around 0.6–0.7 kg depending on cable configuration.
Q8: What are the advantages of a non-contact safety switch like the 440N-G02083?
Non-contact safety switches reduce mechanical wear, tolerate slight door misalignment, and provide long service life in demanding industrial environments.
