Manufacturer：Allen Bradley
Product Number：5069-IB8S

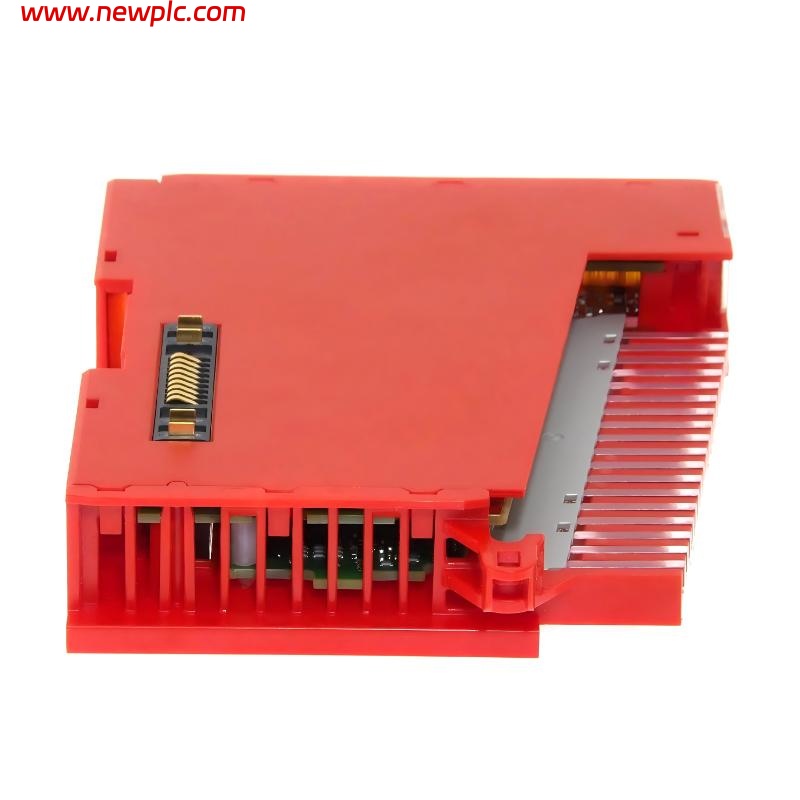

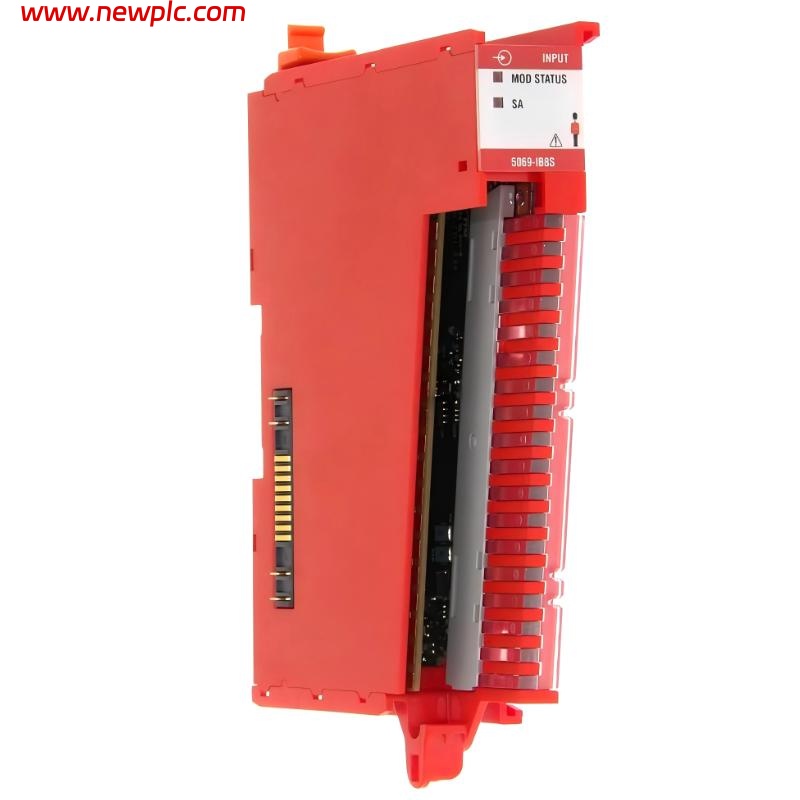

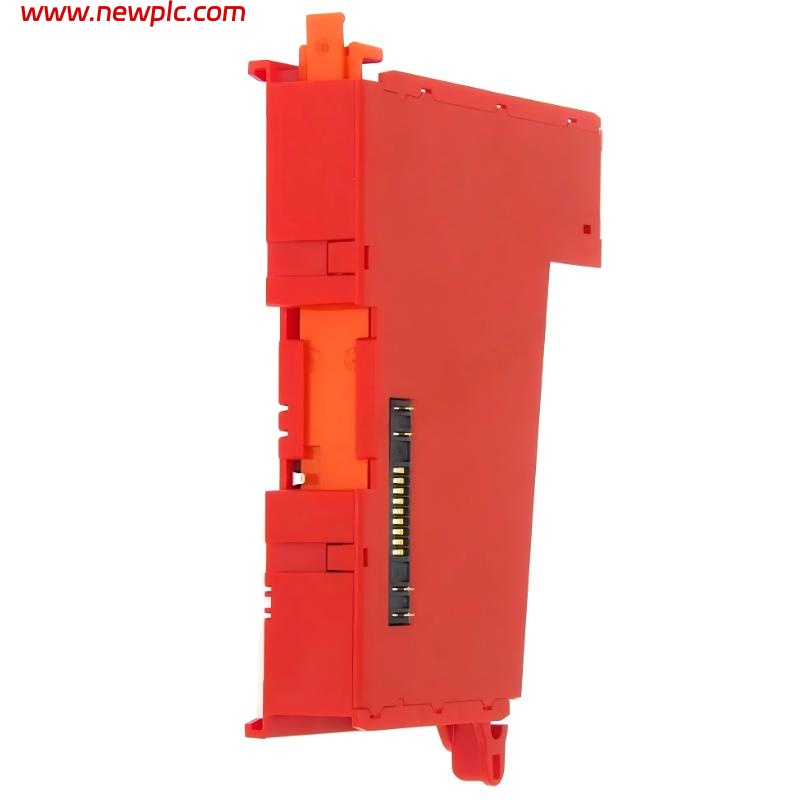

Product Type：Safety Digital Input Module
Origin：USA
Dimensions：138 × 22 × 105 mm
Weight ：0.175 kg
FAQ
FAQ
Q1. What is the main function of the 5069-IB8S?
It is a safety input module used to read and monitor safety-related digital signals in automation systems.
Q2. How many input channels does it have?
It provides 8 independent safety-rated input channels.
Q3. What type of input signal does it accept?
It accepts 24V DC sinking safety input signals.
Q4. Is this module suitable for safety applications?
Yes, it supports up to SIL 3 and PLe Cat. 4 safety standards.
Q5. Does it include any test outputs?
Yes, it includes 2 test outputs and 2 test/muting outputs for diagnostics and safety testing.
Q6. What is the operating voltage range?
It operates with a 10–32V DC input signal range.
Q7. What system is it compatible with?
It is designed for CompactLogix and GuardLogix systems in the Compact 5000 platform.
Q8. What is its physical size and weight?
It measures 138 × 22 × 105 mm and weighs approximately 0.175 kg.
