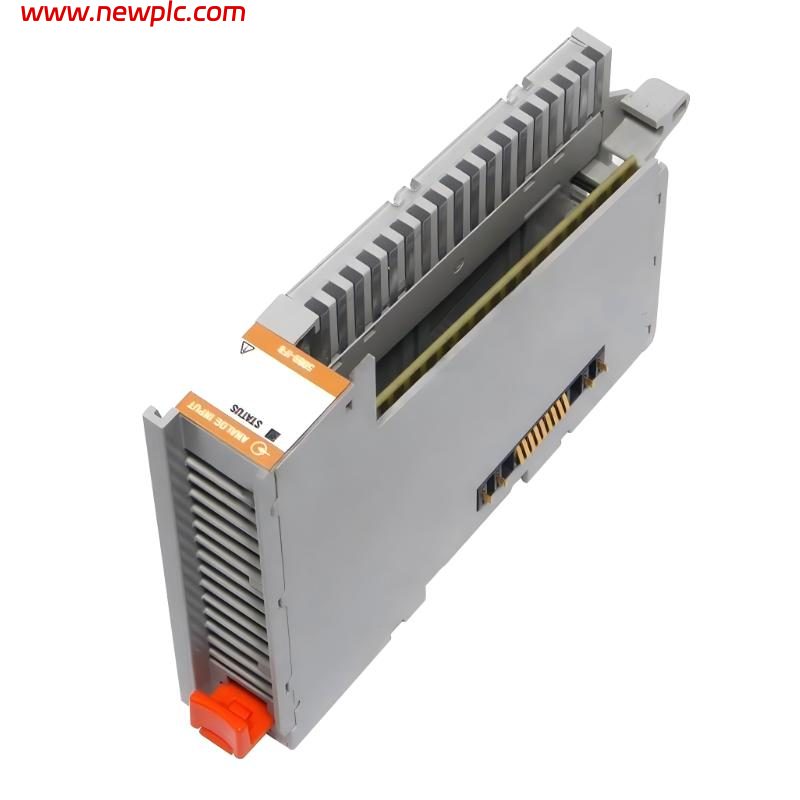

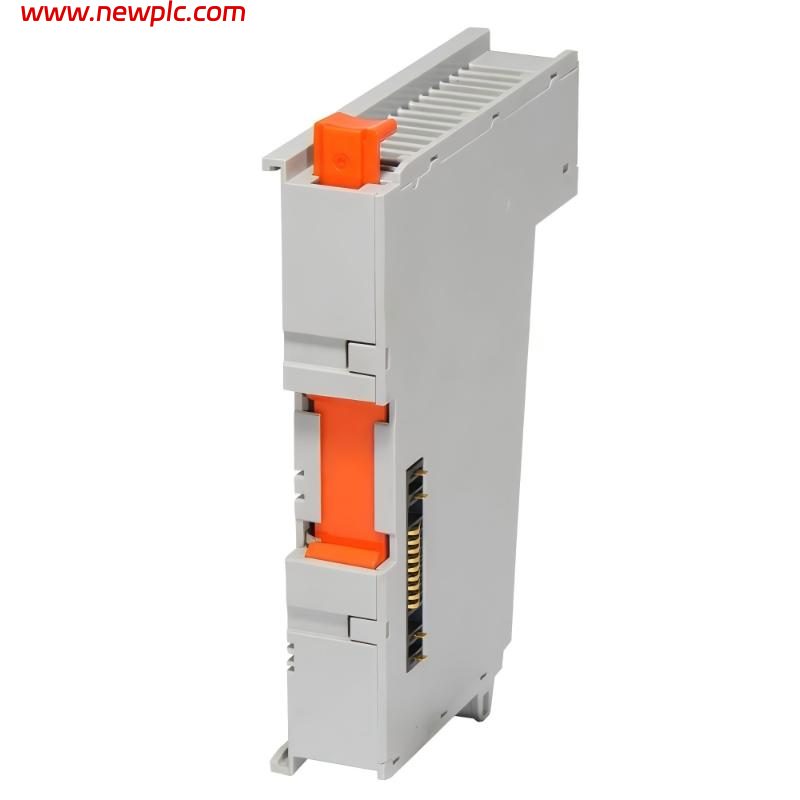

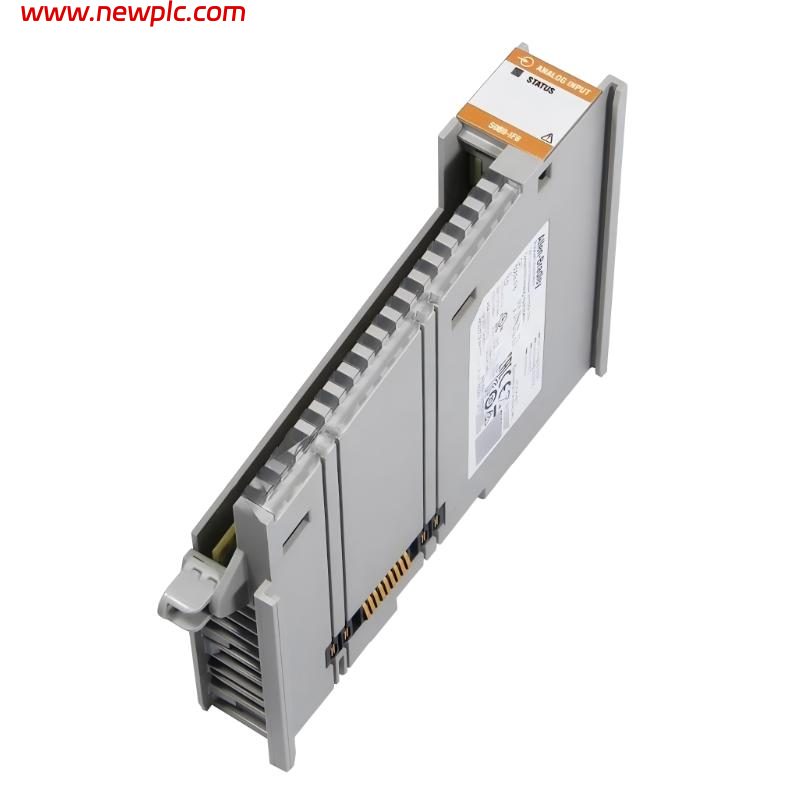

Allen Bradley 5069-IF8 8-Channel Analog Input Module

FAQ

Q1: What is the Allen-Bradley 5069-IF8 used for?
The 5069-IF8 is a Compact 5000 8-channel analog input module used to read voltage and current signals from industrial sensors and transmitters in PLC control systems.

Q2: What types of signals does the 5069-IF8 support?
It supports configurable analog inputs including 0–5V, 0–10V, ±10V voltage signals and 0–20 mA or 4–20 mA current signals.

Q3: How many input channels does the 5069-IF8 have?
The module provides 8 independent differential analog input channels.

Q4: Does the 5069-IF8 support high-resolution measurement?
Yes, it uses a 24-bit sigma-delta conversion system for high-precision signal acquisition.

Q5: What is the wiring type for the 5069-IF8?
It uses removable terminal blocks (RTB), typically 5069-RTB18 screw or spring clamp types.

Q6: What is the power consumption of the module?
The module typically consumes about 2.1–2.4 W depending on operating mode.

Q7: Is the 5069-IF8 suitable for industrial environments?
Yes, it is designed for industrial automation systems with IP20 protection and operation from 0°C to 60°C.

Q8: Can each channel be configured differently?
Yes, each channel can be independently configured for voltage or current input depending on the application requirement.
