Technical Specifications
| Parameter | Specification |
|---|---|

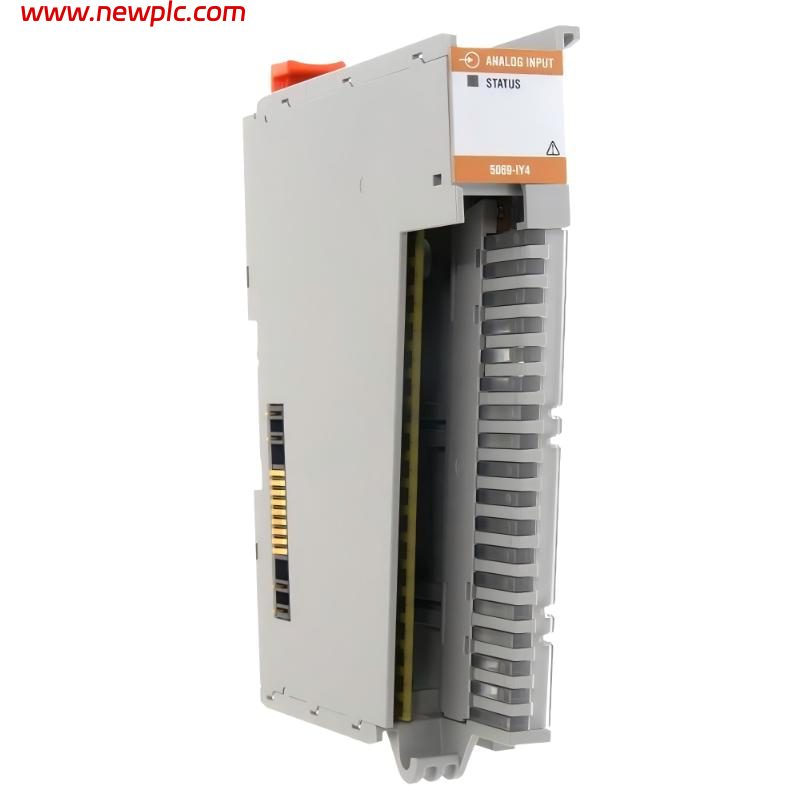

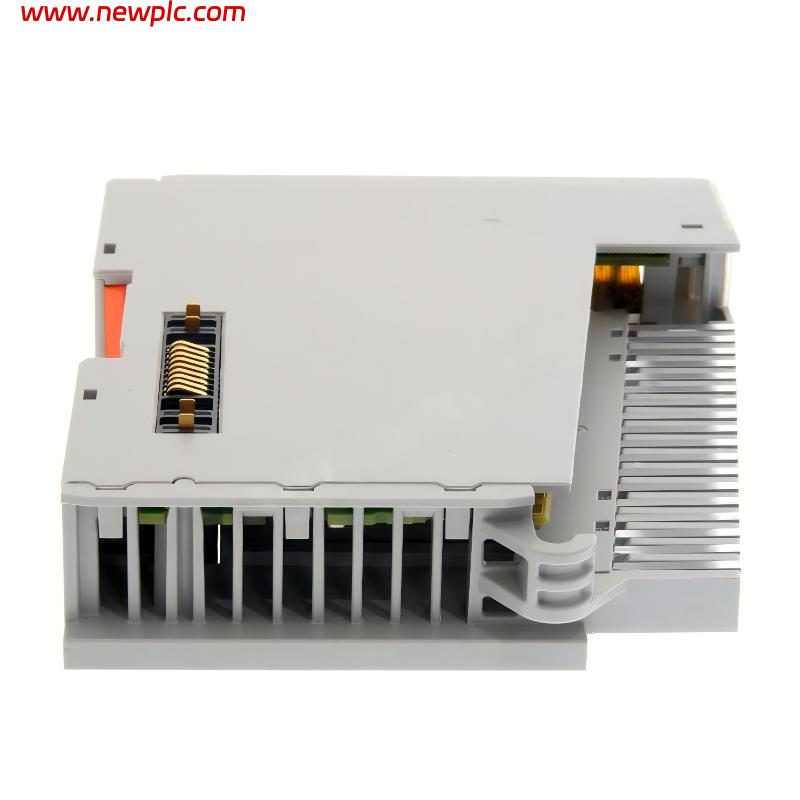

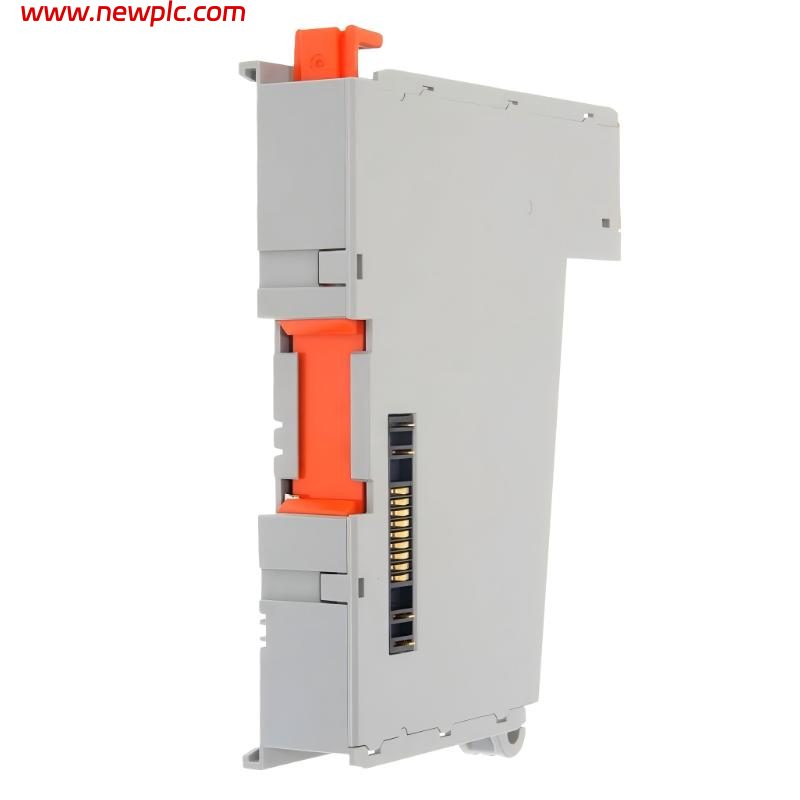

| Product Name | Allen-Bradley Compact 5000 Universal Analog Input Module |
| Model Number | 5069-IY4 |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Compact 5000 I/O |
| Module Type | 4-Channel Universal Analog Input Module |
| Input Types | Voltage / Current / RTD / Thermocouple (Configurable per channel) |
| Number of Channels | 4 Differential Inputs |
| Voltage Input Range | 0–5V, 0–10V, ±10V |
| Current Input Range | 0–20 mA, 4–20 mA |
| Resistance Input | Supported (ohm measurement ranges configurable) |
| RTD Support | 2-wire / 3-wire RTD types supported |
| Thermocouple Support | Multiple types (J, K, T, E, R, S, B, N, etc.) |
| Resolution | 24-bit Sigma-Delta ADC |
| Data Format | IEEE 32-bit floating point |
| Scan Time | ~625 µs per channel |
| Step Response Time | ~7.5 ms (depending on filter settings) |
| Input Overvoltage Protection | ±30V DC |
| Input Impedance | >1 MΩ (voltage), ~90 Ω typical (current mode) |
| Power Dissipation | Approx. 1.8–2.1 W (depends on mode) |
| Backplane Communication | Compact 5000 high-speed backplane |
| Wiring Type | Removable Terminal Block (RTB) |
| RTB Options | 5069-RTB18-SCREW / SPRING, 5069-RTB14CJC-SCREW |
| Isolation Voltage | 250V continuous |
| Mounting Type | DIN Rail |
| Protection Rating | IP20 / Open type |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5–95% non-condensing |
| Dimensions | Approx. 138 × 22 × 105 mm |
| Weight | Approx. 0.175 kg |
| Application | Industrial process measurement (temperature, pressure, analog signals) |
FAQ
FAQ
Q1: What is the Allen-Bradley 5069-IY4 used for?
The 5069-IY4 is a Compact 5000 universal analog input module used to collect process signals such as voltage, current, RTD, and thermocouple inputs in industrial automation systems.
Q2: What makes the 5069-IY4 “universal”?
It can accept multiple signal types—voltage, current, resistance, RTD, and thermocouples—on the same module, with each channel independently configurable.
Q3: How many input channels does it have?
It provides 4 differential analog input channels.
Q4: Does the 5069-IY4 support temperature sensors directly?
Yes, it supports both RTD and thermocouple sensors directly without needing external transmitters.
Q5: What resolution does the module use?
It uses a 24-bit sigma-delta analog-to-digital converter for high-resolution signal acquisition.
Q6: What is the communication system used?
It communicates through the Compact 5000 backplane with Logix controllers such as CompactLogix 5380 and GuardLogix 5380.
Q7: What wiring options are required?
It uses removable terminal blocks such as 5069-RTB18 or 5069-RTB14CJC depending on application (especially for thermocouples requiring cold junction compensation).
Q8: What is a key consideration when using thermocouples with the 5069-IY4?
Correct selection of the CJC-enabled terminal block and proper configuration in Studio 5000 is essential; incorrect RTB selection can cause inaccurate temperature readings.
