Technical Specifications
| Parameter | Specification |
|---|---|

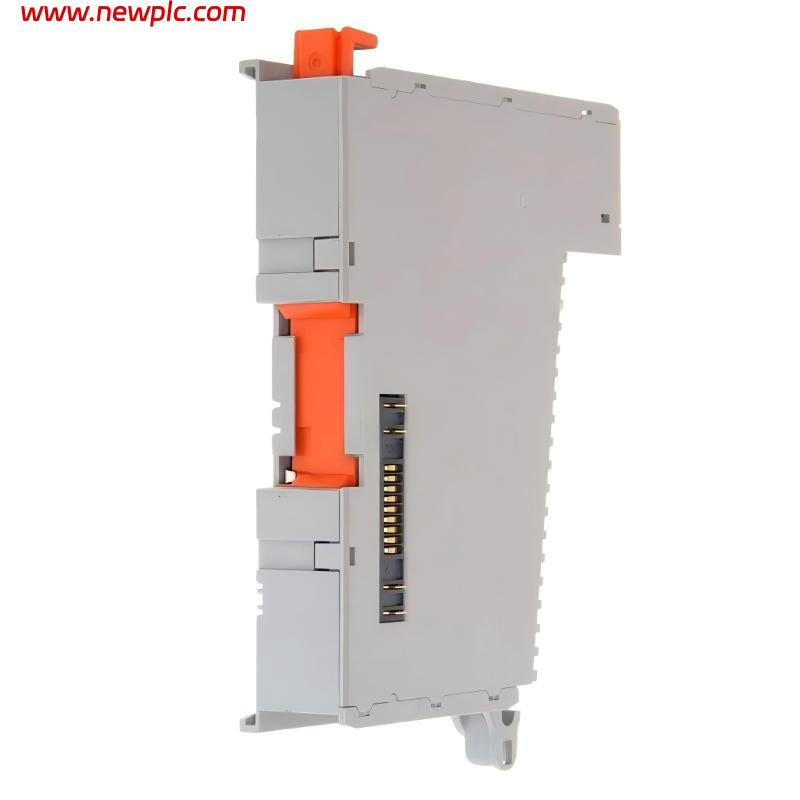

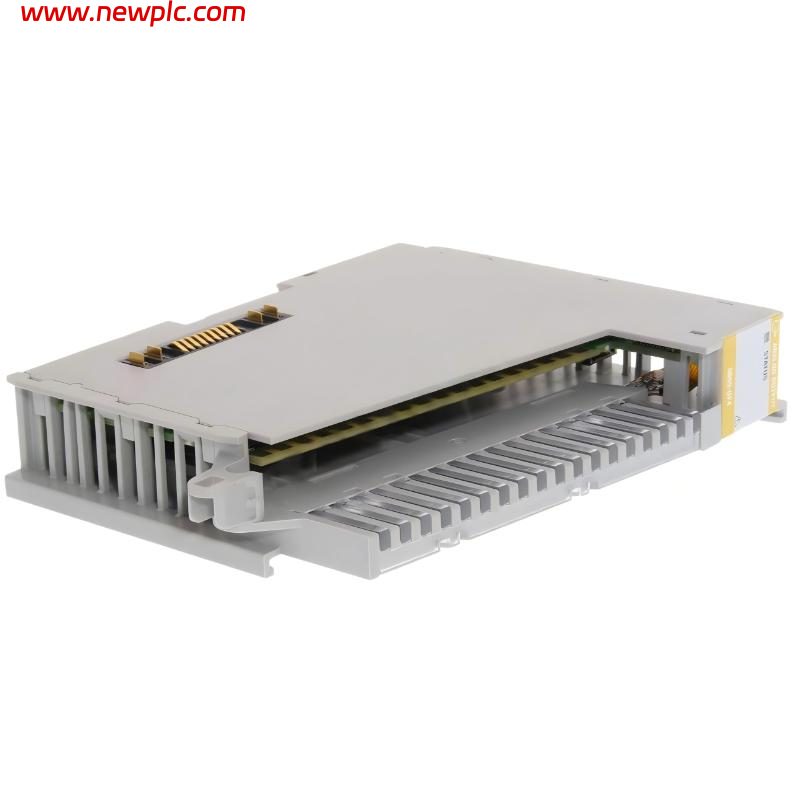

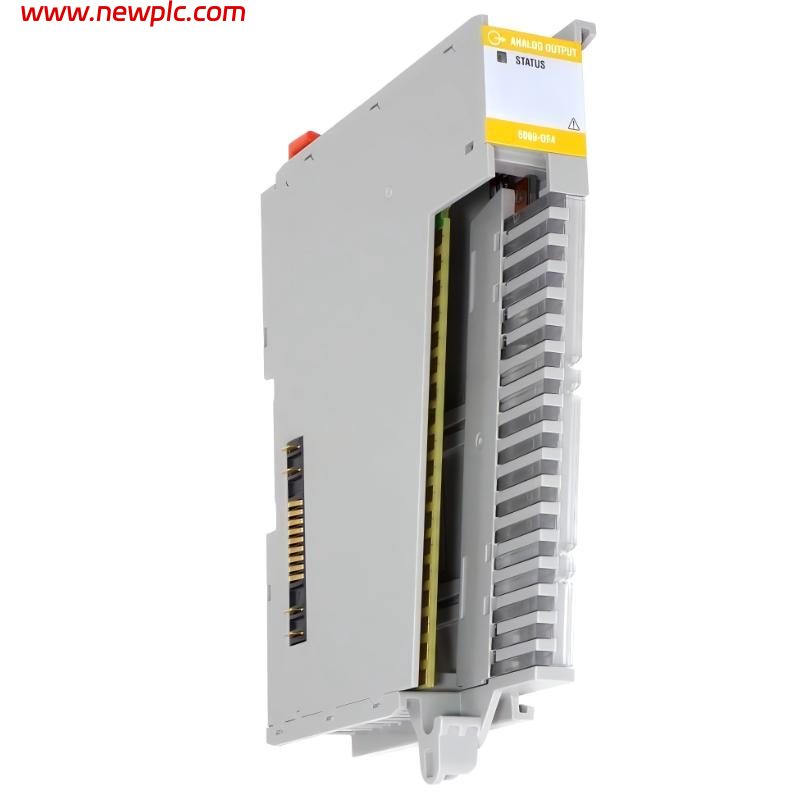

| Product Name | Allen-Bradley Compact 5000 Analog Output Module |
| Model Number | 5069-OF4 |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Compact 5000 I/O |
| Module Type | 4-Channel Analog Output Module |
| Output Types | Voltage / Current (Configurable per channel) |
| Number of Channels | 4 Outputs |
| Voltage Output Range | 0–5V, 0–10V, ±10V |
| Current Output Range | 0–20 mA, 4–20 mA |
| Resolution | 16-bit DAC |
| Conversion Method | R-Ladder DAC (monotonic, no missing codes) |
| Output Update Time | ~25 µs per channel |
| Step Response Time | Voltage: up to 18 µs / Current: ~1 ms |
| Data Format | IEEE 32-bit floating point |
| Output Accuracy | ±0.10% full scale @ 25°C |
| Temperature Drift | Voltage: ~0.30% FS / Current: ~0.50% FS |
| Load Capability | Voltage: ≥1 kΩ / Current: ≤500 Ω |
| Short Circuit Protection | Yes (voltage mode limited electronically) |
| Open Circuit Detection | Current mode supported |
| Power Supply | 18–32V DC |
| MOD Power Consumption | ~75 mA |
| SA Power Consumption | ~150 mA |
| Power Dissipation | Max ~3.3 W |
| Isolation Voltage | 250V continuous |
| Backplane Communication | Compact 5000 high-speed backplane |
| Wiring Type | Removable Terminal Block (RTB) |
| RTB Compatibility | 5069-RTB18-SCREW / SPRING |
| Mounting Type | DIN Rail |
| Protection Rating | IP20 / Open Type |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Dimensions | 138 × 22 × 105 mm |
| Weight | Approx. 0.175 kg |
| Application | Industrial analog signal output (valves, drives, actuators) |
FAQ
FAQ
Q1: What is the Allen-Bradley 5069-OF4 used for?
The 5069-OF4 is a Compact 5000 analog output module used to generate precise voltage or current signals for controlling industrial devices such as valves, drives, and actuators in automation systems.
Q2: How many outputs does the 5069-OF4 have?
It provides 4 independently configurable analog output channels.
Q3: What output types does the module support?
Each channel can be configured for voltage outputs (0–5V, 0–10V, ±10V) or current outputs (0–20 mA, 4–20 mA).
Q4: What is the resolution of the 5069-OF4?
It uses a 16-bit digital-to-analog conversion system for high-precision signal control.
Q5: Can each channel be configured independently?
Yes, each of the four channels can be individually set for voltage or current output depending on application needs.
Q6: What is the typical response time?
Voltage outputs respond in microseconds (up to ~18 µs), while current outputs typically respond in about 1 ms.
Q7: Is the module protected against faults like short circuits?
Yes, voltage outputs include electronic limiting for short-circuit protection, and current mode supports open-circuit detection.
Q8: What systems is the 5069-OF4 compatible with?
It is compatible with CompactLogix 5380 and GuardLogix 5380 systems using the Compact 5000 I/O architecture.
