Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | Allen-Bradley Compact GuardLogix 5380 |

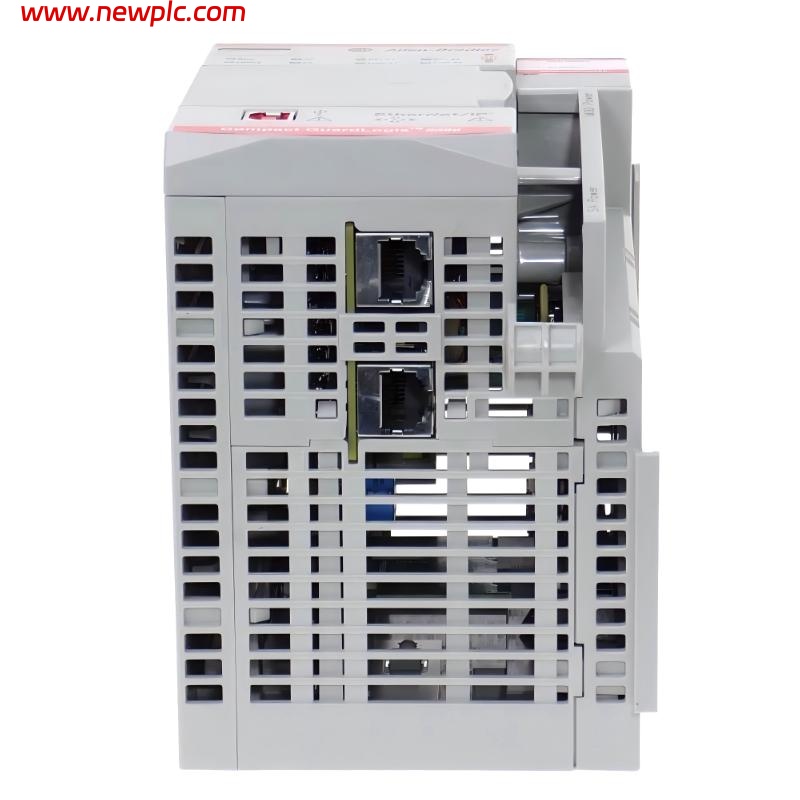

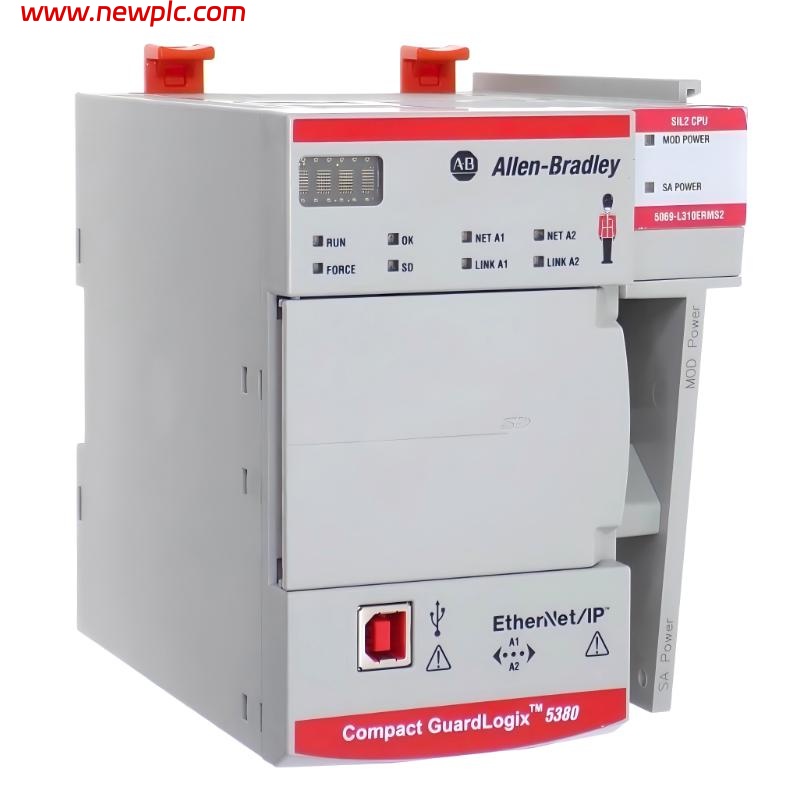

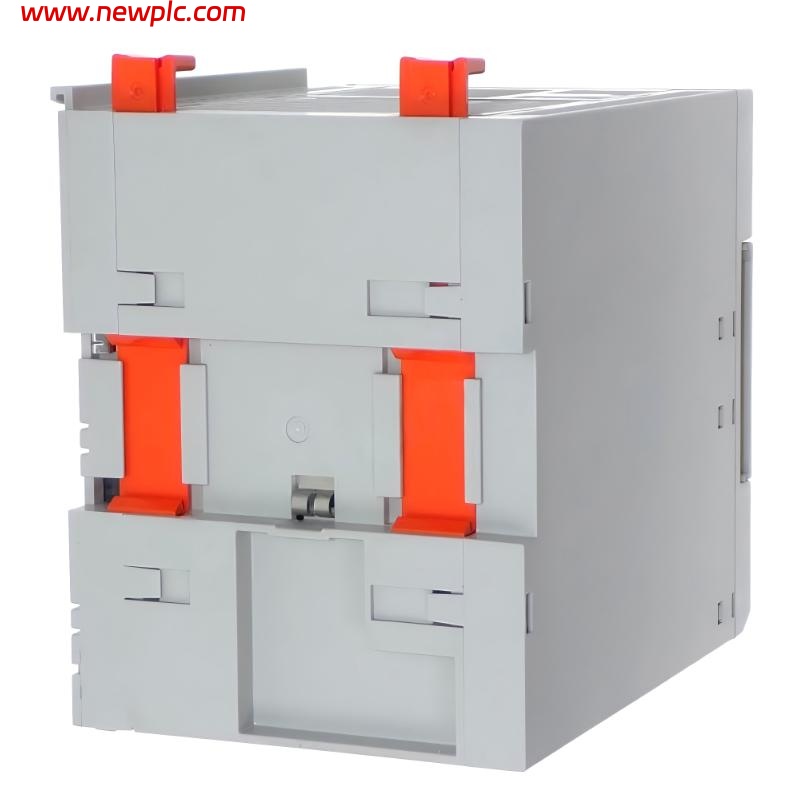

| Model Number | 5069-L310ERMS2 |
| Controller Type | Safety-integrated CompactLogix / GuardLogix controller |
| Safety Classification | SIL 2 / PLd capable |
| Standard Memory | 1.0 MB |
| Safety Memory | 0.5 MB |
| I/O Capacity | Up to 8 Compact 5000 I/O modules |
| EtherNet/IP Nodes | Up to 24 nodes |
| Communication Ports | 2 × Ethernet (1 Gb), 1 × USB |
| Integrated Motion Control | Up to 4 axes (CIP Motion over EtherNet/IP) |
| Programming Software | Studio 5000 Logix Designer |
| Supported Languages | Ladder Diagram, Structured Text, Function Block, SFC |
| Network Topology | Linear, Star, Device Level Ring (DLR) |
| Non-volatile Memory | SD card support |
| Power Supply | 18–32V DC |
| Power Consumption | Approx. 18–32V DC system dependent (~typ. <1 A @ 24V DC) |
| Dimensions | 143.97 × 98.10 × 136.81 mm |
| Weight | Approx. 1.0 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Certifications | SIL 2 safety system compliant |
FAQ
FAQ
Q1. What is the 5069-L310ERMS2 used for?
It is a safety-integrated PLC used for machine control applications requiring SIL 2 functional safety.
Q2. What is the difference between ERMS2 and standard ER models?
ERMS2 includes integrated safety functions (GuardLogix) and safety memory, while ER models are standard controllers without safety logic.
Q3. How much memory does it have?
It provides 1.0 MB of standard application memory and 0.5 MB of safety memory.
Q4. Does it support motion control?
Yes, it supports up to 4 axes of integrated motion over EtherNet/IP.
Q5. How many I/O modules can be connected?
It supports up to 8 Compact 5000 I/O modules.
Q6. What communication interfaces are available?
It has dual Ethernet ports (1 Gb) and one USB port.
Q7. What software is used to program it?
It is programmed using Studio 5000 Logix Designer.
Q8. What applications is it typically used in?
It is used in safety-critical automation systems such as packaging machines, robotics cells, and material handling systems requiring integrated safety control.
