Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | Allen-Bradley CompactLogix 5380 |

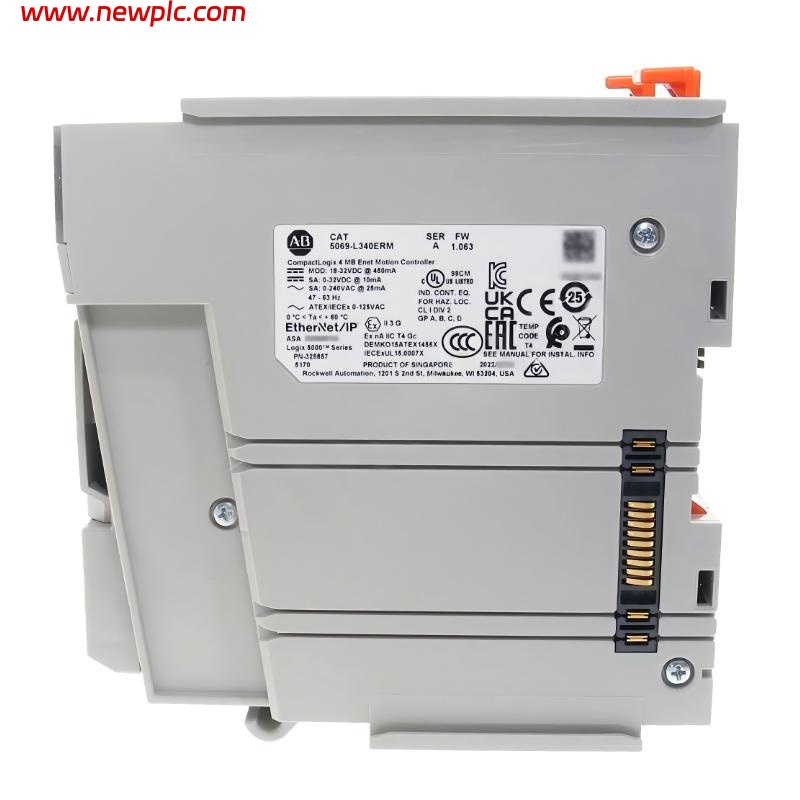

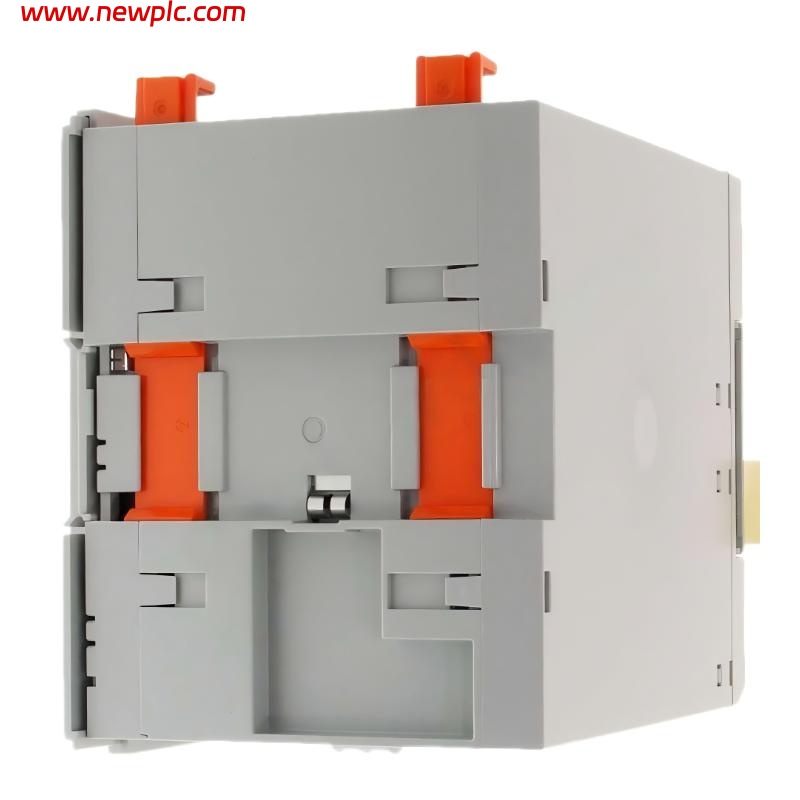

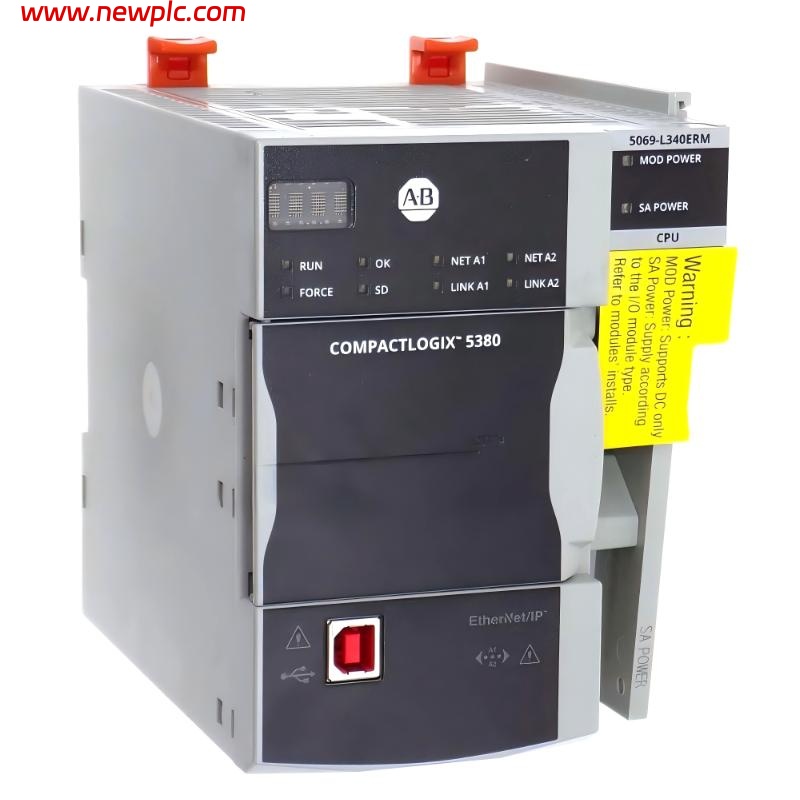

| Model Number | 5069-L340ERM |
| Controller Type | Motion-enabled CompactLogix Ethernet Controller |
| Application Memory | 4 MB |
| Processor | Quad-core industrial processor |
| Communication Ports | 2 × Ethernet (10/100/1000 Mbps), 1 × USB 2.0 |
| EtherNet/IP Nodes | Up to 55 nodes |
| Integrated Motion Control | Up to 20 axes (CIP Motion over EtherNet/IP) |
| I/O Capacity | Up to 31 Compact 5000 I/O modules |
| Network Topologies | Linear, Star, Device Level Ring (DLR) |
| Programming Software | Studio 5000 Logix Designer |
| Supported Languages | Ladder Diagram, Structured Text, Function Block, SFC |
| Power Supply | 18–32V DC |
| Power Consumption | MOD power up to ~9.55 A (system dependent) |
| Non-volatile Memory | SD card support (1784-SD series) |
| Isolation | 300V continuous (Ethernet ports not isolated) |
| Dimensions | 136.81 × 123 × 98.1 mm (W × H × D) |
| Weight | Approx. 0.175 kg (175 g) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
FAQ
FAQ
Q1. What is the 5069-L340ERM used for?
It is a high-performance CompactLogix controller designed for machine automation with integrated motion control.
Q2. How much memory does it have?
It provides 4 MB of application memory for control programs.
Q3. How many motion axes does it support?
It supports up to 20 axes of integrated CIP Motion control.
Q4. How many I/O modules can it support?
It supports up to 31 Compact 5000 I/O modules.
Q5. How many Ethernet nodes are supported?
It supports up to 55 EtherNet/IP nodes for network devices.
Q6. What communication interfaces are available?
It includes two Gigabit Ethernet ports and one USB programming port.
Q7. What software is used for programming?
It is programmed using Studio 5000 Logix Designer.
Q8. What is the weight of this controller?
Approximately 0.175 kg (175 g).
