Technical Specifications
| Parameter | Specification |
|---|---|

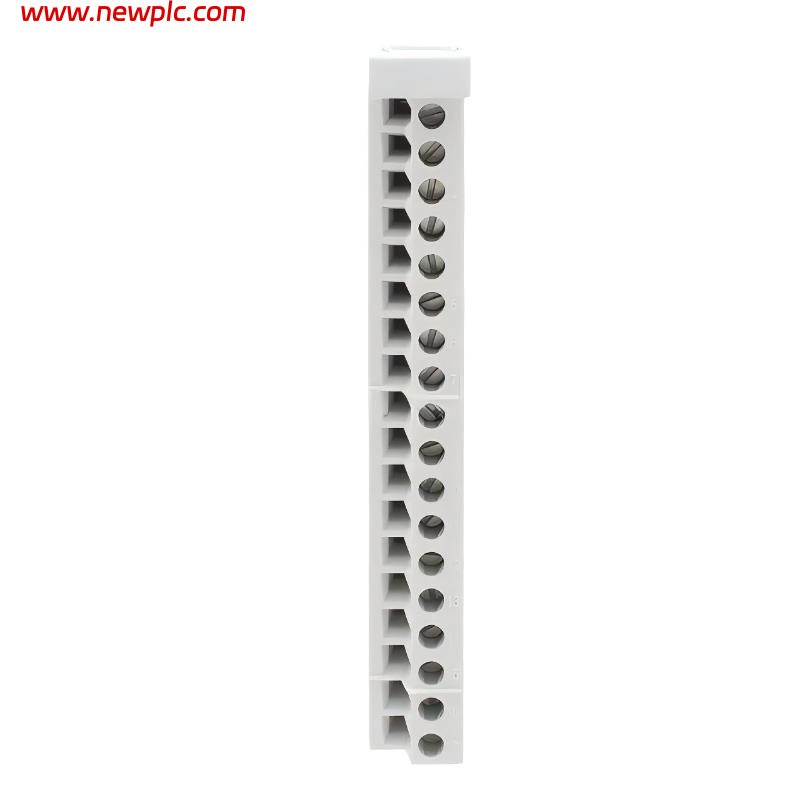

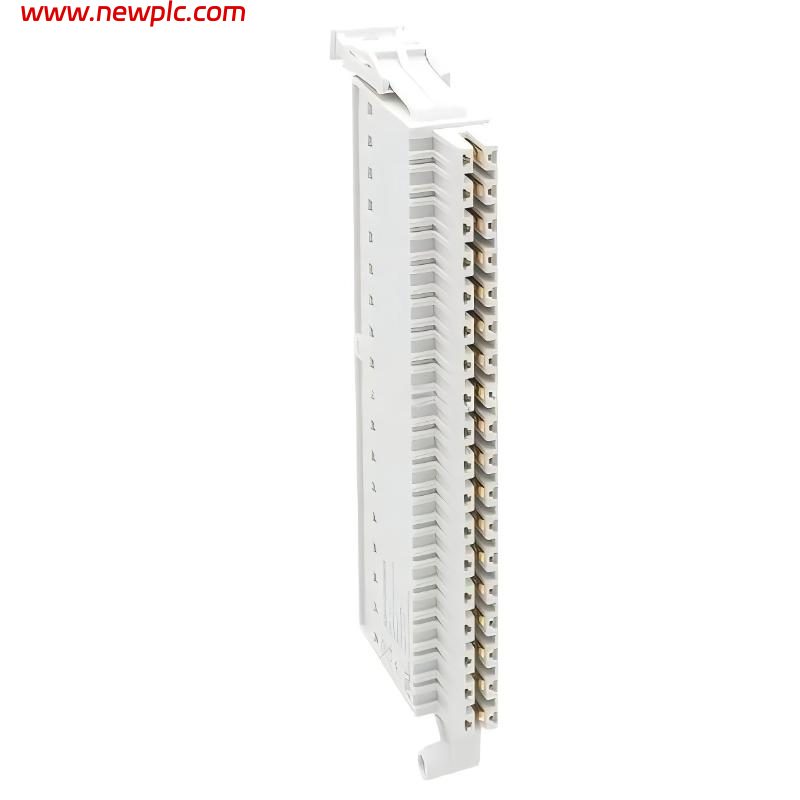

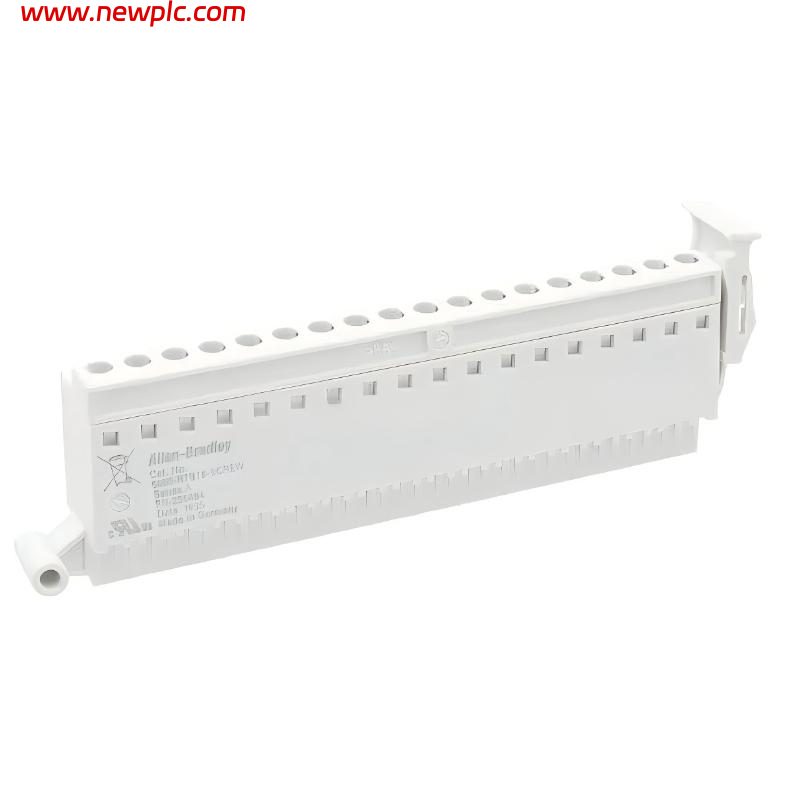

| Product Name | Allen-Bradley Compact 5000 I/O Terminal Block Kit |
| Model Number | 5069-RTB18-SCREW |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Compact 5000 (5069 I/O Platform) |
| Product Type | Removable Terminal Block (RTB), Screw Type |
| Number of Pins | 18 pins |
| Wire Connection Type | Screw-clamp terminals |
| Compatible Wire Size | Typically 22–16 AWG (depends on installation standard) |
| Mounting Interface | Direct mount to 5069 Compact 5000 I/O modules |
| Application Function | Field wiring interface for digital/analog I/O modules |
| Torque Specification | Approx. 0.4 N·m tightening torque (typical for 5069 RTB family) |
| Material | Industrial-grade insulated plastic housing with metal clamp terminals |
| Protection Rating | IP20 (installed within enclosure system) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5–95% non-condensing |
| Certifications | CE, UL (system dependent) |
| Dimensions | Approx. 138 × 22 × 105 mm |
| Weight | Approx. 0.07–0.19 kg |
| Installation Type | Tool-assisted screw termination |
| Application | Electrical termination for CompactLogix 5380 / Compact 5000 I/O systems |
FAQ
FAQ
Q1: What is the Allen-Bradley 5069-RTB18-SCREW used for?
The 5069-RTB18-SCREW is a removable terminal block used to provide secure field wiring connections for Compact 5000 I/O modules in CompactLogix and GuardLogix systems.
Q2: Why is the 5069-RTB18-SCREW required in Compact 5000 systems?
Compact 5000 I/O modules do not include built-in wiring terminals, so RTBs like the 5069-RTB18-SCREW are required to physically connect field devices to the module.
Q3: How many connections does this terminal block support?
It provides 18 screw-type terminal positions for wiring field signals.
Q4: What type of wiring is supported?
It supports standard industrial copper wiring, typically in the 22–16 AWG range depending on installation requirements.
Q5: Is this terminal block reusable?
Yes, it is reusable and can be removed and reinstalled when replacing or servicing I/O modules.
Q6: What systems is it compatible with?
It is designed for use with Allen-Bradley Compact 5000 I/O modules in CompactLogix 5380, GuardLogix 5380, and related architectures.
Q7: Does the 5069-RTB18-SCREW carry signals or power itself?
No, it is a passive component; it only provides mechanical and electrical termination between field wiring and the I/O module.
Q8: What happens if the wrong RTB is installed?
Incorrect RTB selection can lead to wiring mismatch, signal failure, or inability to properly seat the I/O module in the system.
