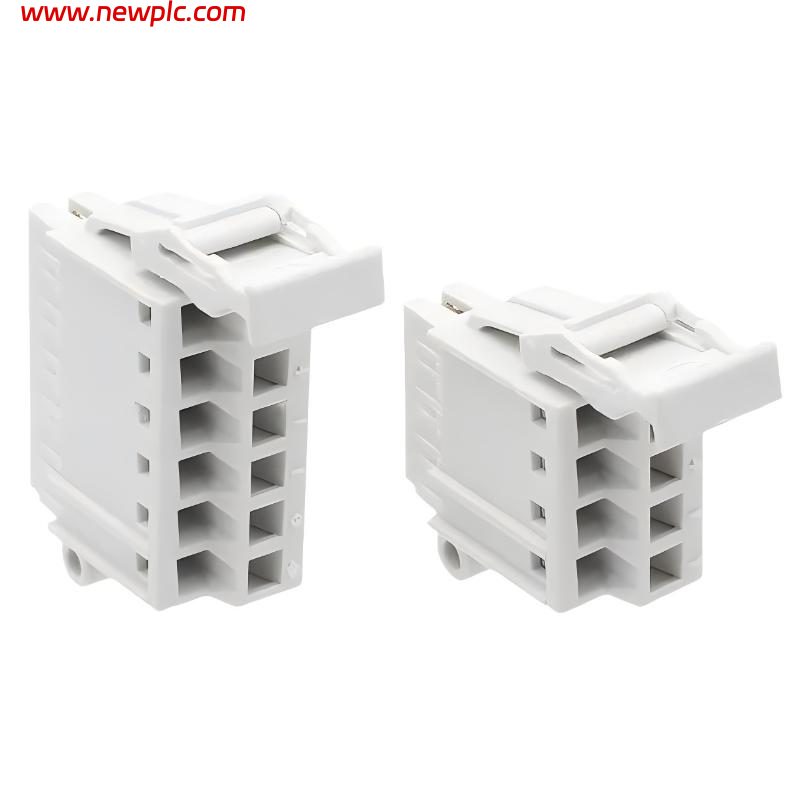

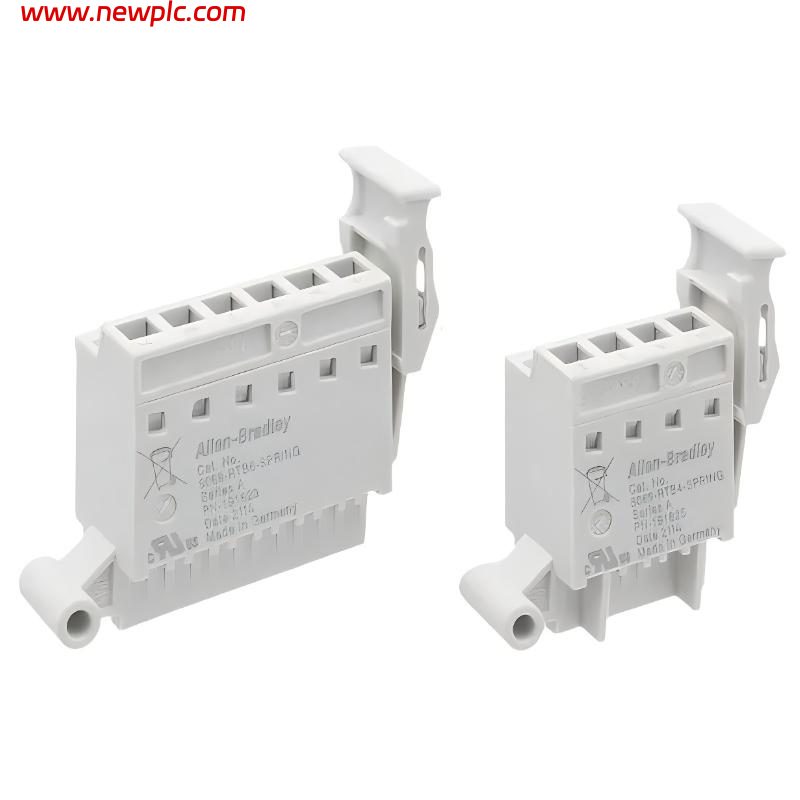

Allen Bradley 5069-RTB64-SPRING Removable Terminal Block (RTB) Kit

FAQ

Q1: What is the Allen-Bradley 5069-RTB64-SPRING used for?
The 5069-RTB64-SPRING is a Compact 5000 removable spring terminal block kit used to connect field power wiring to CompactLogix 5380 and 5069 I/O systems.

Q2: What terminal blocks are included in the 5069-RTB64-SPRING kit?

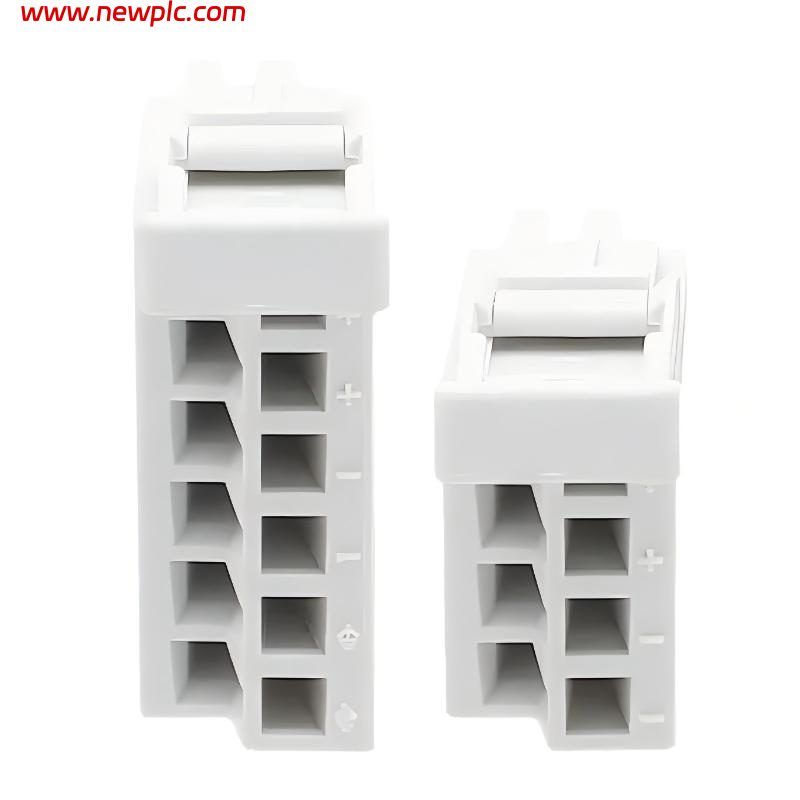

The kit includes one 4-pin spring terminal block and one 6-pin spring terminal block for Compact 5000 power connections.

Q3: What is the advantage of spring-type terminals?
Spring terminals provide vibration-resistant wiring connections, faster installation, and reduced maintenance compared to traditional screw terminals.

Q4: Which systems are compatible with the 5069-RTB64-SPRING?
It is designed for CompactLogix 5380, GuardLogix 5380, and Allen-Bradley 5069 Compact 5000 I/O systems.

Q5: What wire sizes are supported by the 5069-RTB64-SPRING?
The terminal block supports copper conductors typically ranging from 22 to 16 AWG.

Q6: Is the 5069-RTB64-SPRING reusable?
Yes, the removable terminal block design allows the RTB to be disconnected and reused during module replacement or maintenance procedures.

Q7: What are the dimensions and weight of the 5069-RTB64-SPRING?
The approximate dimensions are 138 × 22 × 105 mm, and the weight is about 0.175 kg.

Q8: What is the difference between the 5069-RTB64-SPRING and 5069-RTB64-SCREW?
The SPRING version uses spring-clamp terminals for tool-assisted quick wiring, while the SCREW version uses traditional screw-clamp connections preferred in some industrial installations.
