Technical Specifications
| Parameter | Specification |
|---|---|

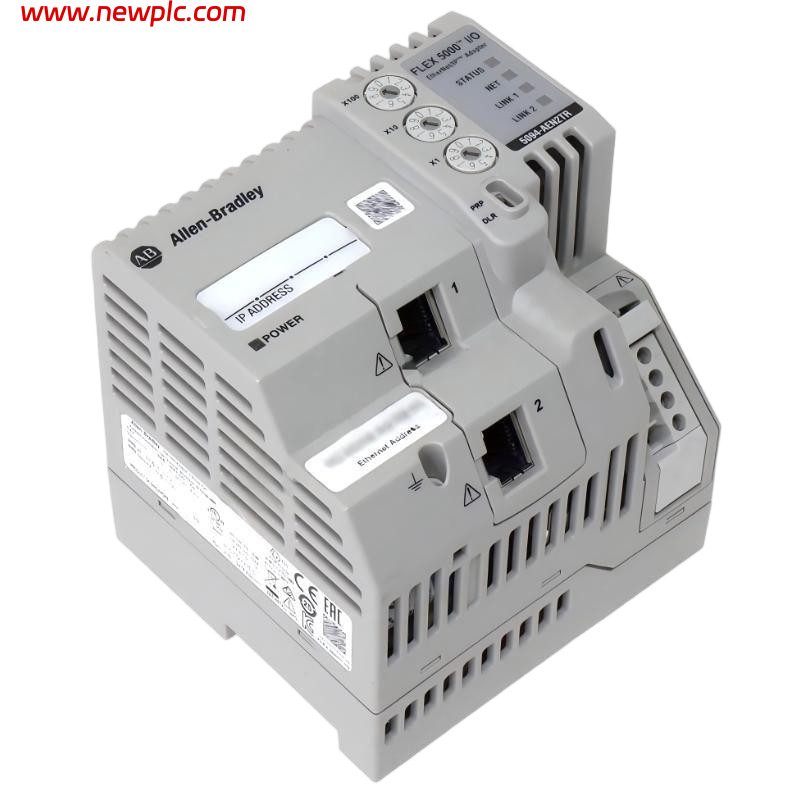

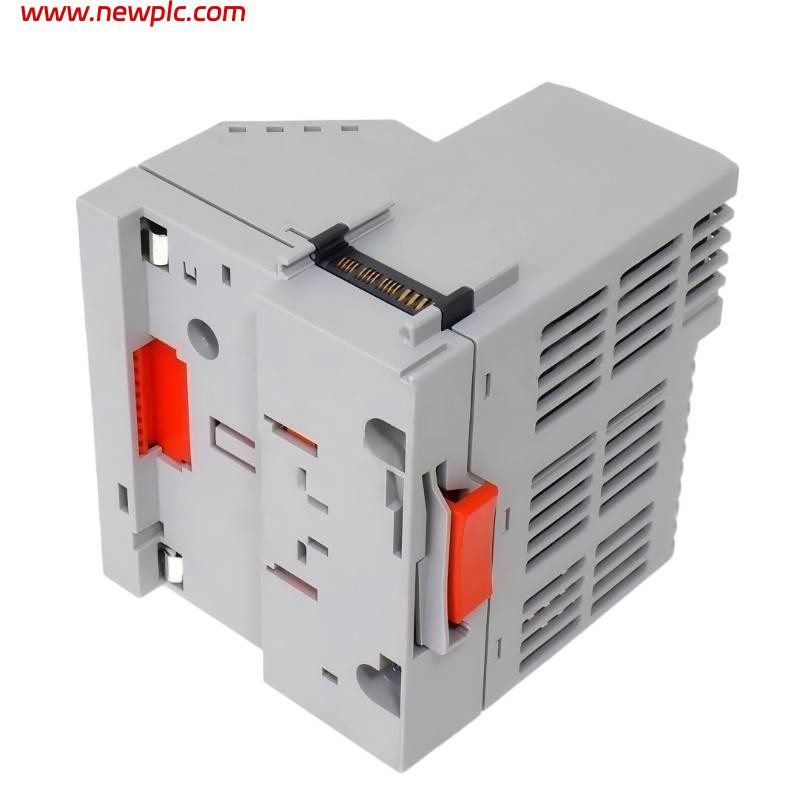

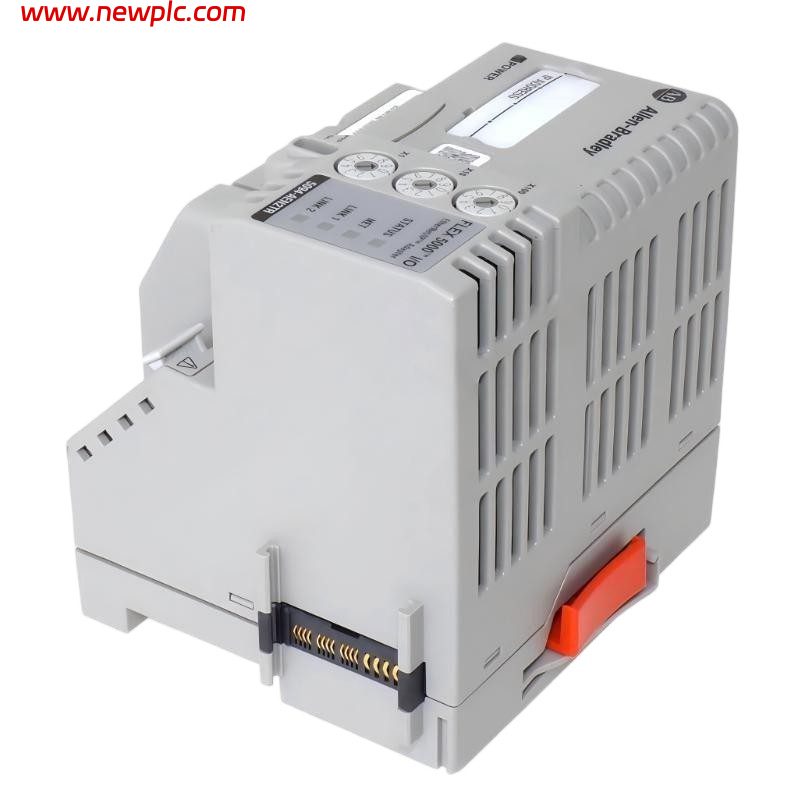

| Product Name | Allen-Bradley FLEX 5000 EtherNet/IP Adapter |
| Model Number | 5094-AEN2TR |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | FLEX 5000 I/O |
| Product Type | EtherNet/IP Communication Adapter |
| Communication Protocol | EtherNet/IP |
| Ethernet Ports | 2 × RJ45 Gigabit Ethernet Ports |
| Transmission Speed | 10/100/1000 Mbps |
| Network Topology | Linear, Device Level Ring (DLR) |
| DLR Supervisor Capability | Supported |
| USB Port | 1 × USB Configuration Port |
| Supported I/O Modules | Up to 31 FLEX 5000 I/O Modules |
| Power Supply | 18–32V DC |
| Power Consumption | Approx. 450 mA @ 24V DC |
| Power Dissipation | Approx. 10 W |
| Isolation Voltage | 250V Continuous |
| Mounting Type | DIN Rail Mount |
| Enclosure Type | Open Style |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Certifications | CE, UL, CSA, ATEX |
| Dimensions | Approx. 153 × 85 × 150 mm |
| Weight | Approx. 0.55–0.70 kg |
| Application | Distributed Industrial I/O Communication |
FAQ
FAQ
Q1: What is the Allen-Bradley 5094-AEN2TR used for?
The 5094-AEN2TR is a FLEX 5000 EtherNet/IP adapter used to connect distributed FLEX 5000 I/O modules to Logix-based industrial automation systems over Ethernet networks.
Q2: How many Ethernet ports does the 5094-AEN2TR have?
The adapter includes two integrated RJ45 Ethernet ports supporting linear and Device Level Ring (DLR) topologies.
Q3: What communication speeds are supported by the 5094-AEN2TR?
It supports 10 Mbps, 100 Mbps, and 1 Gbps Ethernet communication speeds.
Q4: How many FLEX 5000 modules can be connected to this adapter?
The adapter supports connection of up to 31 FLEX 5000 I/O modules within a distributed I/O system.
Q5: Does the 5094-AEN2TR support redundant ring networks?
Yes, it supports Device Level Ring (DLR) functionality for improved industrial network reliability.
Q6: What controllers are compatible with the 5094-AEN2TR?
It is compatible with CompactLogix and ControlLogix systems using Studio 5000 and EtherNet/IP communication.
Q7: What are the dimensions and weight of the 5094-AEN2TR?
The approximate dimensions are 153 × 85 × 150 mm, and the unit weighs about 0.55–0.70 kg.
Q8: What industrial applications commonly use the 5094-AEN2TR?
The adapter is widely used in machine automation, process control, distributed I/O systems, and high-speed industrial Ethernet applications.
